Machinery Platform Fabrication

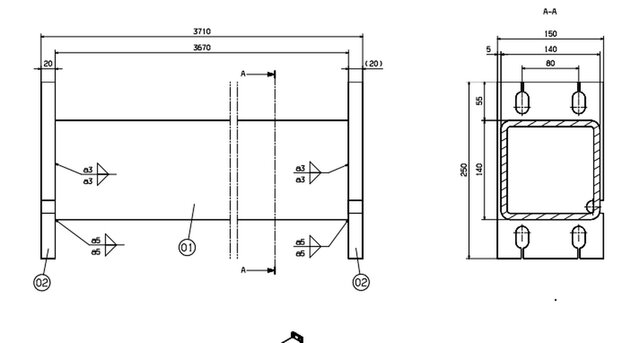

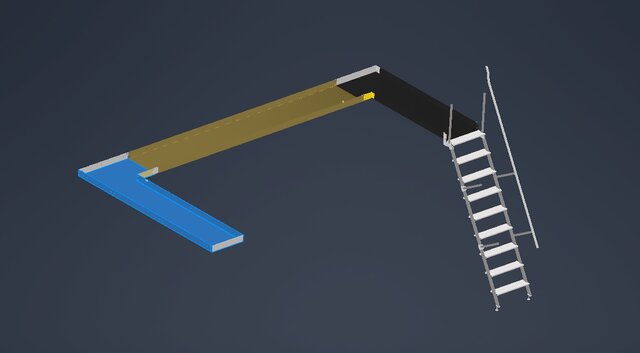

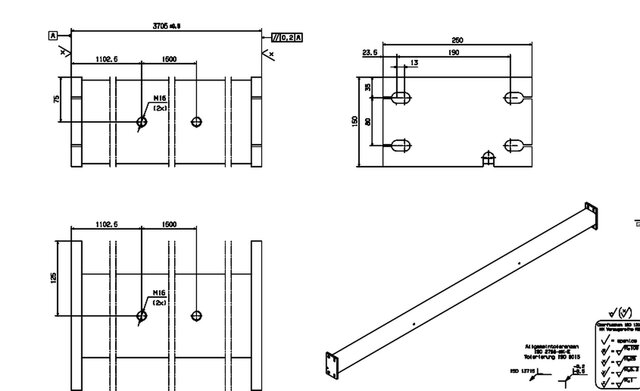

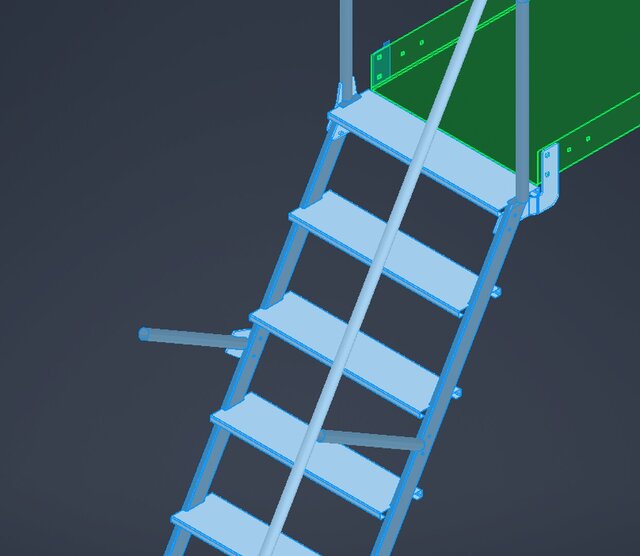

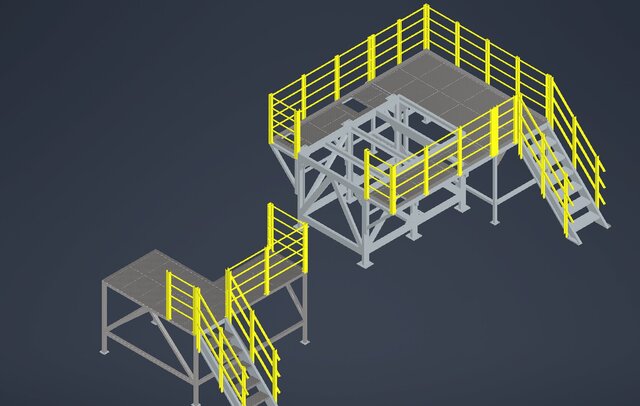

This project features a custom-designed multi-level platform system for industrial machinery. Modeled in Autodesk Inventor, the structure consists of three levels interconnected by staircases with safety railings. The platforms are supported by a robust framework of steel beams and columns. The top level includes an extended section designed for additional equipment installation or maintenance access. The overall design prioritizes both safety and functionality. This platform system is intended to enhance accessibility around machinery in production facilities, improve maintenance safety, and increase operational efficiency.
