LCA Pivot Bracket

Report

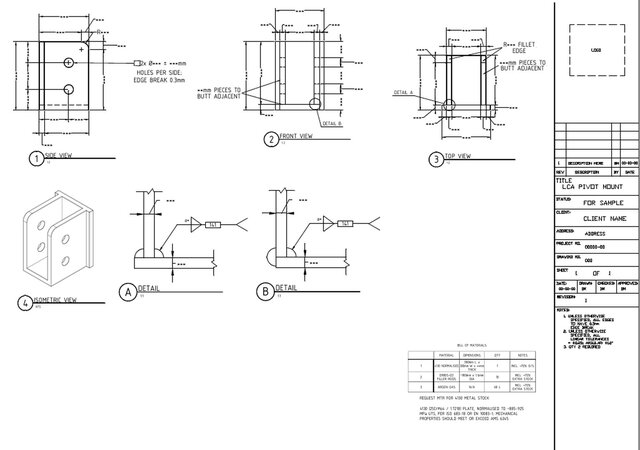

Lower control arm/wishbone pivot bracket designed to be welded to a custom tubular front subframe. Two pivot attachment points for adjustability. Dimensions have been removed for portfolio use.
Published
in Fabrication Drawings Services Metal Design and Fabrication 2D CAD Design Services
metal fabrication motorsport racecar racing rally custom-built cad-3d cad-2d custom-brackets sport-auto wishbone lca 4130 lower-control-arm chrome-moly pivot
Rendering Images
