ESP32 based Scoreboard and Enclosure

Report

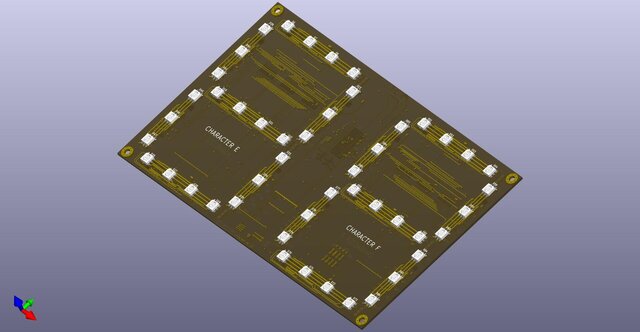

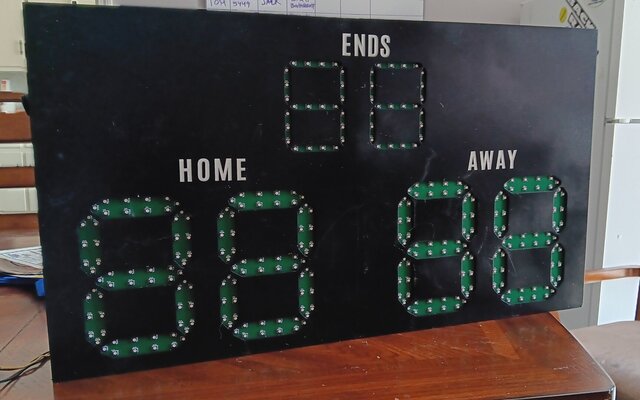

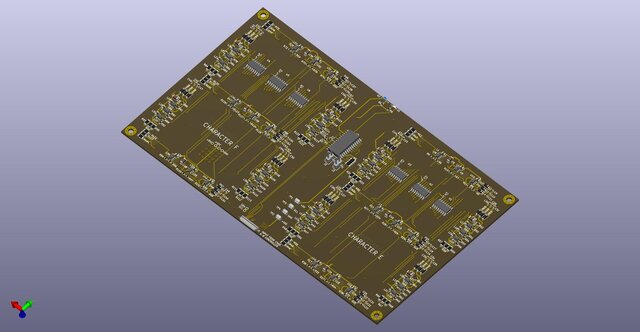

This is a scoreboard that is used for Lawn Bowing matches. There are 192 RGB LEDs that make up the display. The system is controlled by an ESP32 which interfaces with smartphones to update scores. There is an externally connected antenna to achieve a range of 500m. It runs off 40AH LIPO batteries with on-board battery charging and monitoring.
