Knuckle Joint – 2D Section View & 3D Solid Model | AutoCAD 2024

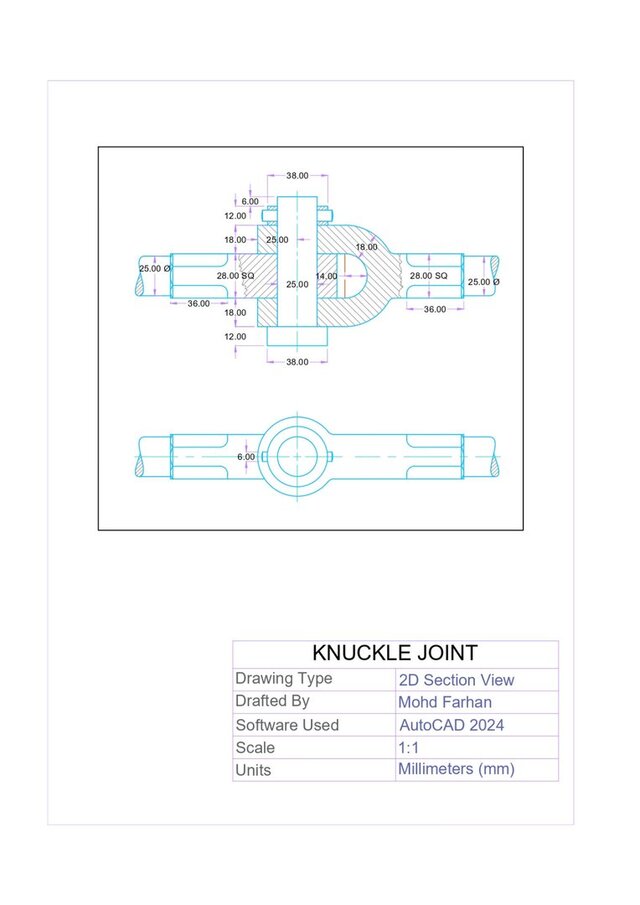

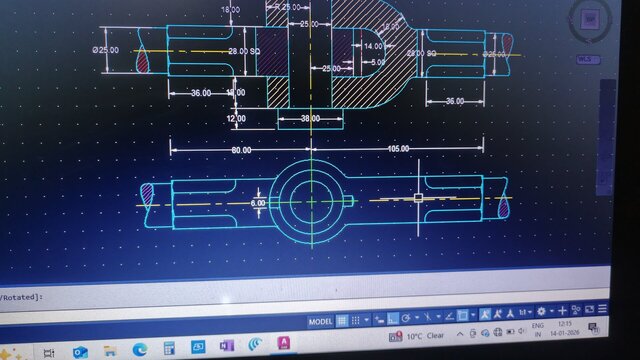

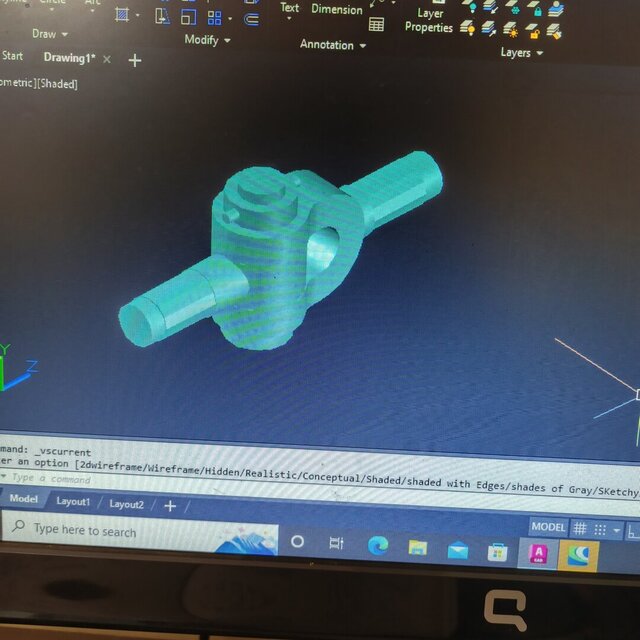

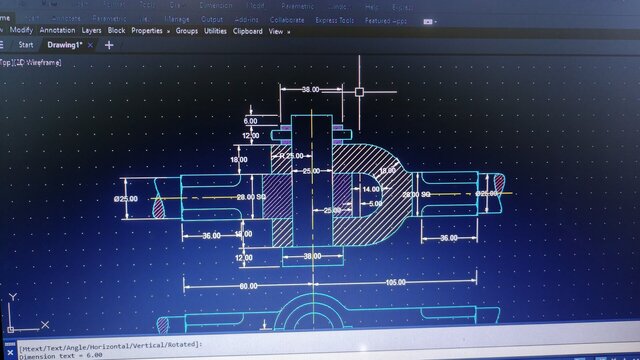

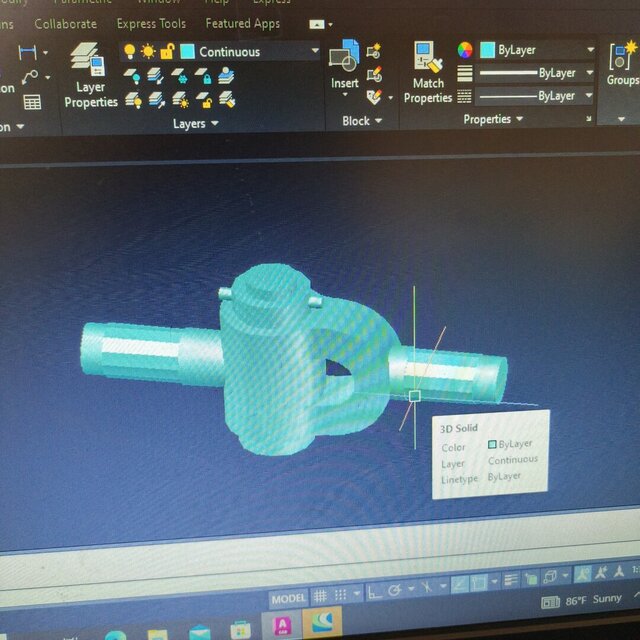

This design features a Knuckle Joint modeled and drafted in AutoCAD 2024, including both a detailed 2D Section View drawing and a fully modeled 3D Solid assembly with individual components. 2D Drawing includes: Front view and side view with full dimensions Section hatching for internal details Scale 1:1, Units: Millimeters (mm) Key dimensions: Ø25mm rods, 28mm SQ fork, 38mm total width 3D Model includes: Assembled knuckle joint solid model Individual components: fork end, eye end, knuckle pin, collar & cotter pin Created using 3D Solid tools in AutoCAD Drafted by: Mohd Farhan | Software: AutoCAD 2024
