KMJET MASTER | Modular Belt Grinder | Mechanical Design & Manufacturing

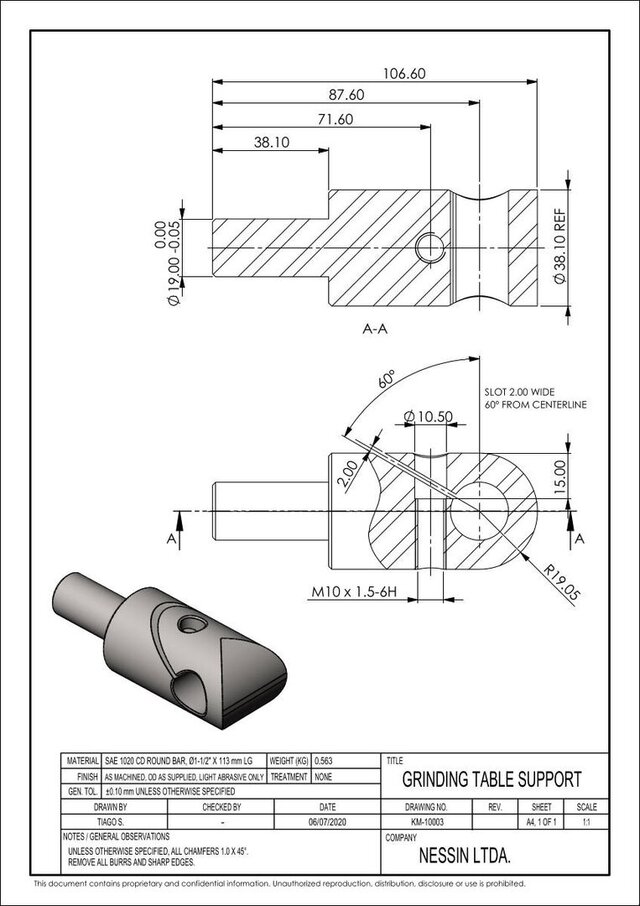

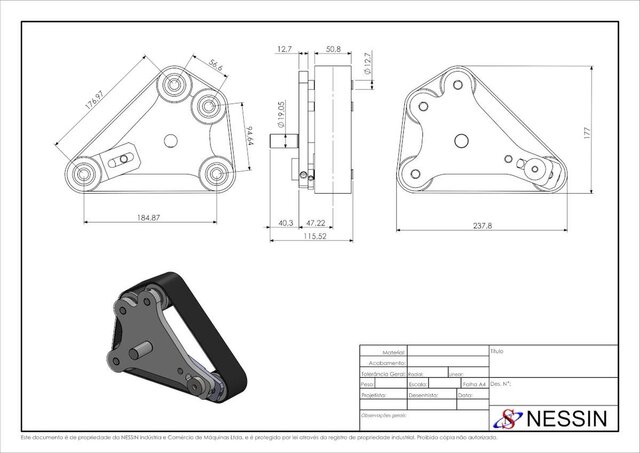

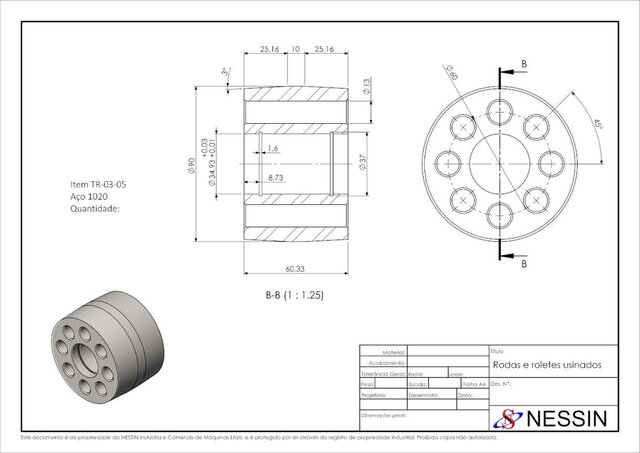

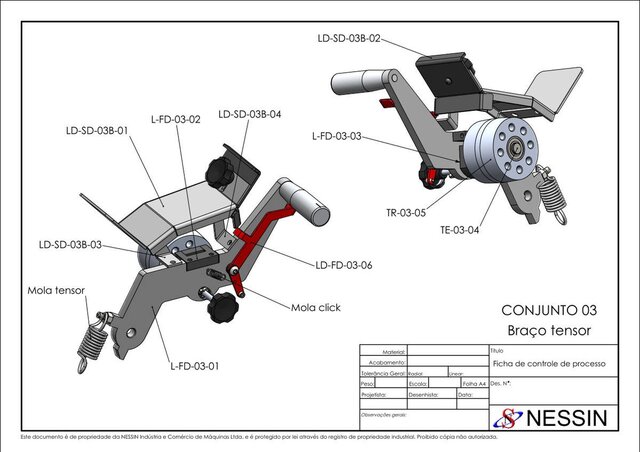

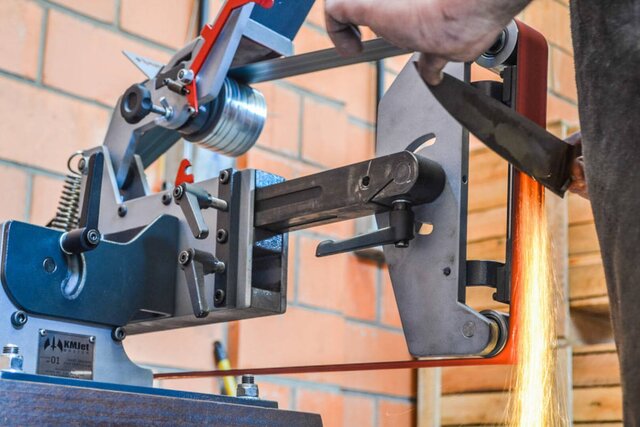

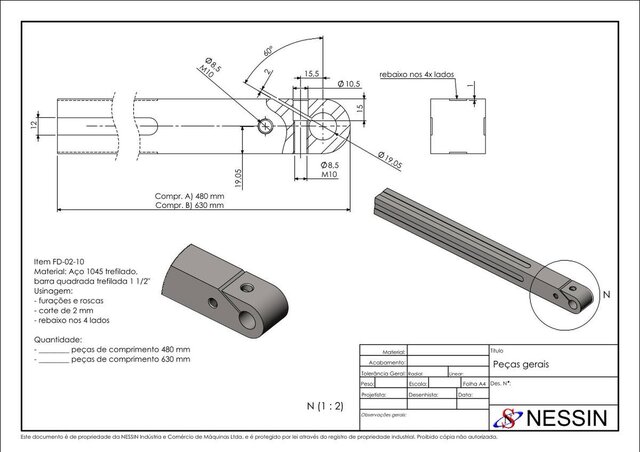

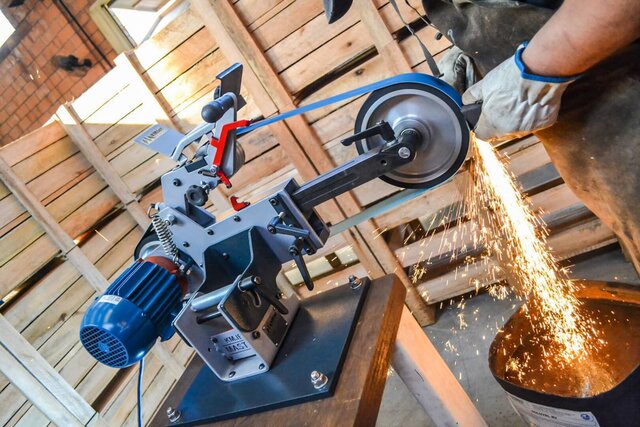

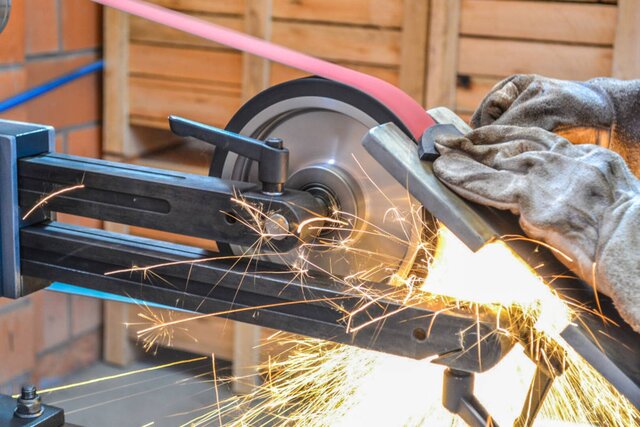

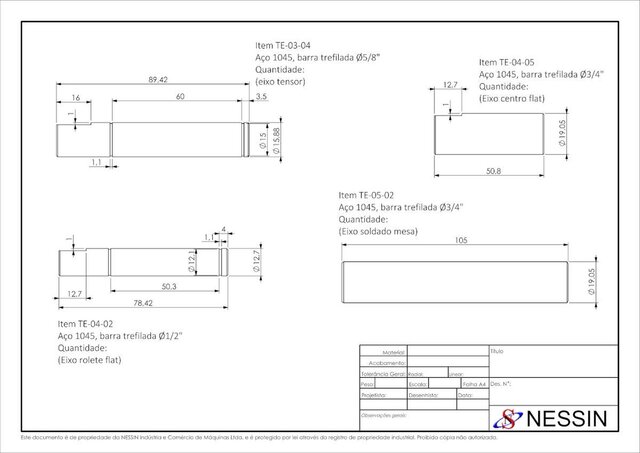

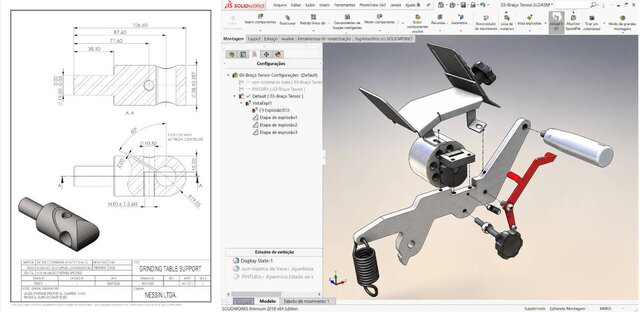

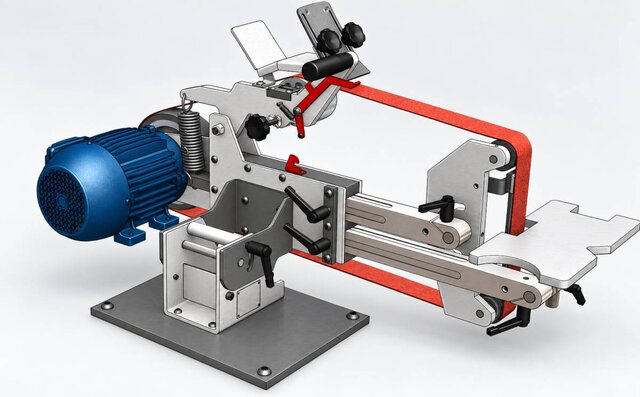

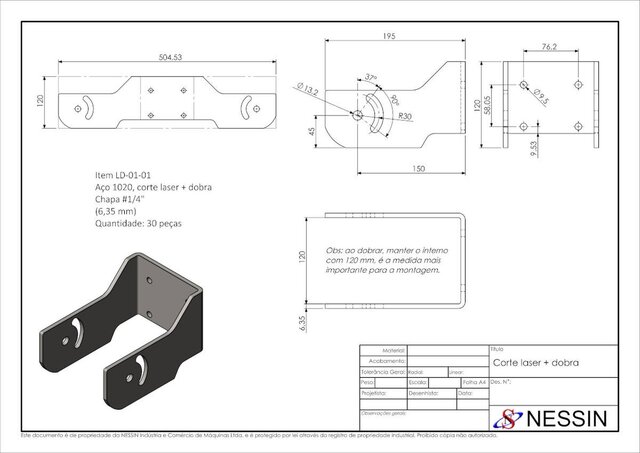

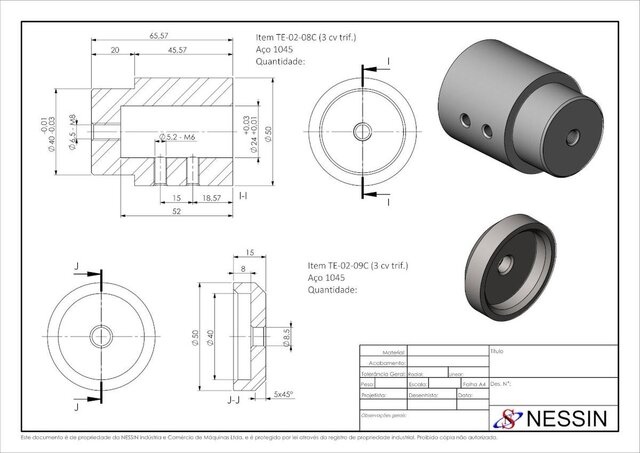

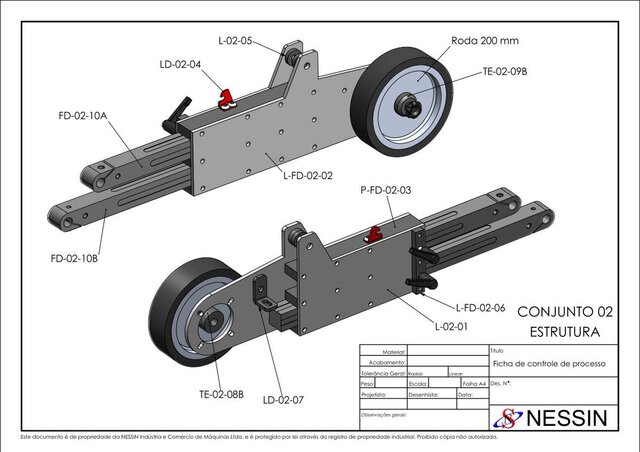

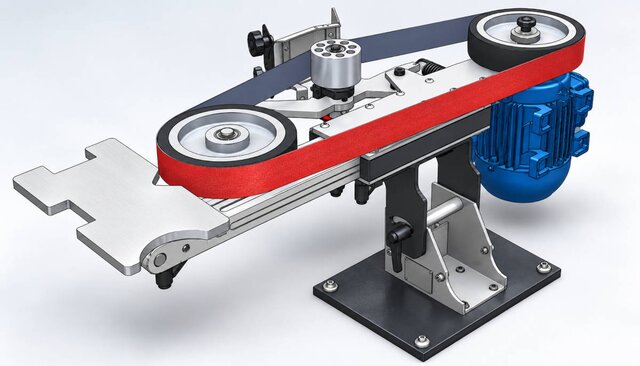

Complete mechanical design and manufacturing development of a modular belt grinding machine for knifemaking and general metalworking applications. The project was developed in SolidWorks from concept through production, including 3D modeling, mechanical assemblies, interchangeable grinding modules, belt tensioning and tracking mechanisms, adjustable supports, articulated work table, contact wheel system and flat grinding attachment. My scope included the mechanical design of the complete machine, sheet metal and laser-cut components, machined shafts, rollers and hubs, welded and assembled structures, manufacturing drawings, tolerances, BOMs and production documentation. The design was developed with practical manufacturing, assembly, adjustment, maintenance and operator usability in mind. Particular attention was given to modularity, belt alignment, quick adjustments and the ability to use different grinding configurations on the same machine. The machine was manufactured, assembled and tested in real grinding applications. The portfolio includes both the completed equipment and examples of the engineering and manufacturing documentation used to produce it. Project materials shown in this portfolio are shared with authorization from the project owner.
