Interconnection Schematics — 132kV C&P Cabinet (Substation Documentation)

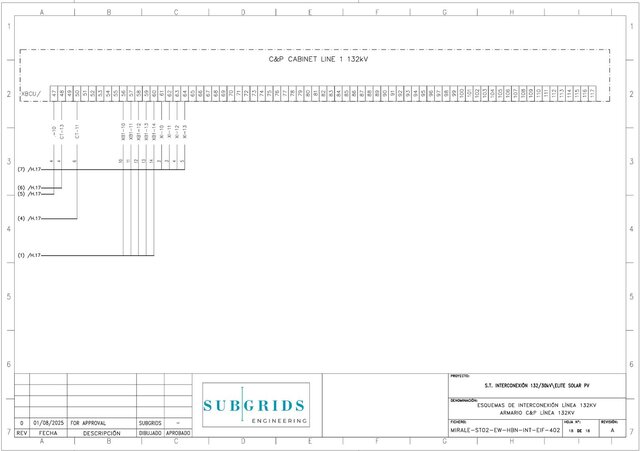

Interconnection drawings for a 132/30kV substation control & protection cabinet: complete terminal block layout with cross-referenced wiring to switchgear, signaling boxes and centralization panels. Each multicore cable identified with tag and cross-section, terminal-by-terminal. Sheet cross-references for continuation. Produced in AutoCAD to IEC standards — part of a full multi-panel documentation package (developed schematics, wiring, cable schedules, BOM).
