Insulated concrete form production line

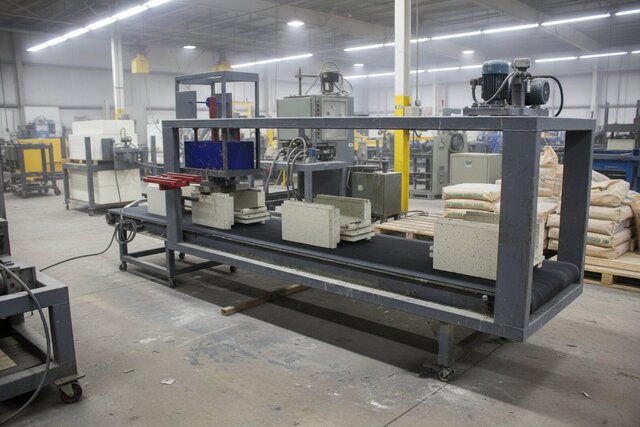

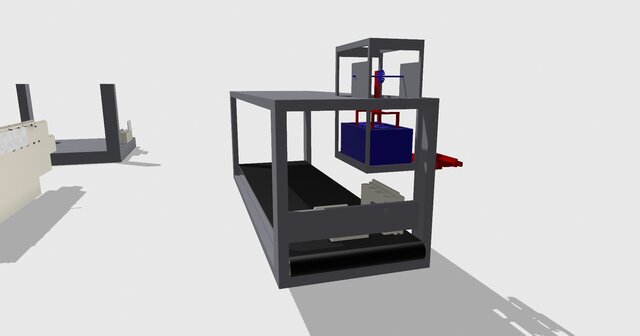

Automated Industrial ICF Production Line Project Overview The objective was to design a complete, end-to-end manufacturing system for Insulated Concrete Forms (ICF). The line is engineered to handle the thermal expansion and molding requirements of Expanded Polystyrene (EPS), integrating precise mechanical controls to produce blocks with interlocking teeth and high-tolerance internal cavities. Technical Specifications Modular Feed System: Designed for continuous material flow, ensuring consistent density across all molded ICF blocks. High-Pressure Molding Stations: Engineered to withstand industrial thermal cycles while maintaining 100% geometric accuracy for the form's interlocking connectors. Precision Ejection Mechanism: Utilizes a synchronized mechanical system to release forms without compromising the delicate surface finish of the EPS. Industrial Frame Design: Built on a heavy-duty, vibration-resistant structural framework designed for long-term reliability in a factory environment. Design Methodology & Tools Shapr3D (Parasolid Kernel): Developed using a professional modeling engine to ensure 1:1 compatibility with CNC machining and industrial fabrication standards. Mechanical Integrity: Similar to the UR10 robot adapter and modular singing bowl layout, this design utilizes a "fixed datum" approach for precise component alignment. +2 Assembly Engineering: Modeled as a complex multi-part assembly with clear tolerances for every moving part and mounting interface. Key Features Construction-Ready Output: Optimized for producing forms with deep interlocking grooves and high thermal resistance. DfM (Design for Manufacturing): Every part of the line is designed to be easily serviced and manufactured using standard industrial processes. High-Fidelity Visualization: Photorealistic renders were developed to validate the architectural layout and spatial flow of the machinery before production.
