Industrial Zigzag Air Separator Design | 3D CAD Model

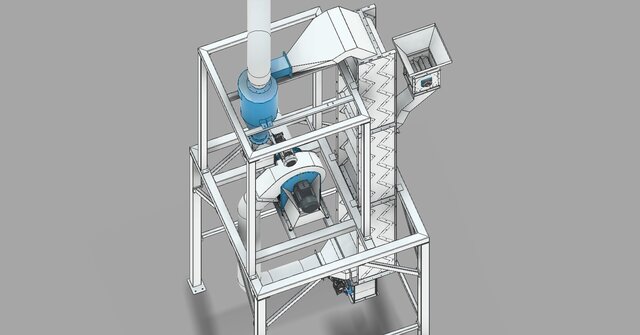

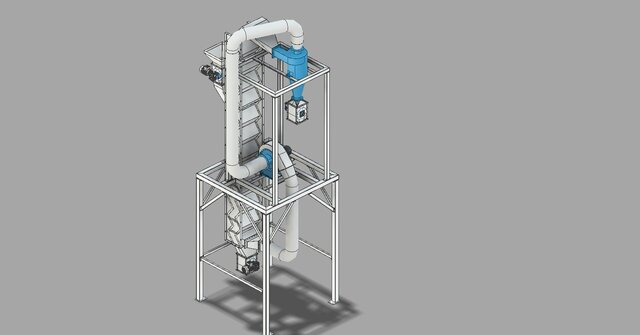

This project showcases a detailed 3D CAD design of an industrial zigzag air separator system, widely used in material separation processes. The design was created using Autodesk Inventor with a focus on high efficiency and durability. The system is optimized to separate particles of different densities using controlled airflow. Key Features: Steel frame construction: Robust and production-ready structure. Zigzag channel design: Multi-stage configuration for maximum separation efficiency. Fan and cyclone integration: Ensures proper airflow and dust particle separation. Modular design: Easy assembly and maintenance. Manufacturing-ready drawings: Optimized for CNC cutting and fabrication. This model includes detailed manufacturing drawings, assembly instructions, and technical analysis, making it suitable for industrial applications. Both ergonomics and energy efficiency were considered during the design process.1
