Industrial USB3 Hub 5Gbps

Report

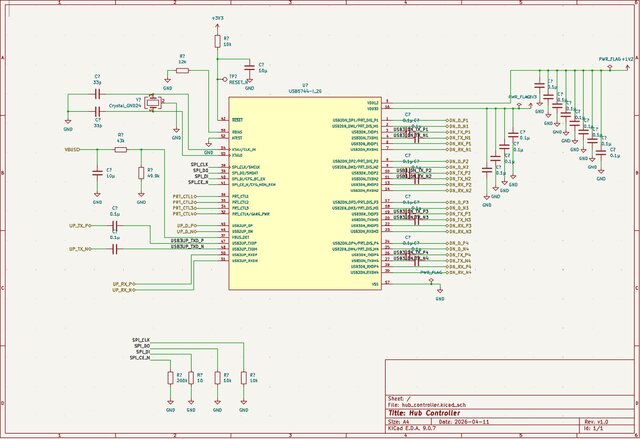

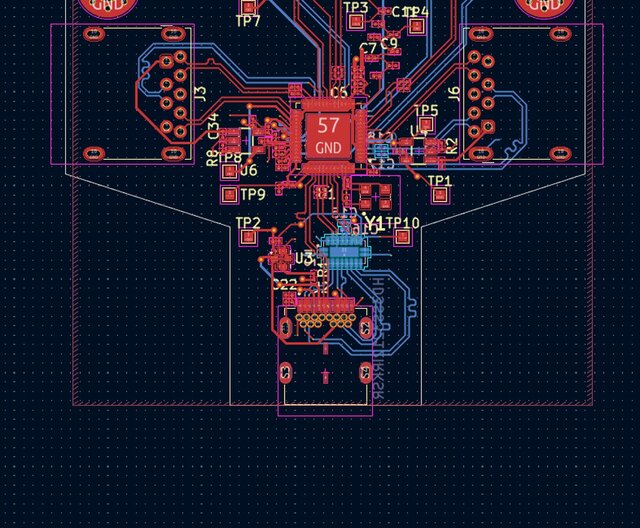

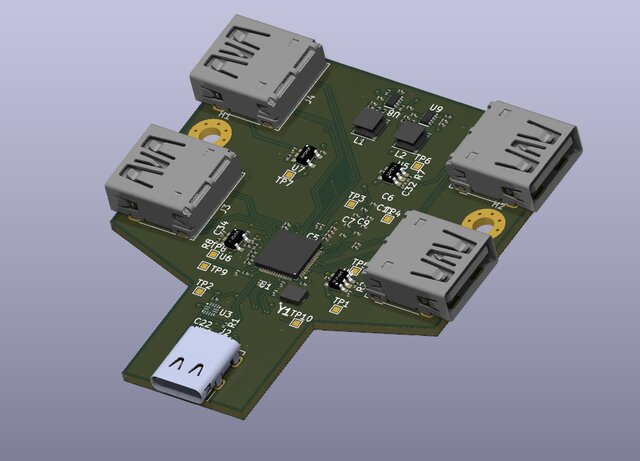

A custom 4-layer, 4-port industrial USB 3.0 (5Gbps) hub based on the Microchip USB5744. Features strict 90Ω impedance control, per-port power distribution, and robust ESD protection.
Published
in PCB Design Services Electronics Design Service Electrical Circuit Design Services
printed-circuit-board usb pcb-design pcb-layout hardware-design high-speed-design hdmi
Rendering Images Microsoft Excel 3D PDF Files
