Industrial Steel Service Platform Design

Report

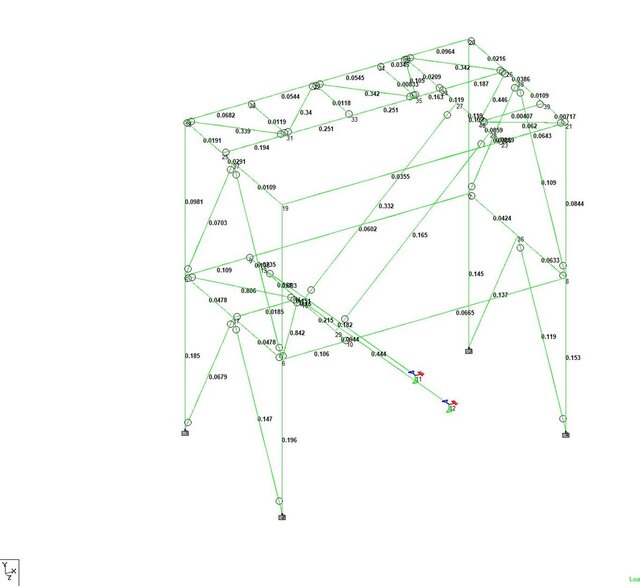

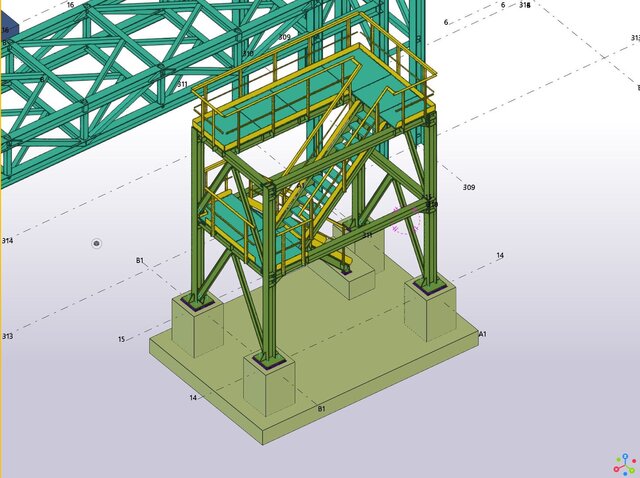

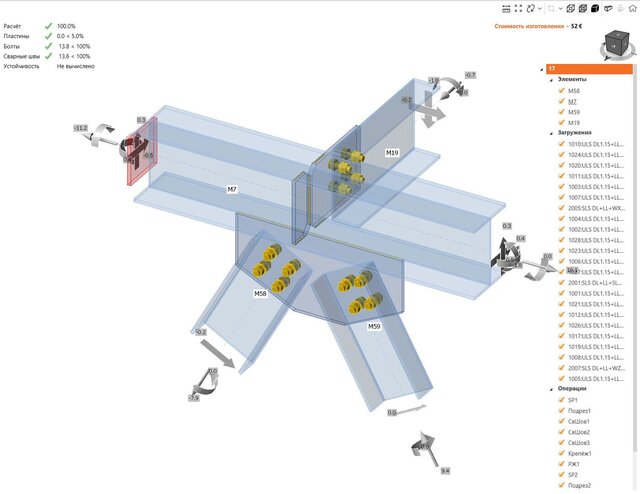

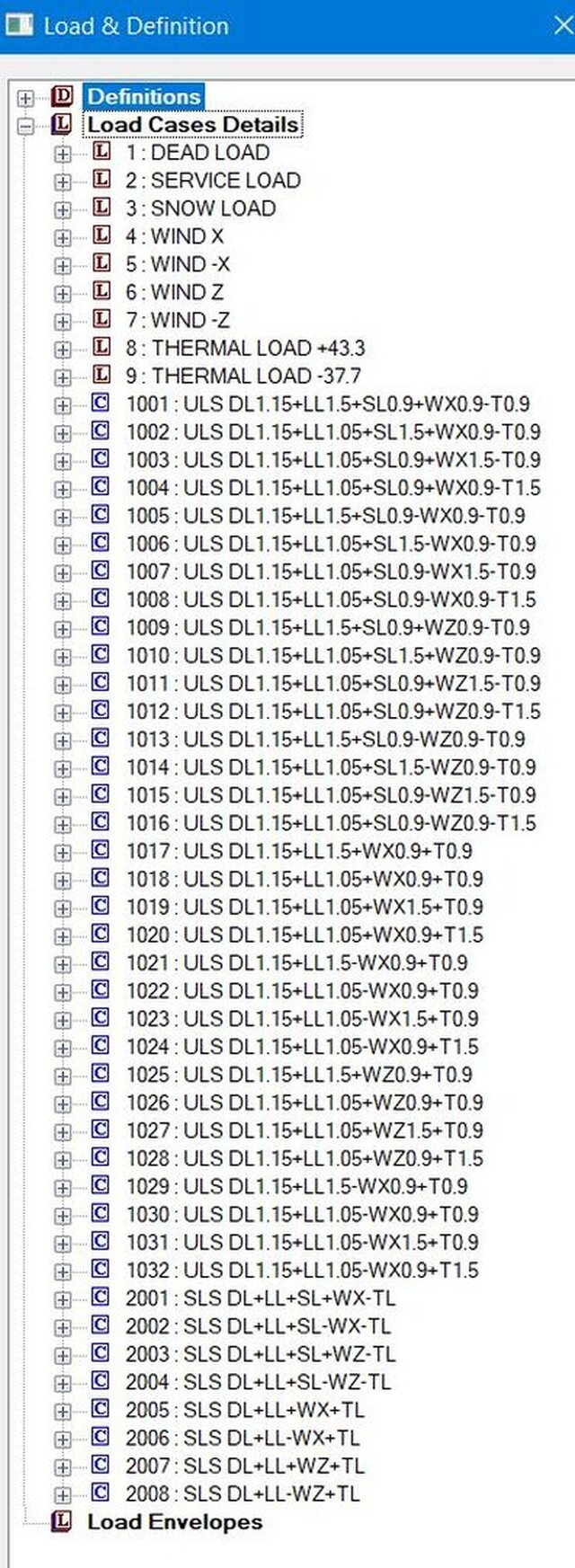

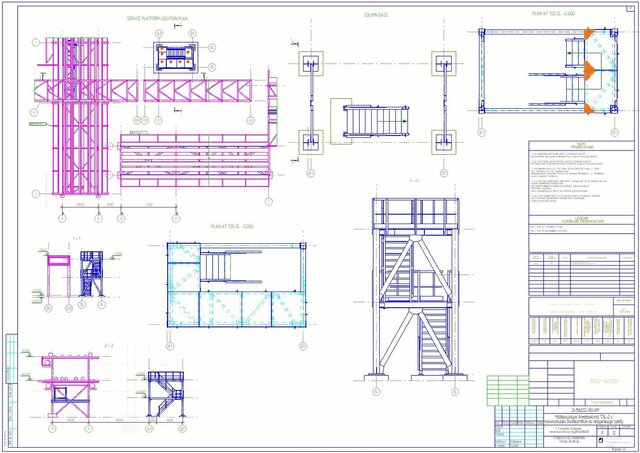

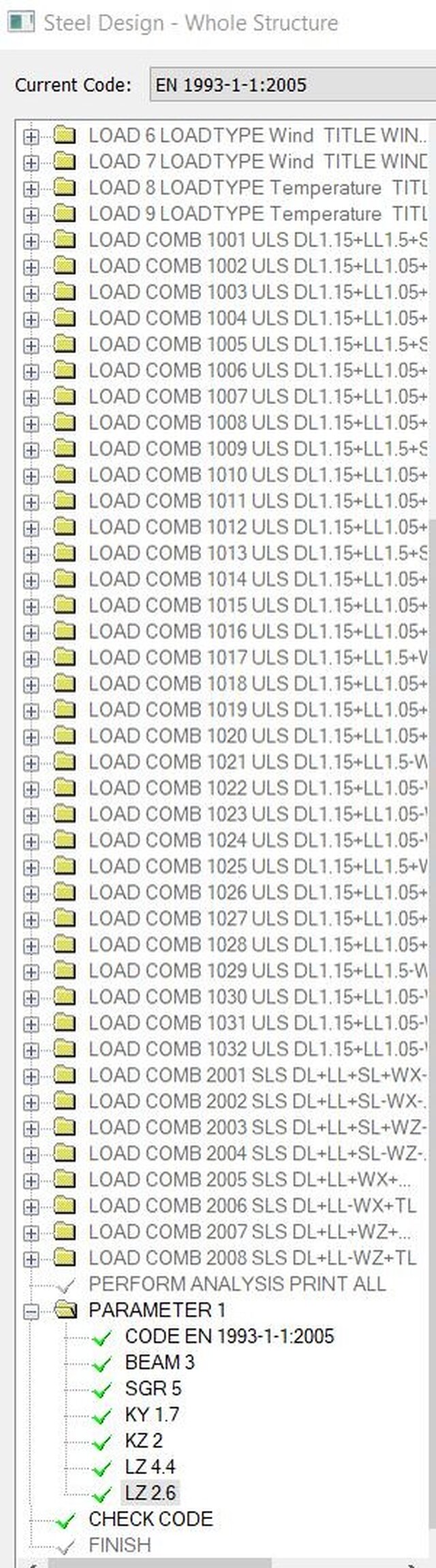

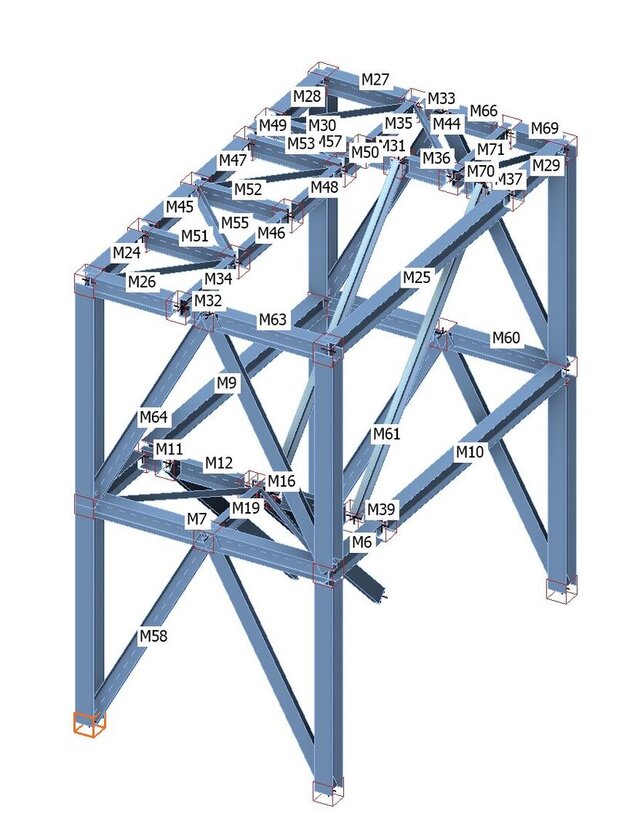

Structural design and BIM modeling of an industrial steel service platform. The scope included structural modeling, load application, analysis and steel member verification in STAAD.Pro. Steel connections and base plates were analyzed and verified using IDEA StatiCa. The structure was modeled in Tekla Structures, including columns, beams, bracing, platforms, stairs and handrails. GA and detail drawings were developed as part of the structural design documentation. Software used: STAAD.Pro, Tekla Structures, IDEA StatiCa.
Published
in 3D Modeling Structural Engineering FEA Finite Element Analysis
tekla-structures detail-drawings structural-analysis structural-design steel-structures ga-drawings idea-statica steel-structure-design staad-pro steel-connection-design
Rendering Images AutoCAD Industry Foundation Classes
