Industrial Sheet Metal Enclosure with Battery Assembly

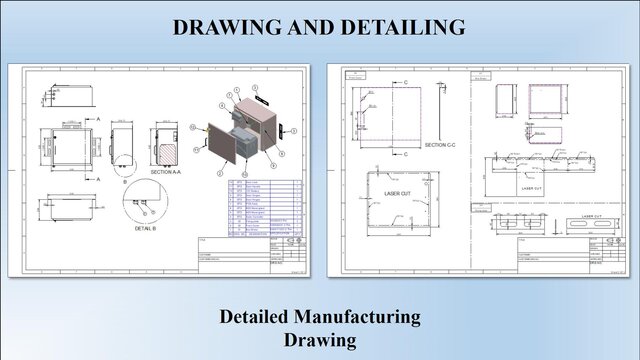

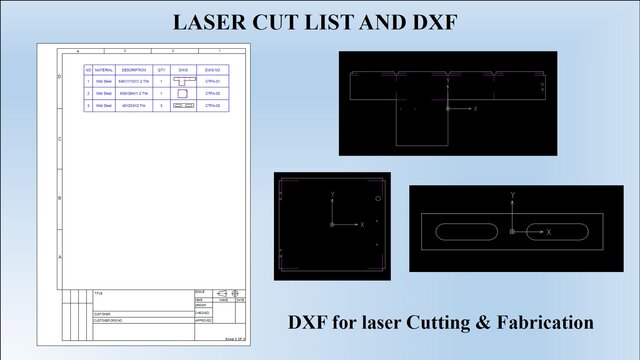

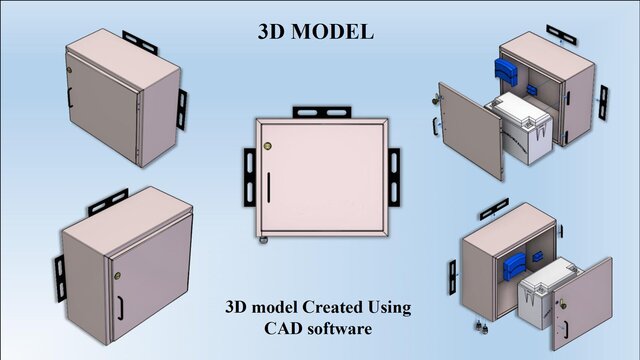

Complete product development cycle for a wall-mounted sheet metal enclosure, optimized for real-world fabrication and assembly. Key details of this project showcase: • 3D CAD Modeling: Designed using advanced sheet metal parameters (K-factor and bend allowance calculations). • Exploded Assembly Layout: Organized internal component spacing for standard battery housing and mounting clearances. • Manufacturing Documentation: Full 2D engineering drawings including geometric dimensioning, tolerances (GD&T), and clean Bill of Materials (BOM). • Flat Patterns: Ready-to-go DXF files configured explicitly for CNC laser cutting and precise metal bending. Deliverables included in a standard project package: .STP, .DWG, .PDF, and flat-profile .DXF files.
