Industrial Screw Conveyor Drive Assembly – 3D CAD Design & Rendering

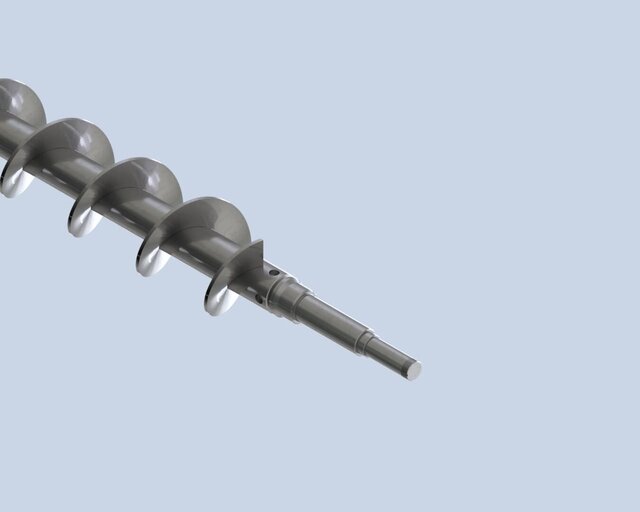

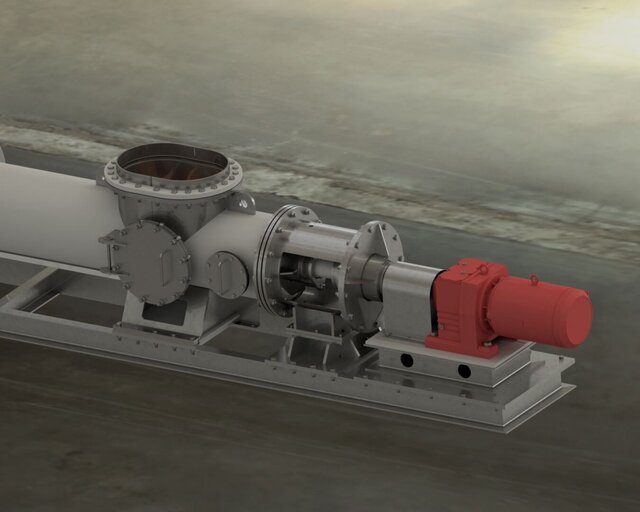

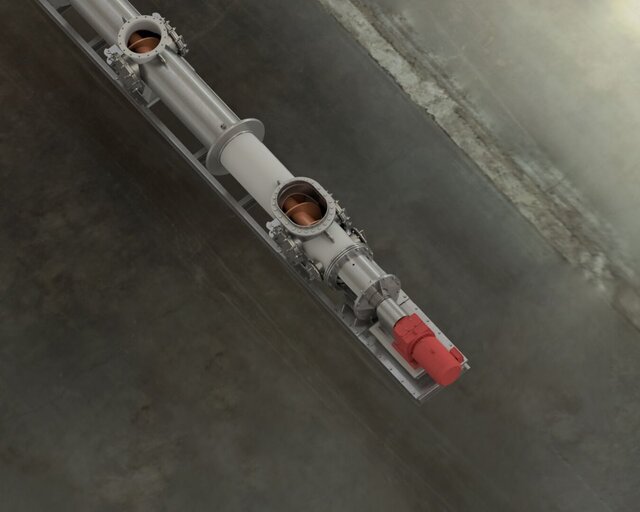

This project showcases a detailed 3D model of a screw conveyor drive assembly, designed for industrial bulk-material handling applications. The assembly includes the gear motor, shaft coupling, bearing housings, and reinforced mounting base, all modeled with high mechanical accuracy. The model demonstrates: Complete parametrically-defined geometry Realistic rendering with correct material definitions (steel, coated steel, cast components) Functional alignment of the gearbox output shaft with the screw conveyor Detailed flange interfaces, inspection cover, and structural support frame Manufacturing-ready dimensions and engineering logic behind each component This design highlights my experience in: industrial machinery power transmission systems rotating equipment design sheet metal and weldment structures realistic presentation renders for client documentation
