Industrial Pressure Vessel / Boiler

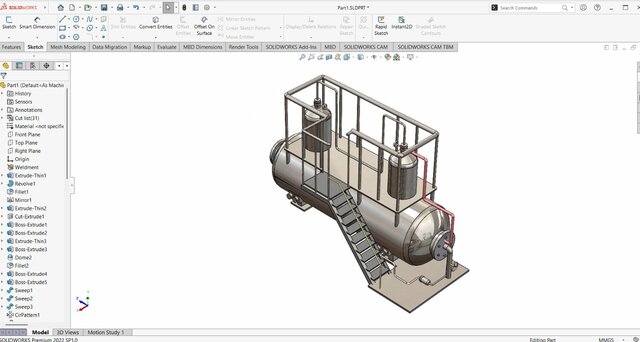

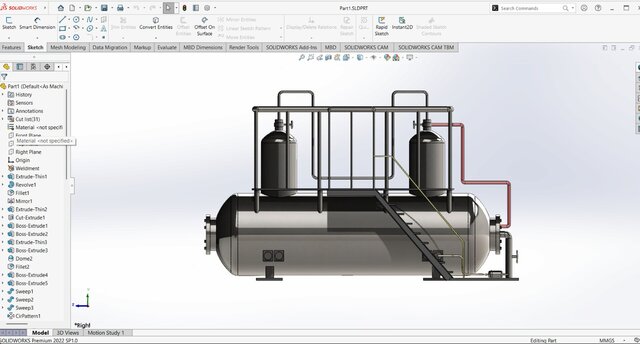

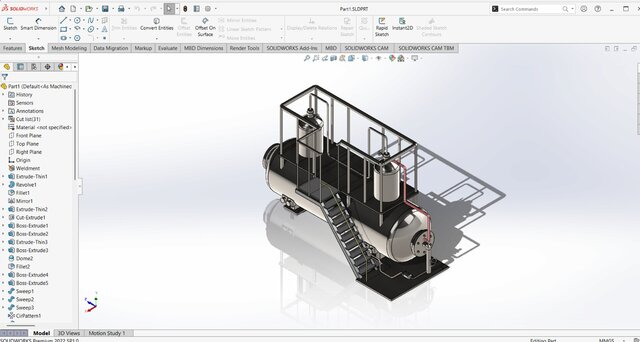

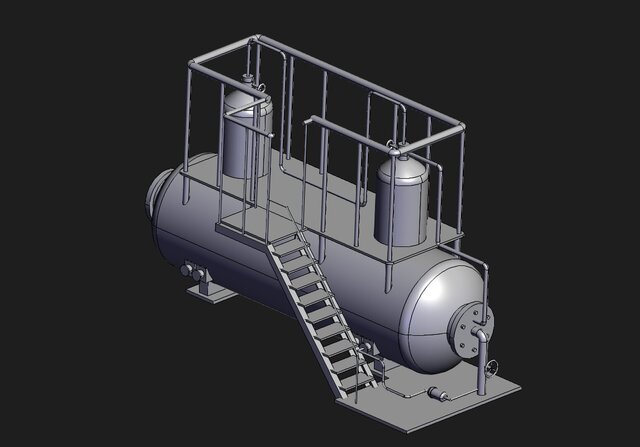

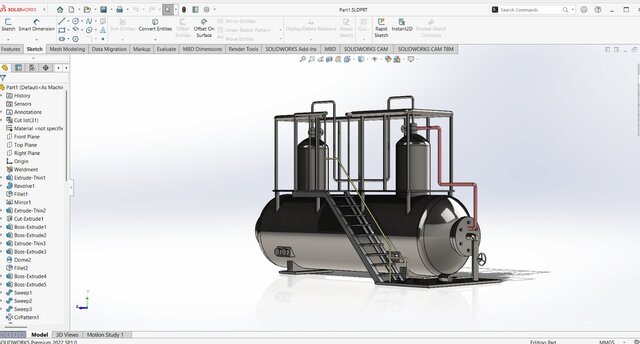

This is a Pressure Vessel / Boiler model I designed in SOLIDWORKS, with attention to both functionality and operator accessibility.
⚙️ Key Features:
-Cylindrical body with domed ends for even pressure distribution.
-Stairs and platform for safe maintenance access.
-Handrails and operator entry points.
-Realistic nozzles and fittings for detail and accuracy.
📌 Applications:
-Steam generation in power plants ⚡
-Chemical & petrochemical processing 🛢️
-Industrial storage of pressurized fluids 🔵
