Industrial Pneumatic Power Hammer (70lb Class)

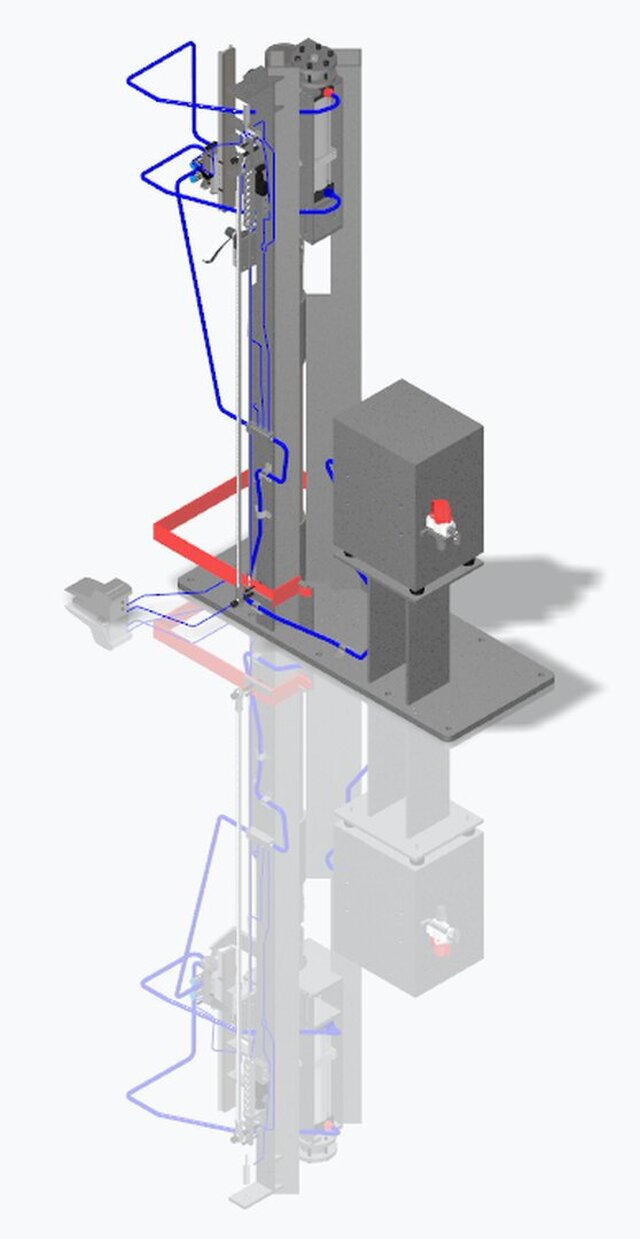

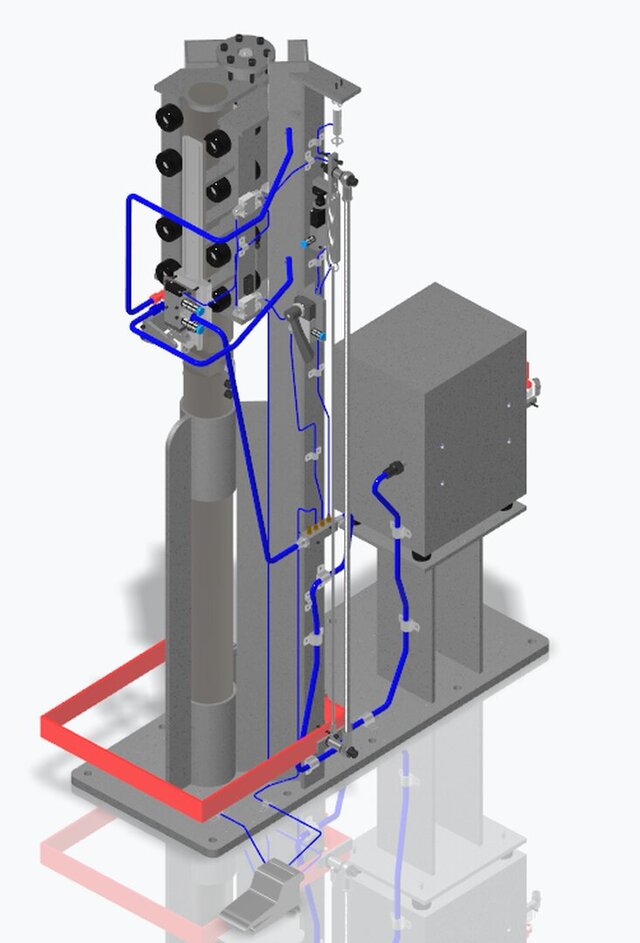

Project Overview This project involved the end-to-end mechanical design and engineering of a high-precision, 70lb pneumatic power hammer tailored for custom bladesmithing and industrial forging. The design focuses on a "function-first" aesthetic, balancing heavy structural stability with a complex, multi-modal pneumatic control system. Key Technical Features Variable Stroke Logic: Engineered a unique linear-rail-mounted carriage system for the primary 5/2-way power valve. This allows the operator to mechanically adjust the stroke length and hitting rhythm in real-time by shifting the valve position relative to the ram’s mechanical cam. Triple-Input Control Circuit: Developed a nested pneumatic logic hub using dual OR-gate shuttle valves. This system seamlessly integrates three independent control signals—Hand Lever, Foot Treadle, and Automatic Timing—without pressure backflow or signal loss. Structural Optimization: The frame utilizes 80x80x6 SHS (Square Hollow Section) for the main guide system, providing maximum rigidity to handle the harmonic vibrations of the 70lb reciprocating mass. Integrated Pneumatic Safety: Designed with a dedicated protective foot shroud and a "deadman" return system featuring a pneumatic spring assist to ensure immediate ram cessation upon control release. Manufacturing Ready: Delivered a full technical package including parametric 3D modeling, optimized pneumatic routing layouts for 12mm high-flow lines, and a comprehensive assembly manual for industrial fabrication. Design Philosophy The "Anvilworn" aesthetic was achieved by combining raw, polished steel elements with cold-blued structural components. The design prioritizes accessibility for maintenance, utilizing standardized industrial pneumatic components and precision quick-change die pins for rapid tooling swaps in a high-heat environment.
