Industrial Mixing Tank — SOLIDWORKS Mechanical Design

Report

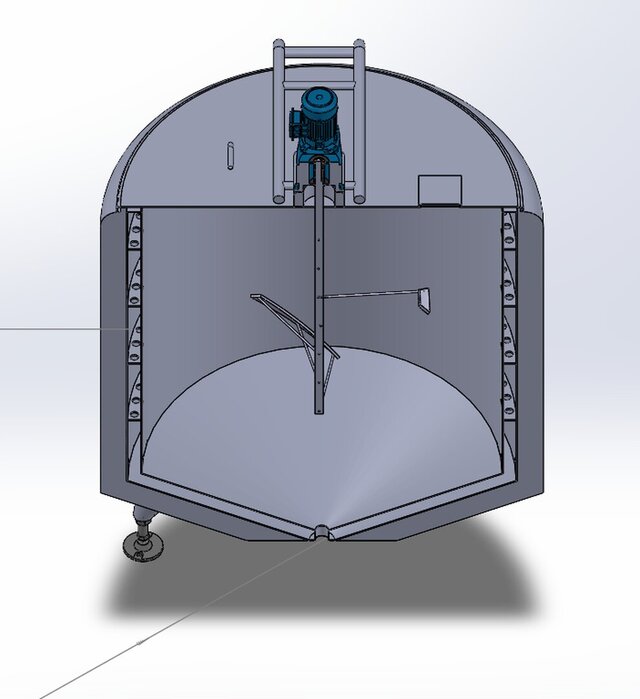

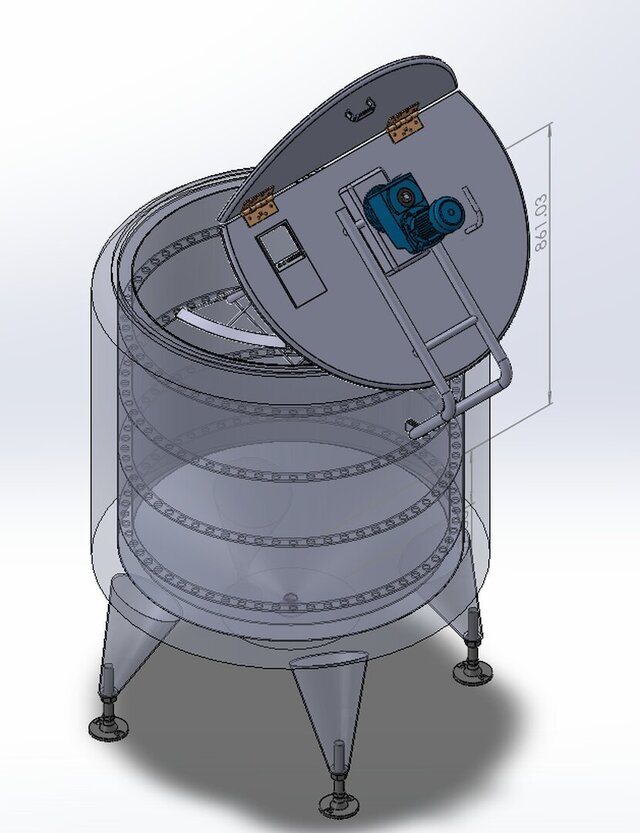

Designed a complete industrial mixing tank in SOLIDWORKS as part of the milk-processing production line. The model includes the cylindrical vessel, internal agitator, top-mounted motor and drive system, hinged access cover, conical bottom outlet, support legs, and structural details. The assembly was developed to show the full mechanical arrangement and component relationships for fabrication and integration into the production line.
