Industrial Hydraulic Scissor Table Lift – 3D CAD & Fabrication Design

Report

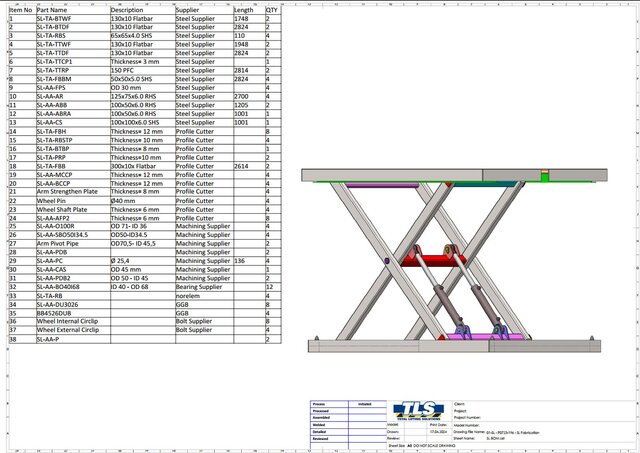

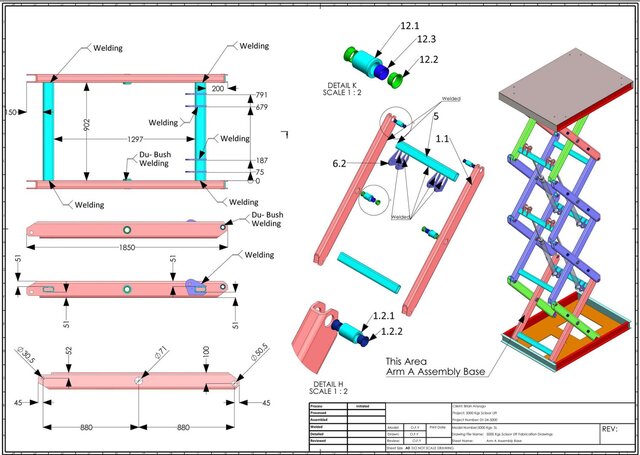

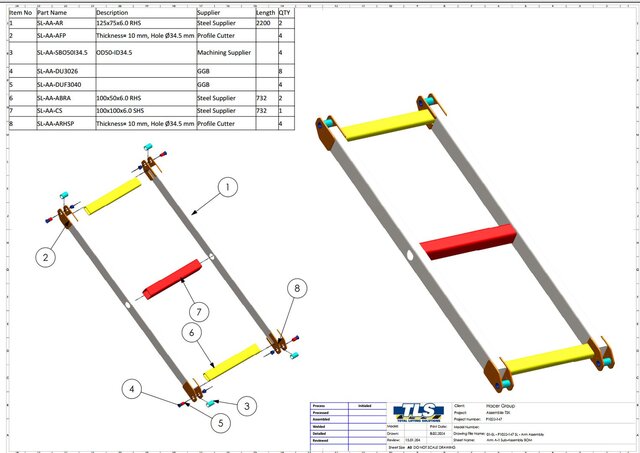

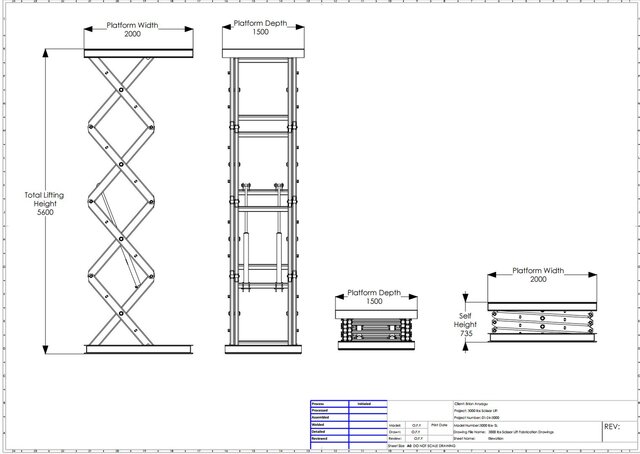

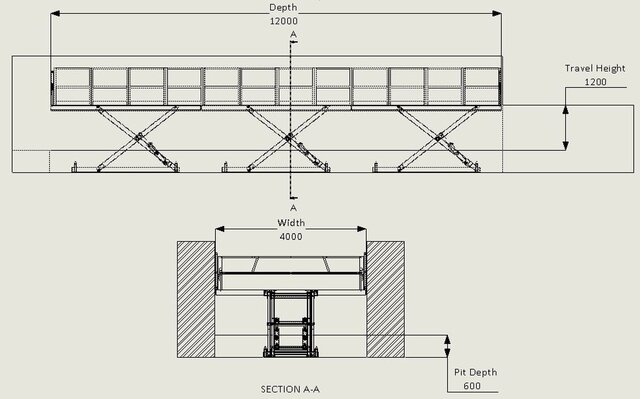

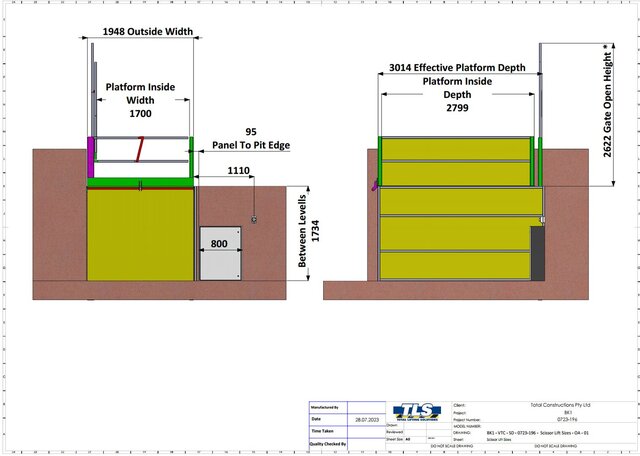

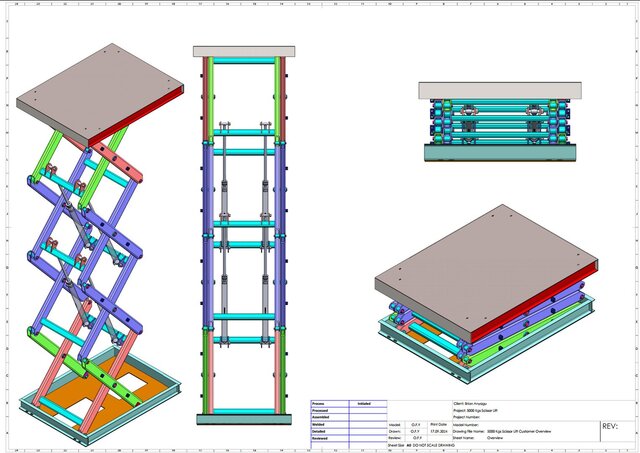

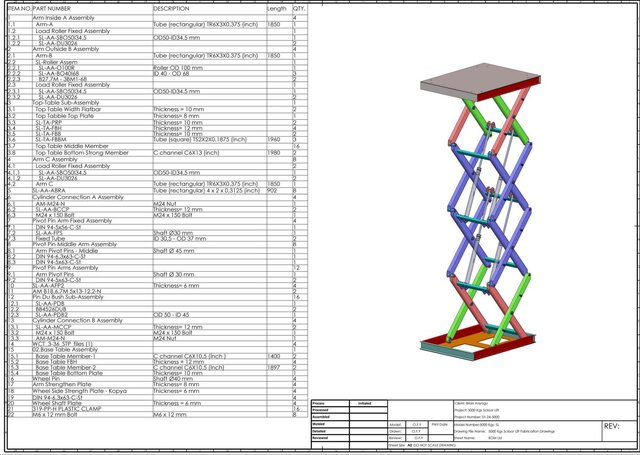

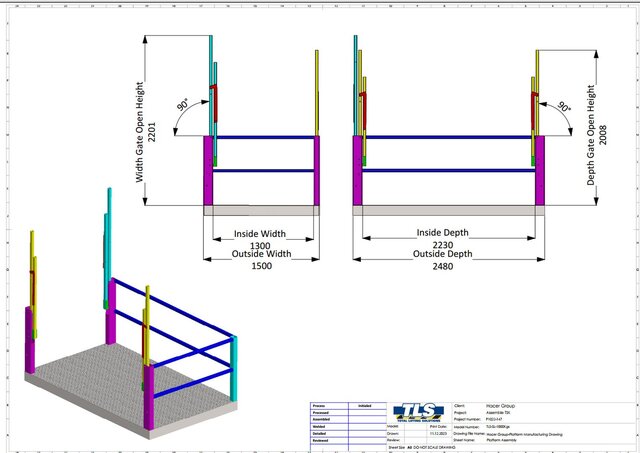

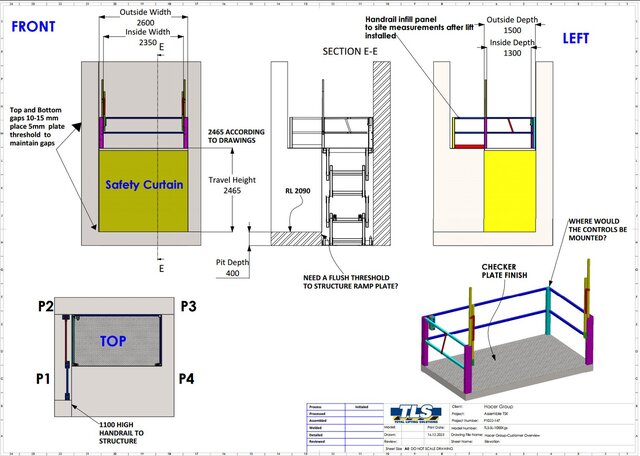

Industrial Hydraulic Scissor Table Lift designed for manufacturing and fabrication. The project includes detailed 3D CAD modeling of the lifting mechanism, structural frame, scissor arms, platform, pivot connections and hydraulic system integration. The design was developed with a focus on structural strength, stability, manufacturability and practical assembly. Engineering scope: • 3D mechanical design and assembly • Scissor lift mechanism design • Structural steel fabrication • Hydraulic system integration • Weldment and sheet metal design • Manufacturing drawings • Design for Manufacturing (DFM) • Load and structural considerations Designed using SolidWorks with a fabrication-ready engineering approach.
Published
in 3D Modeling Design Mechanical Engineering Design for Manufacturability (DFM Services)
autocad solidworks fabrication cad-design mechanical-design machine-design mechanical-engineering 3d-cad engineering-design steel-structure finite-element-analysis structural-analysis structural-design manufacturing-drawing weldment-design dwg scissor-lift laser-curtting industrial-equipment hydraulic-system dfm-design-for-manufacturing hydraulic-lift lift-table
