Industrial Flail Mower - Complete Mechanical Design & Manufacturing Documentation

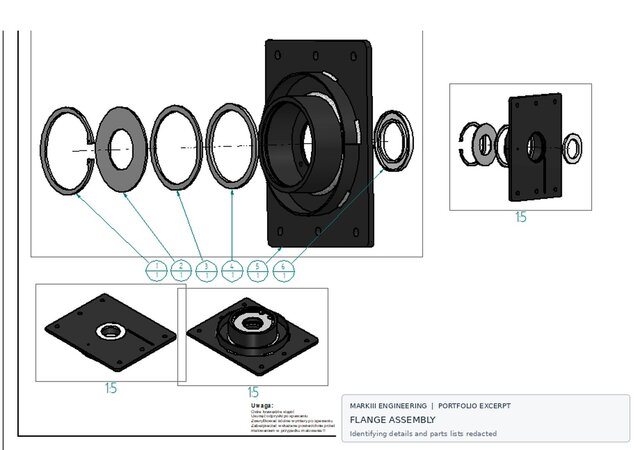

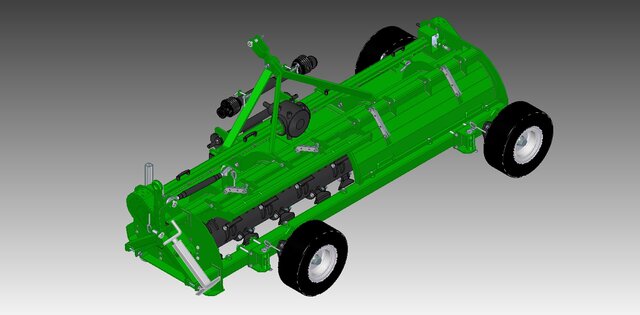

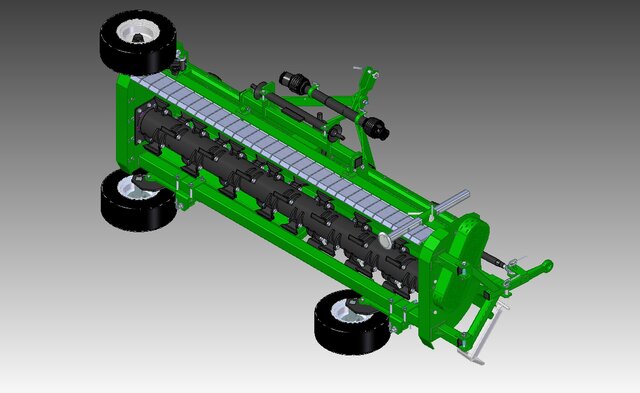

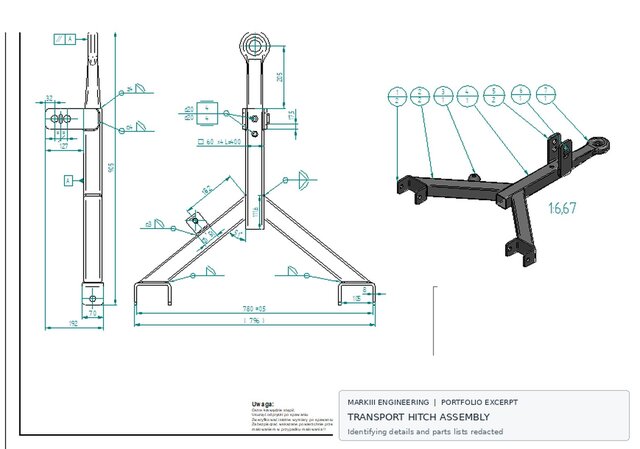

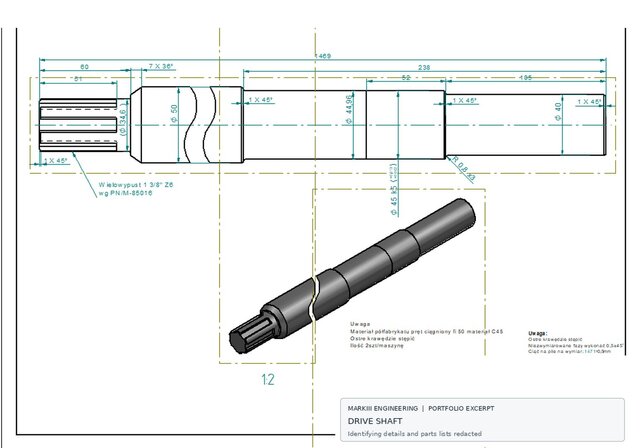

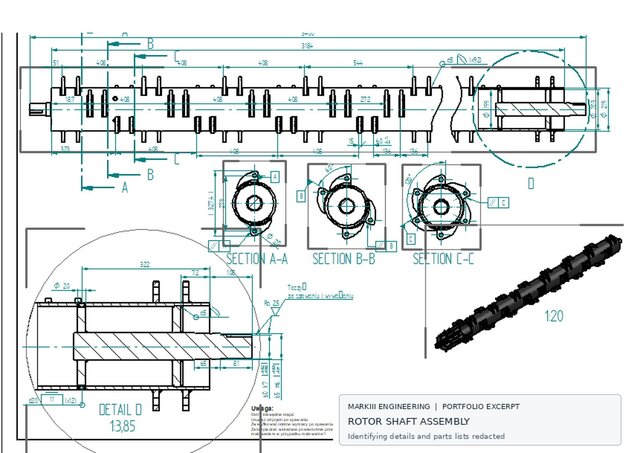

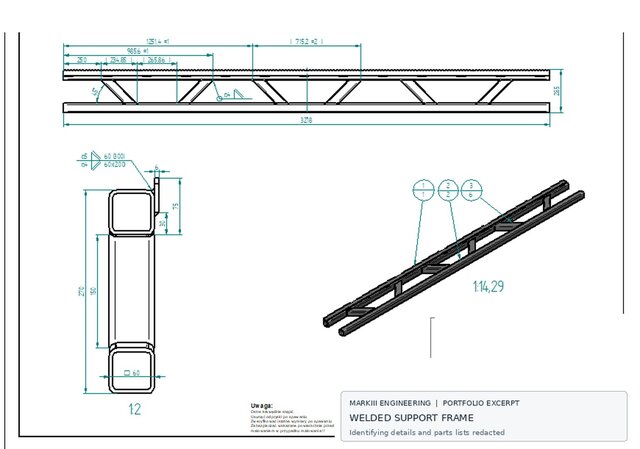

Industrial Flail Mower – Complete Mechanical Design & Manufacturing Engineering Complete mechanical design of a 3.2 m industrial flail mower, developed based on an existing smaller machine. I was responsible for the mechanical design of the complete machine and the preparation of technical and manufacturing documentation. My responsibilities included: - Development of the complete 3D CAD assembly using Solid Edge. - Design of mechanical components and subassemblies, including the working rotor, housing, drive system, support structures and mounting mechanisms. - Preparation of detailed 2D manufacturing drawings with dimensions, tolerances and sectional views. - Selection of standard mechanical components and preparation of bills of materials (BOM). - Development of manufacturing processes and technical documentation required for production. - Consideration of manufacturability, assembly requirements and available production technologies during the design process. Project outcome: The complete design and manufacturing documentation was prepared during my employment at TALEX. The machine was subsequently manufactured and introduced to the market after my employment with the company had ended. The portfolio images show the original 3D CAD assembly and selected examples of my technical documentation. Finished product – manufacturer's official website: https://talex-sj.pl/kosiarka-bijakowa-leo-320-professional/ Software: Solid Edge Project background: Professional experience at TALEX, Poland.
