Industrial Electronics Enclosure DFM Study

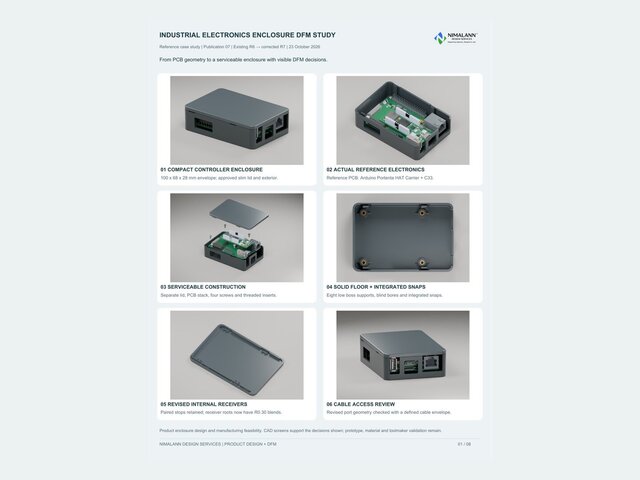

A before-and-after SolidWorks enclosure review based on actual CAD findings: boss supports, internal roots, connector clearances and snap-receiver release. The approved exterior and solid bottom are retained. Original geometry is preserved alongside corrected parametric CAD; no defects were introduced for demonstration. Reference PCB: Arduino Portenta HAT Carrier + C33. The complete eight-page report documents the design, findings, corrections and remaining validation. Material, prototype and toolmaker validation remain; the mould is presented only as a manufacturing concept. Enclosure design and DFM study by Nimalann Design Services. Read our complete report: https://drive.google.com/file/d/1T7vsQCHyo-wm4CRlY7nCrEd53pqdvHtU/view
