Industrial Autoclave & Access Platform

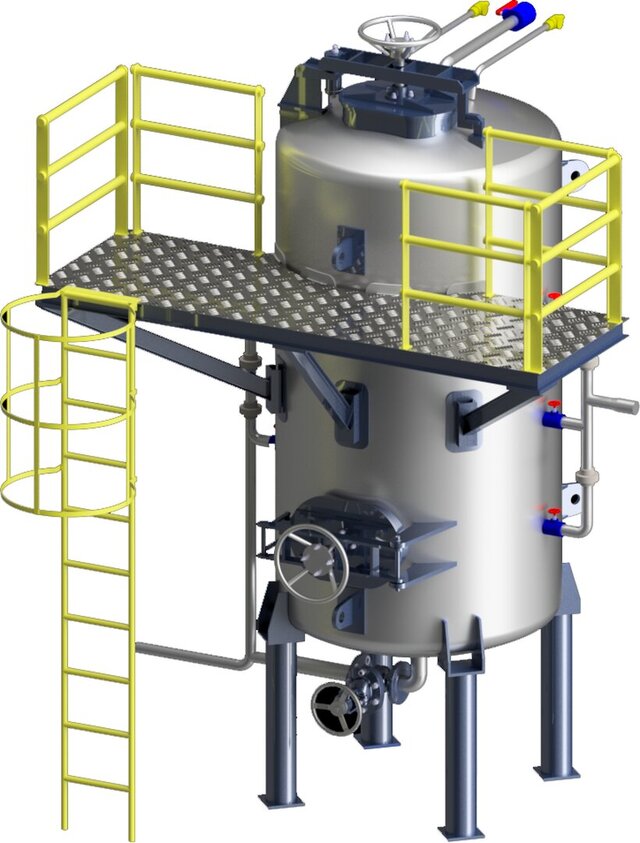

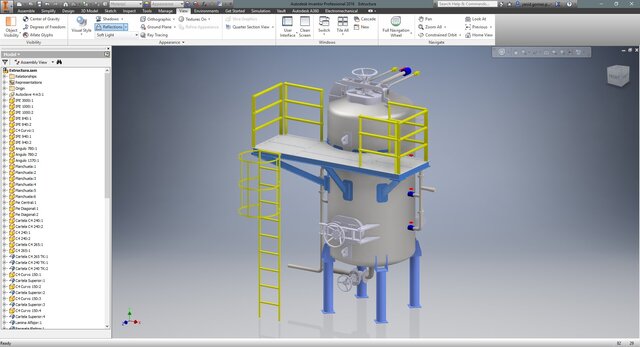

Detailed 3D modeling of an industrial autoclave installation including the vessel, structural supports, service platform, access ladder, safety handrails, valves, piping interfaces, and mechanical components. The project required integration of fabricated structures and mechanical equipment into a coordinated assembly suitable for manufacturing and installation documentation. My work focused on 3D CAD development, assembly coordination, fabrication details, and manufacturing and assembly drawings.
