Industrial Access System: As-built Engineering & Structural Overhaul

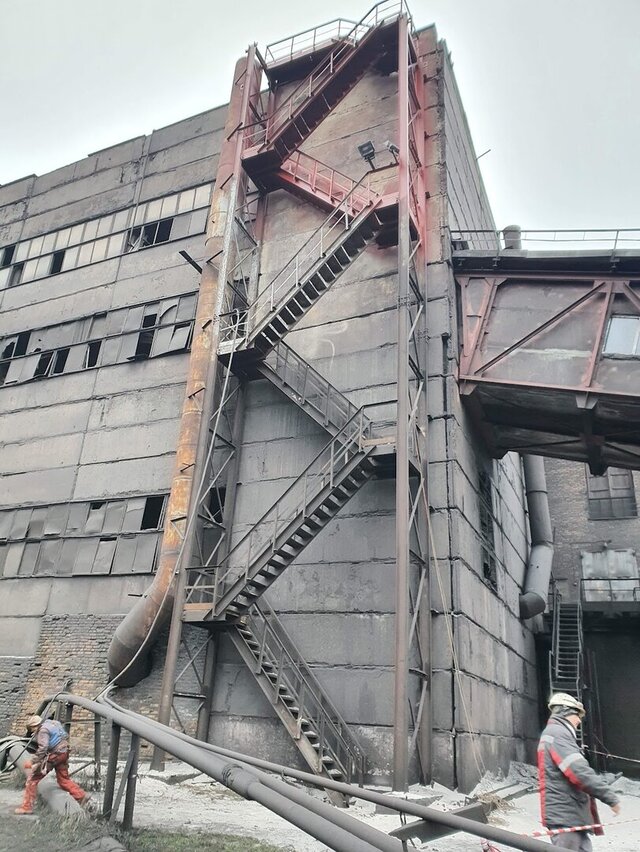

Rapid as-built documentation and engineering audit of a 23-meter high industrial staircase structure. The project was initiated to address severe structural corrosion and lack of existing technical data for maintenance planning. Technical Scope: As-built Surveying: Fast-track data collection and 3D modeling of existing 23m vertical structures to establish baseline documentation. Corrosion Audit: Identification of critical structural failure points in "rotten" metal sections requiring immediate replacement.Precise Calculations: Generated a detailed Bill of Materials (BOM) with accurate surface area and mass metrics. Maintenance Planning: Defined exact parameters for anti-corrosion coating and material procurement to prevent budget overruns.Key Metrics:Total Structural Mass: 10.687 tons.Total Surface Area: 448.560 $m^2$ (calculated for precise paint/coating estimation).Vertical Elevation: +23.000m.
