horizontal-band-saw-1

Report

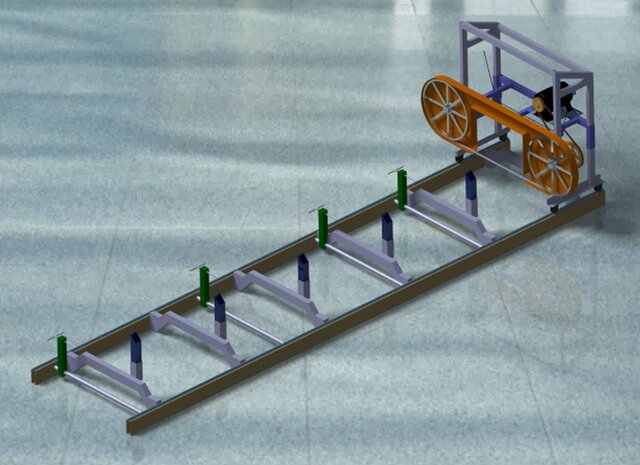

Horizontal Band Saw for timber processing – 3D model designed in CATIA V5. Currently at 70% completion. Features heavy-duty steel frame, adjustable blade tensioning, precision guide rollers, sliding table, and motor mounting. Remaining work includes safety guards, control panel, and 2D drawings. Prioritizes safety, durability, and cost-effective manufacturing for sawmill applications. Software: CATIA V5 Status: Work in Progress (70%)
Published
in 3D Modeling Industrial Design Services Mechanical Design Services
3d-modeling catia-v5 woodworking parametric-modeling horizontal-band-saw timber-saw sawmill-equipment
Rendering Images
