home lift
Another custom traction home lift design completed, engineered for compact residential spaces while maintaining comfort, safety, and performance.
Project Specifications
🔹 Capacity: 320 kg
🔹 Speed: 60 m/min
🔹 5 Stops (G–1–2–3–4)
Shaft
Folded steel structure
Pit: 1400 mm
Overhead: 3600 + 1400 mm

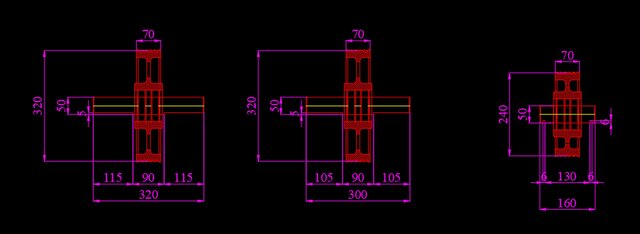

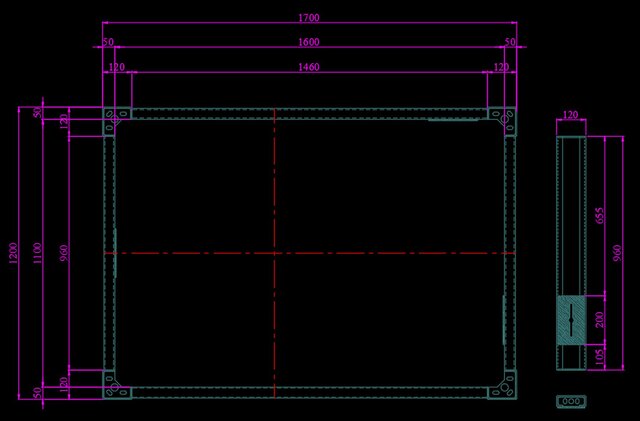

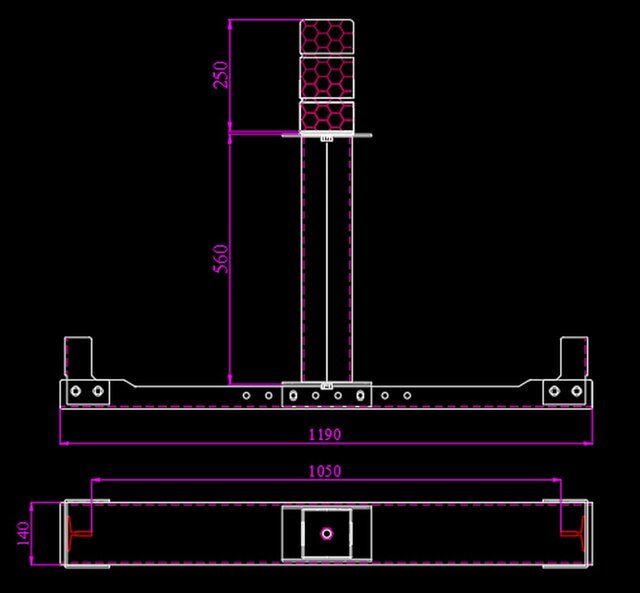

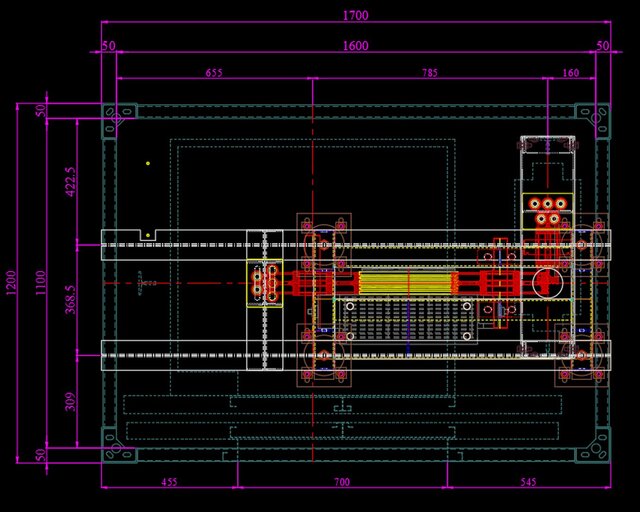

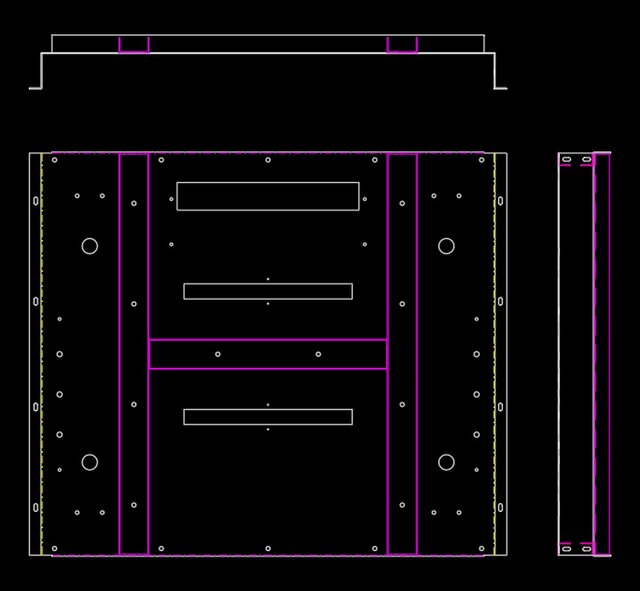

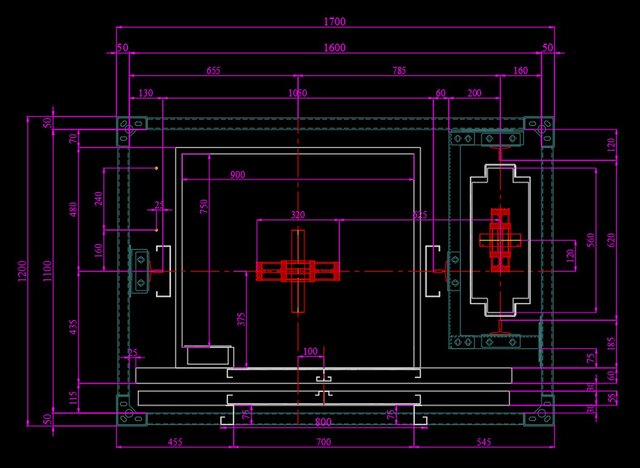

PB: 1700 × 1200 mm
LL: 1600 × 1100 mm

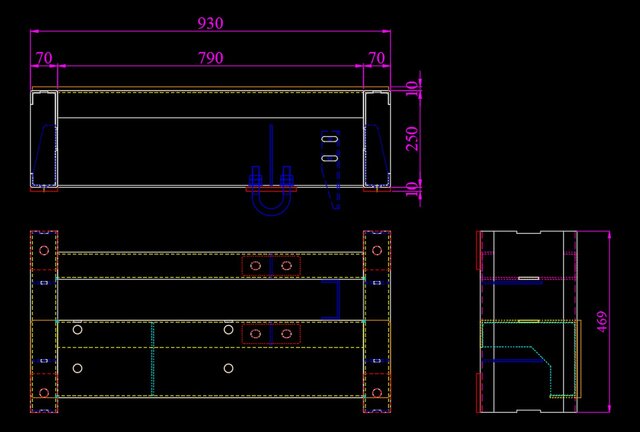

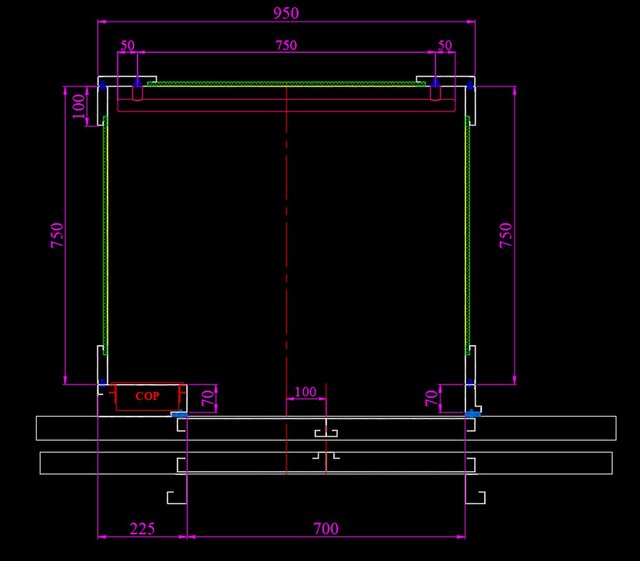

Cabin

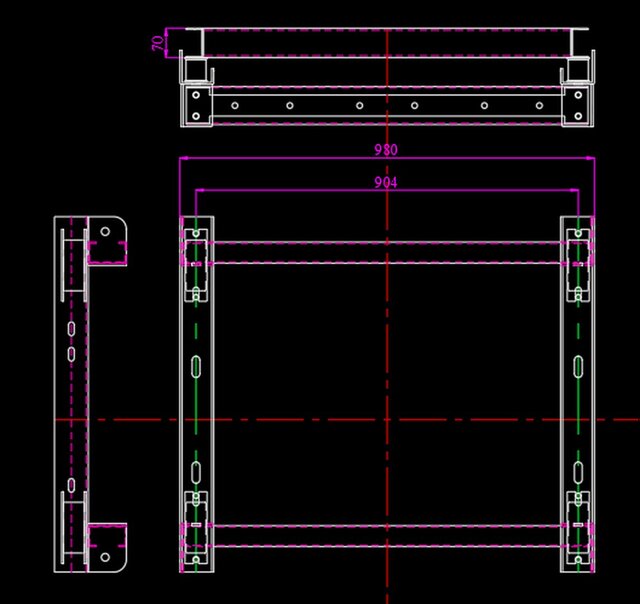

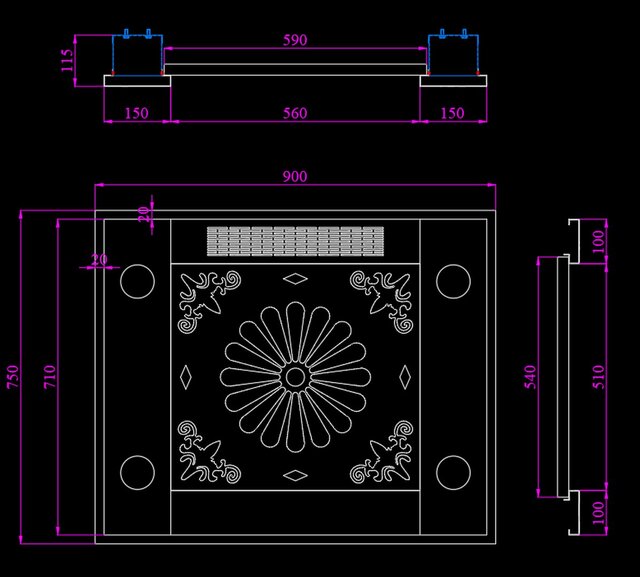

Size: 900 × 750 × 2300 mm

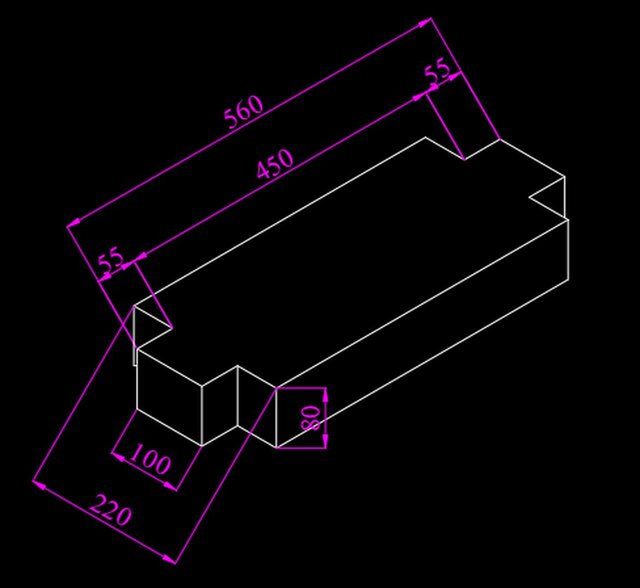

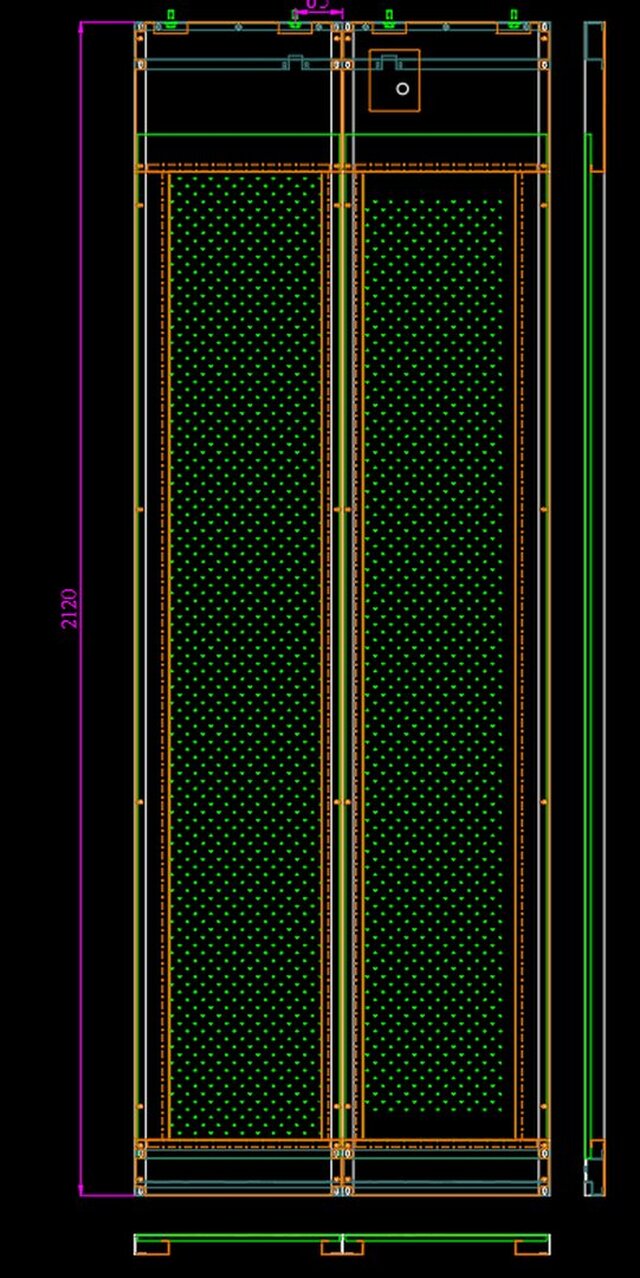

Center-opening automatic door (2CO): 700 × 2100 mm

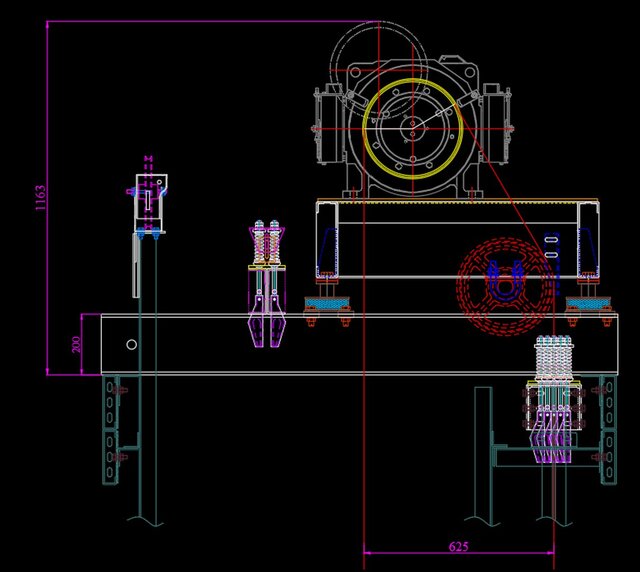

Drive System
TORIN GTW7A traction machine – 4 kW
5 × Ø8 mm steel ropes
Guide rails: T78 / T78
From 3D concept design to complete manufacturing drawings, I provide full mechanical design services for custom elevators, including the cabin, doors, counterweight system, machine layout, and installation drawings.
If you're looking for a reliable partner for custom elevator design, feel free to connect or send me a message.
