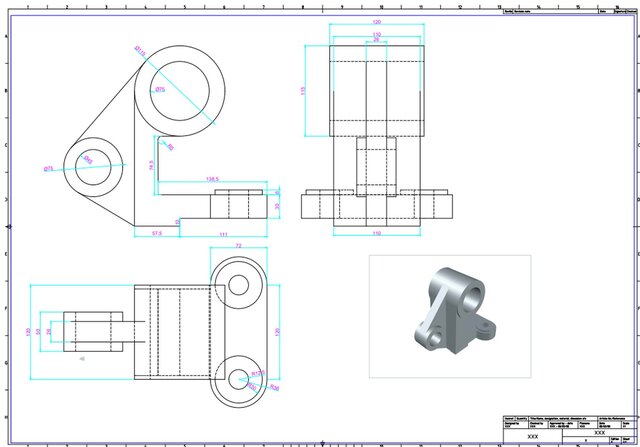

Professional 2D CAD drafting and 3D modeling of a mechanical Hinge Joint Bracket assembly. The drawing includes three views of the part – Front, Top, and Side, as well as a 3D isometric view for reference. Description The part consists of a number of components which are brought together to form a single working unit. The main body of the part has a large pivot on its top, with an outer diameter of 115, while its inner diameter equals 75. Similarly, the component has another smaller pivot located at the bottom of the main body. The smaller pivot has an outer diameter of 75 and an inner diameter of 45. The arm has an angled section, which has an R25 fillet on it, while its height equals 74.5. Along the line, there is also a 138.5 horizontal base located. The base of the bracket has a 57.5 front part and a 111 rear part. It is 30 high. On the Top view, one can see the two lugs of the bracket, as well as the distance between them, which equals 26. Additionally, the top view shows the width of the bracket, which is 110, as well as the two radii – R12.5 and R36. The services offered include mechanical design and drafting, and preparation of manufacturing drawings. The deliverables include AutoCAD drawing files (.dwg, .dxf), 3D modeling files (.step), and/or PDF drawings. All the details are provided with exact dimensions for manufacturing and/or 3D printing.
