High-Performance Opposed Flow Burner High-Accuracy SolidWorks 3D Model

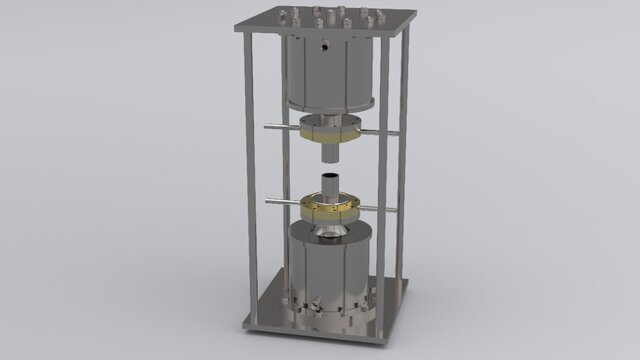

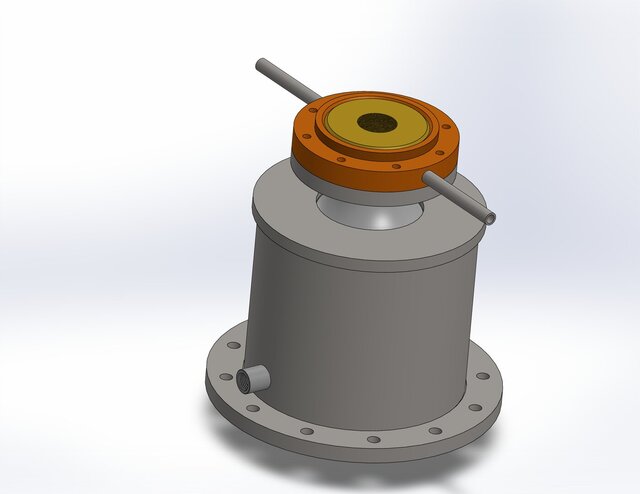

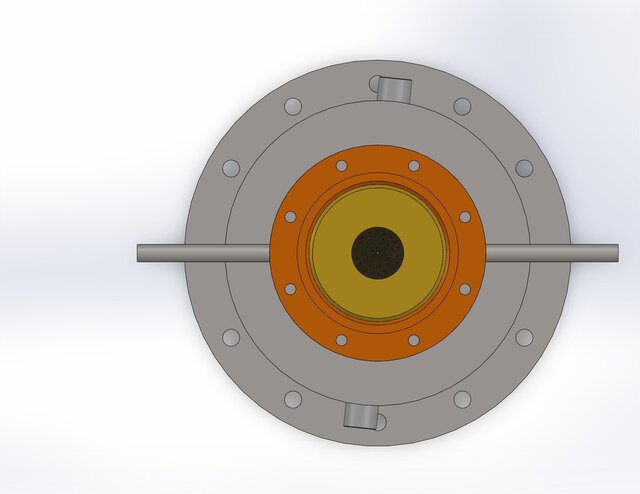

The industrial opposed flow burner is a combustion research device used to study flame behavior under controlled counterflow conditions. It consists of two vertically aligned burners where fuel and oxidizer streams flow toward each other from opposite directions. The interaction of these jets creates a stagnation zone where a stable counterflow flame forms. This setup enables investigation of flame stability, ignition, extinction limits, and combustion kinetics.
