Helical Bevel Gear

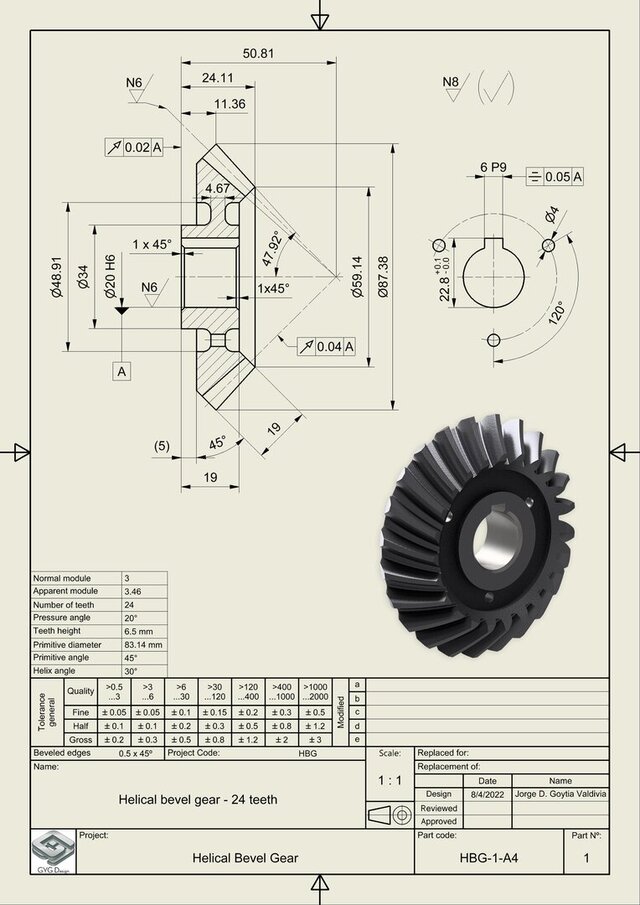

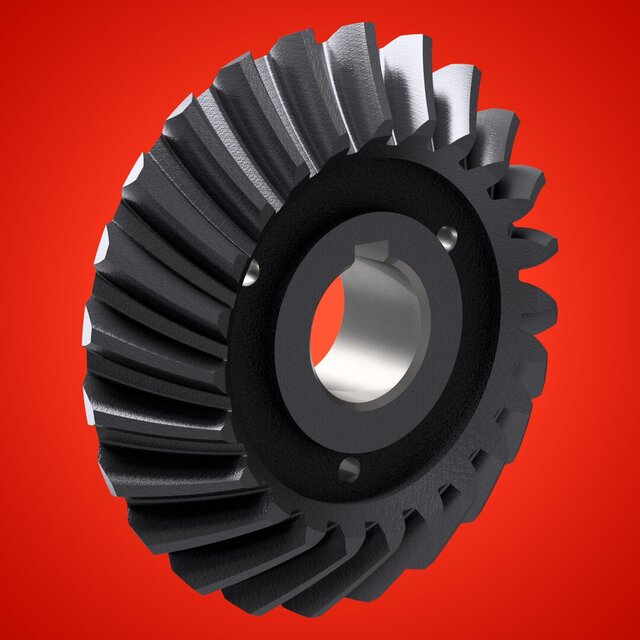

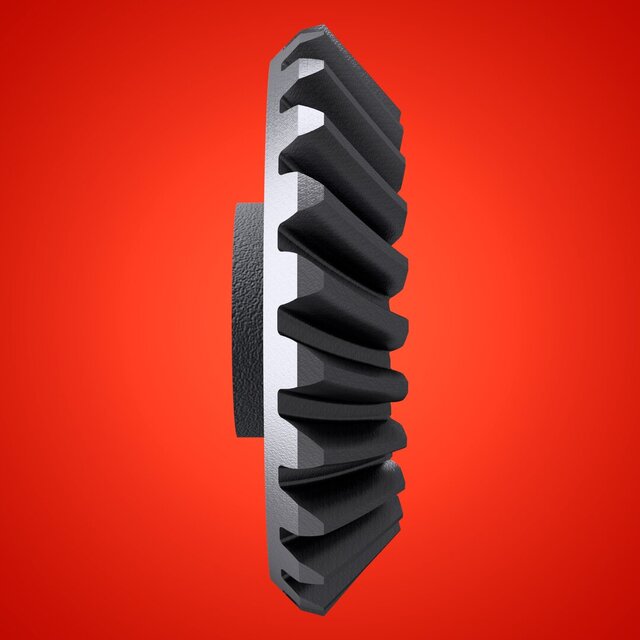

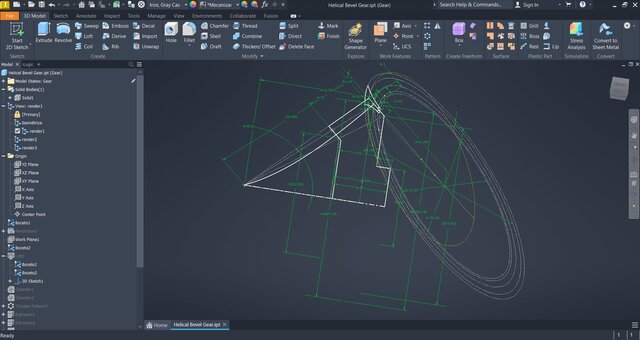

Helical Bevel Gear, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches across different planes within a part file, serving as foundational geometry for the model. Additionally, iLogic was implemented to generate configurable variables and a dialog box with customization options. This precision component features helical teeth cut at an angle for smooth, quiet operation and efficient power transmission between intersecting shafts. The parametric workflow ensures design consistency, facilitates modifications, and enables rapid generation of gear variants with different tooth counts, modules, and pressure angles. Ideal for automotive transmissions, industrial machinery, robotics, and mechanical systems requiring reliable torque transfer and speed reduction. The combination of Skeleton Design and iLogic automation streamlines the design process, allowing efficient customization while maintaining precise geometric relationships.
