Heavy-duty-nema-motor-mount

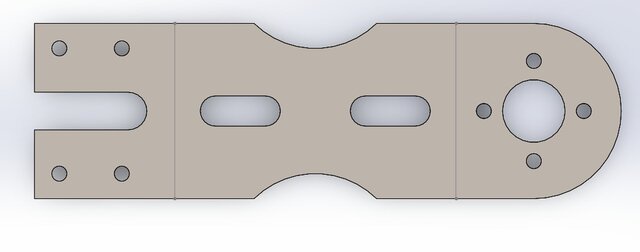

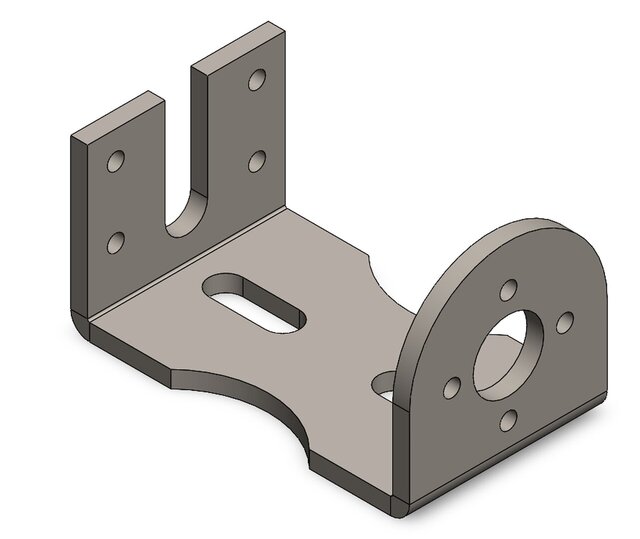

A robust sheet metal mounting solution for industrial motors. This part highlights the ability to integrate standard component mounting patterns into a folded structural frame.Technical Highlights:Precision Bolt Patterns: Features a standard 4-bolt circular mounting pattern for motor faces, centered on a large clearance hole.Structural Flanges: Utilizes $90^\circ$ edge flanges with specific relief cuts to ensure structural rigidity while maintaining a compact footprint.Design for Assembly (DFA): Includes various slotted mounting points to account for assembly tolerances and ease of installation.
