HEAT EXCHANGER TYPE H-AES (STACK)

Report

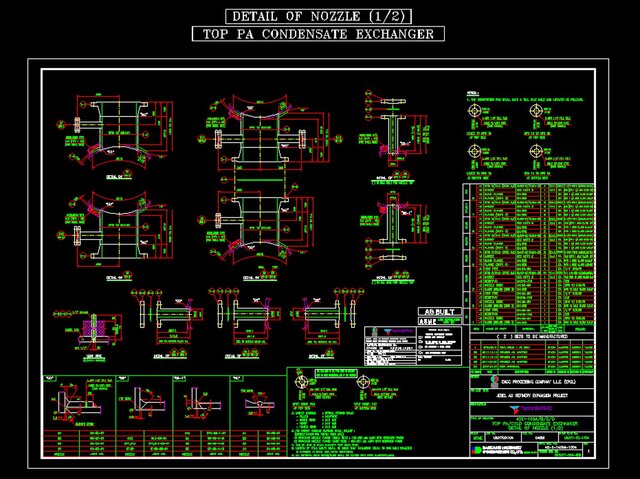

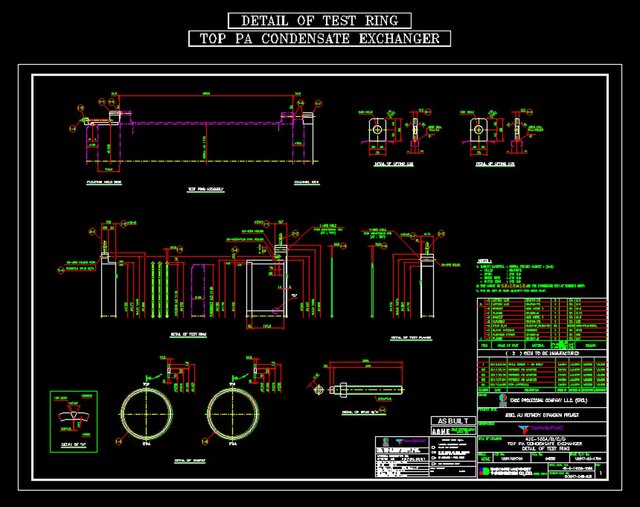

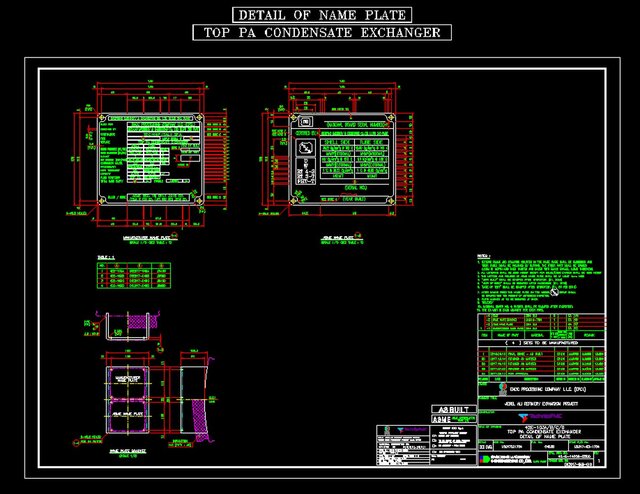

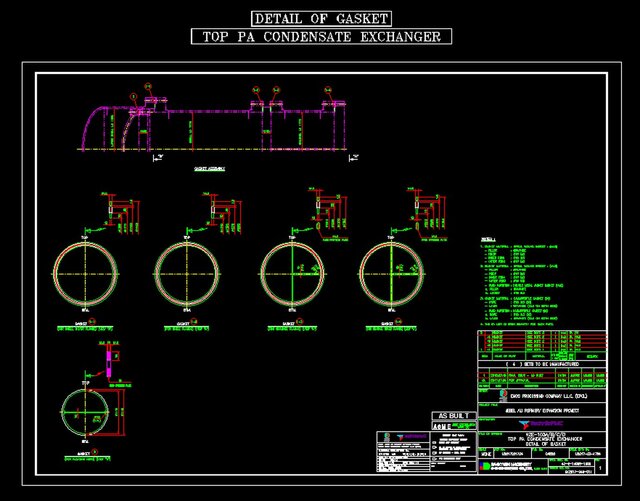

A comprehensive set of fabrication drawings for a Top PA Condensate Exchanger (Type 42E-103A/B/C/D), developed for the Jebel Ali Refinery Expansion Project. This drawing package includes: * General Assembly drawing illustrating the stacked configuration of the heat exchangers. * Detailed fabrication drawings for the exchanger body, bundle, saddle, nozzle, insulation clip, test ring and name plate. * Multiple detailed views, sections, and weld seam plans for precise manufacturing. * A complete Parts List (Bill of Materials) and Bolt Torque Table for assembly.
Published
in Fabrication Drawings Services 2D CAD Drafting Services Mechanical CAD Design
assembly heat-exchanger vessel-design shop-drawing drafter process-engineering shell-and-tube-heat-exchanger 2d-cad-design refinery assembly-drawing
