Hand Tap Tool

Report

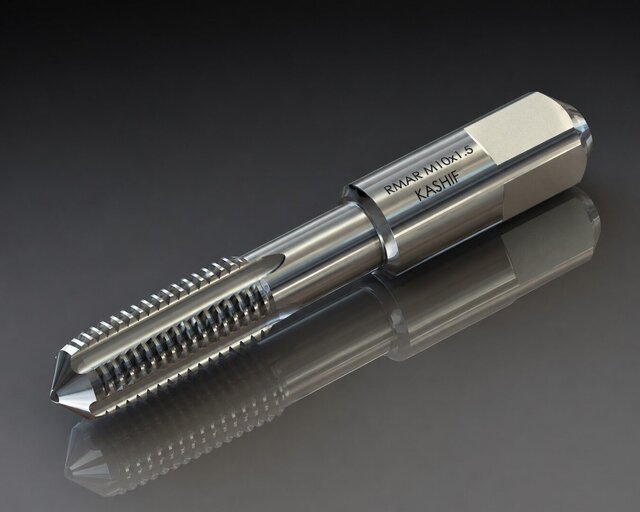

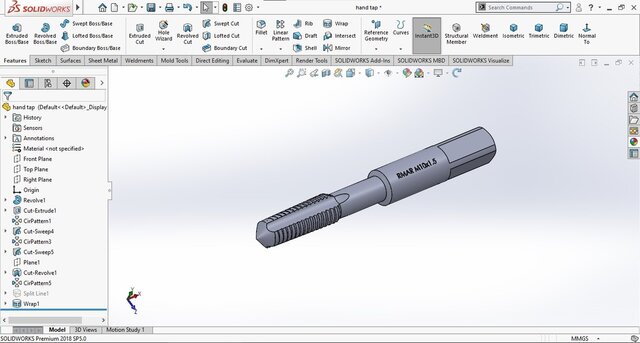

Designed a precision hand tap tool (M10x1.5) in SolidWorks with accurate thread geometry, flutes, shank, and square drive end. The model includes detailed engraving and realistic metallic rendering. This project demonstrates strong skills in precision mechanical tool design suitable for manufacturing and industrial applications.
Published
in Tool Design Services SolidWorks Design Services Mechanical CAD Design
solidwokrs 3d-rendering 3d-model machine-and-tool-design mechinical-design mechincal-design-engineer
Rendering Images
