Hand Crank Generator

Report
Hand Crank Generator with a 64 to 1 gear ratio acting as a skill multiplier. The design is made to keep the space minimum while keeping function. The gears are designed so only two unique gears have to be printed and then can be combined. The assembly uses three stages to gain a 64 to 1 ratio, each stage with a 4 to 1 ratio.
Published
in 3D Printing Design Prototype Design Engineering Mechanical CAD Design
3d-design 3d-design-3d-modeling gears 3d-modelling-and-design mechancial-3d-cad-modeling mechancialdesign 3d-prinitng

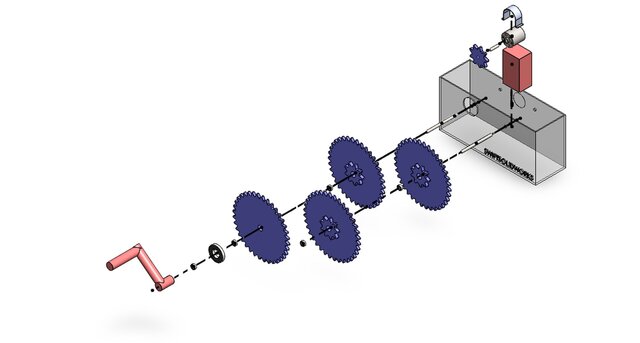

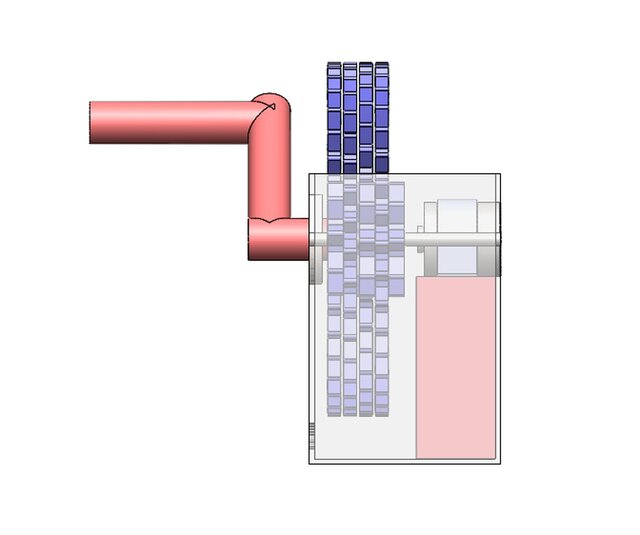

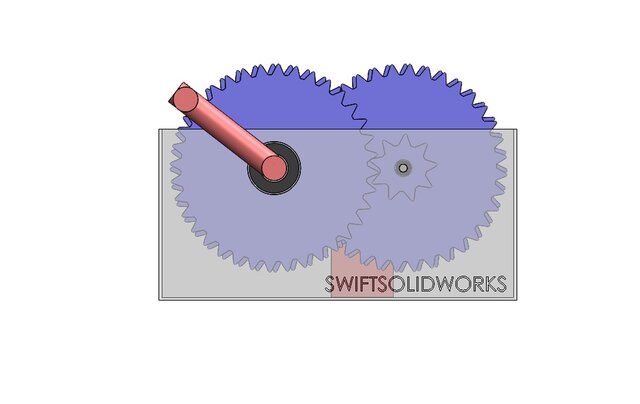

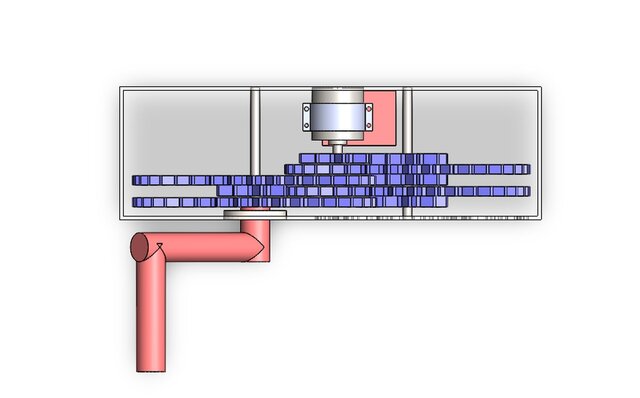

Rendering Images
