Fire Escape Staircase Design & Fabrication Drawings for Hotel_Germany

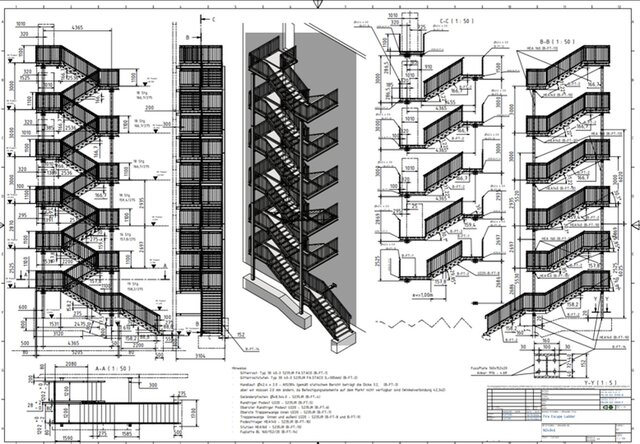

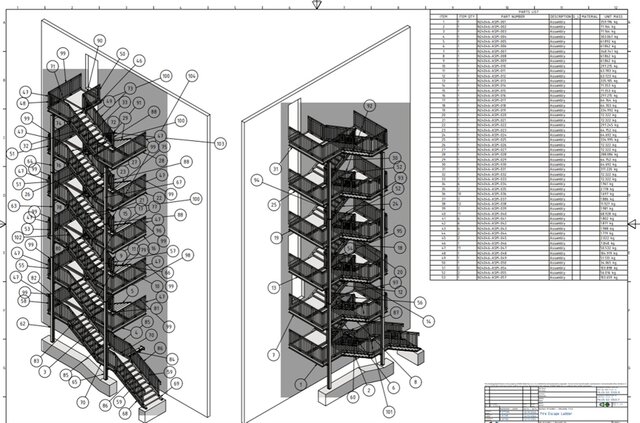

This project focused on the redesign and detailing of a steel fire escape staircase for a seaside hotel in Germany. Based on architectural drawings and structural calculation files, the staircase was fully re-engineered for fabrication and installation. All connection plates, bolted joints, and structural members were analyzed and rebuilt in a 3D CAD environment. The scope included complete fabrication and assembly drawings, DXF/DWG production files, and a detailed bill of materials to ensure efficient manufacturing and on-site installation.
