Geometric Diamond Signet Ring | Rhino Jewellery CAD Design

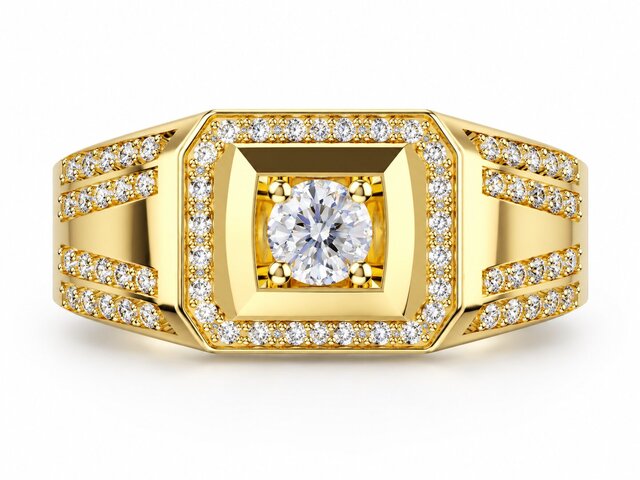

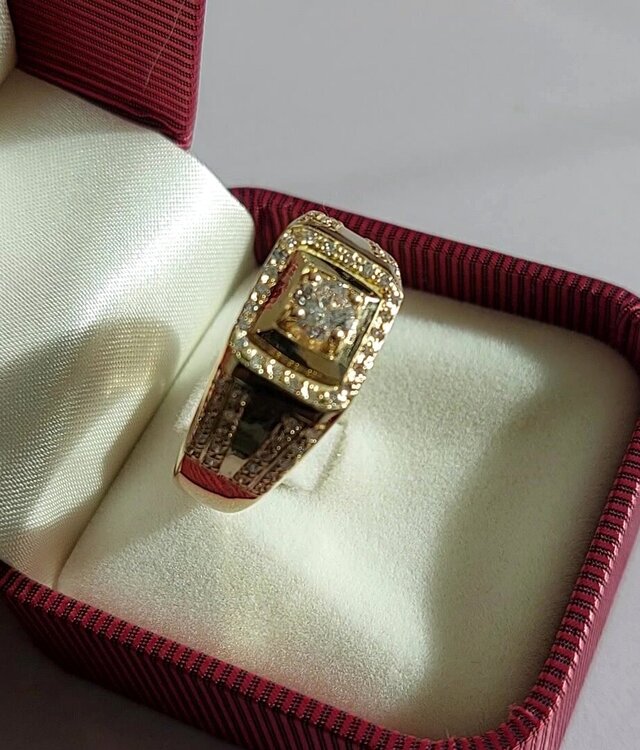

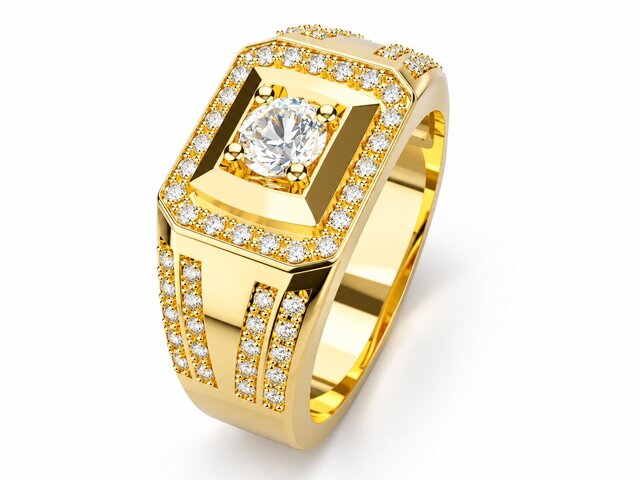

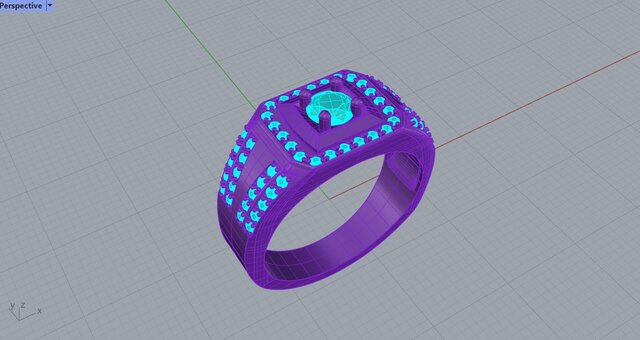

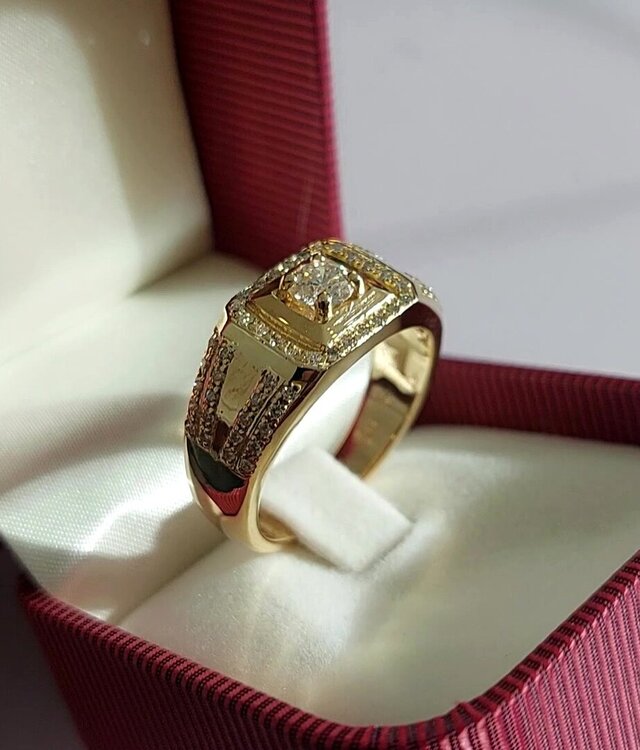

Geometric diamond signet ring developed in Rhinoceros 3D, featuring a raised rectangular head with clipped corners, a four-prong round centre stone, a pavé-set diamond border and decorative diamond-set shoulders. The CAD work included modelling the ring's geometric structure, developing the centre setting and arranging the smaller stone settings along the head and shoulders. The portfolio presents the Rhino CAD model, rendered design views and photographs of the finished jewellery to demonstrate the progression from digital modelling to physical production. Software: Rhinoceros 3D (Rhino) Skills demonstrated: Jewellery CAD modelling, geometric design development, gemstone setting layouts and manufacturing-oriented 3D modelling.
