Gear wheel

Report

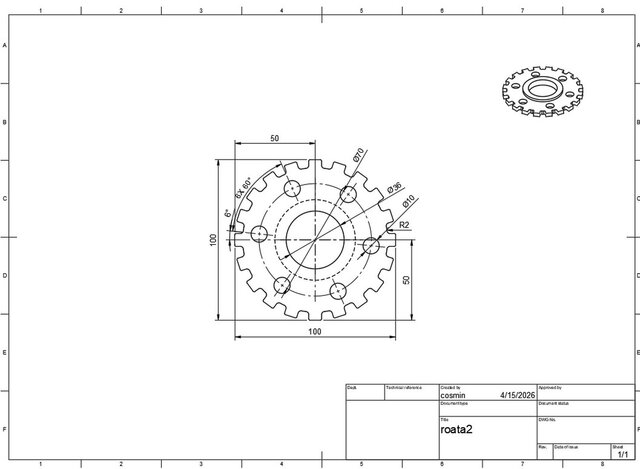

This project includes the 3D CAD design of mechanical gear wheels along with a detailed 2D technical drawing. The design focuses on accurate tooth geometry, proper dimensions, and correct mechanical alignment for potential use in gear systems. The 2D drawing provides clear measurements and multiple views for manufacturing reference.
Published
in Engineering Design Mechanical 3D Rendering Mechanical CAD Design
autocad fusion-360 3d-rendering-design mechanical-cad-design autocad-2d-design 3d-engineering industial-design
Rendering Images
