Full Rack from 10 to 50 kg

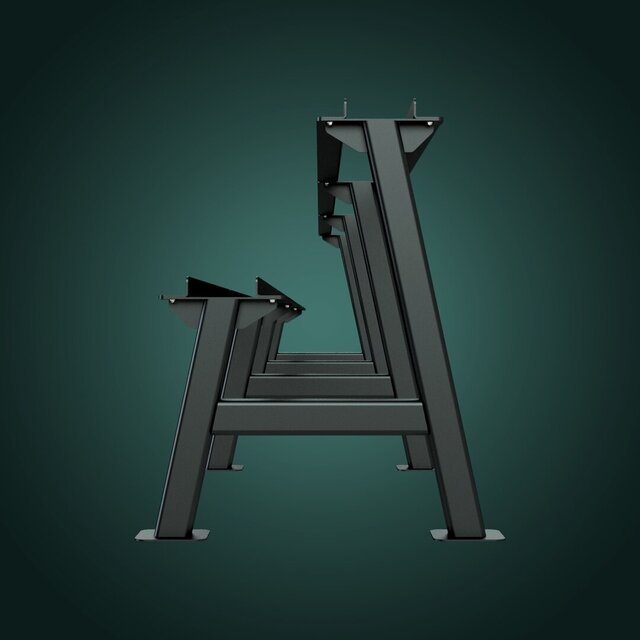

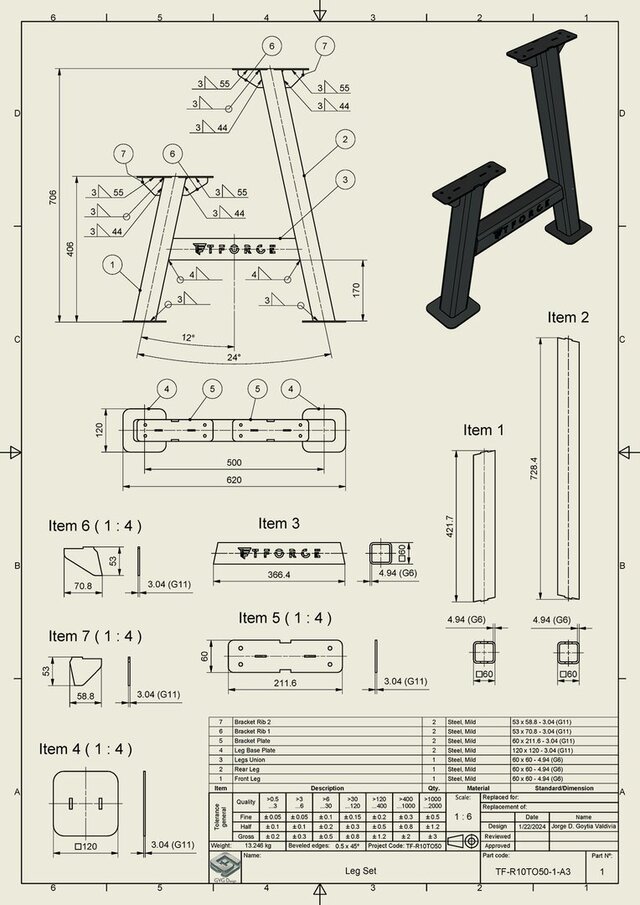

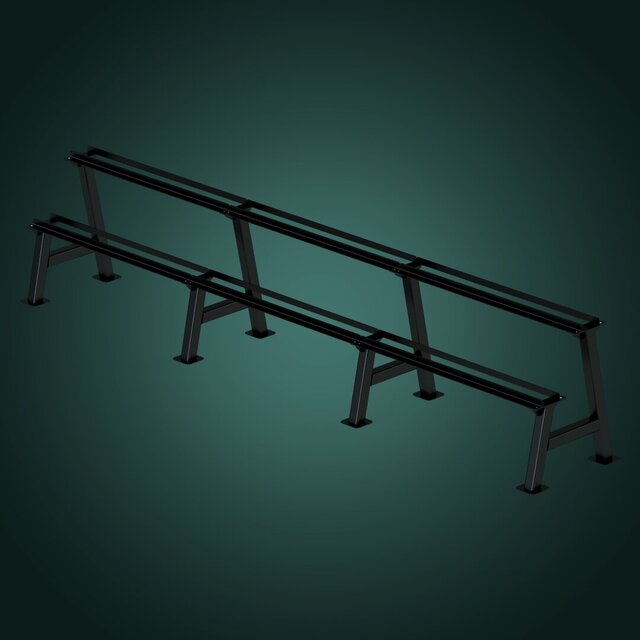

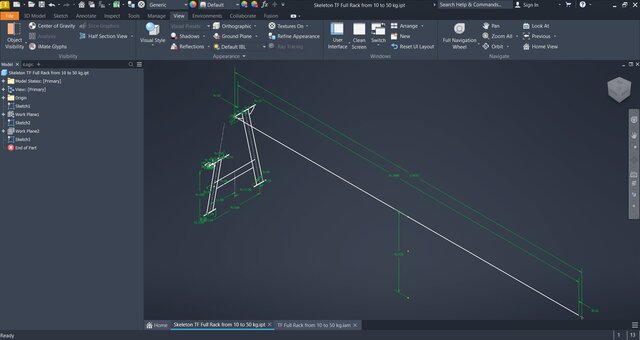

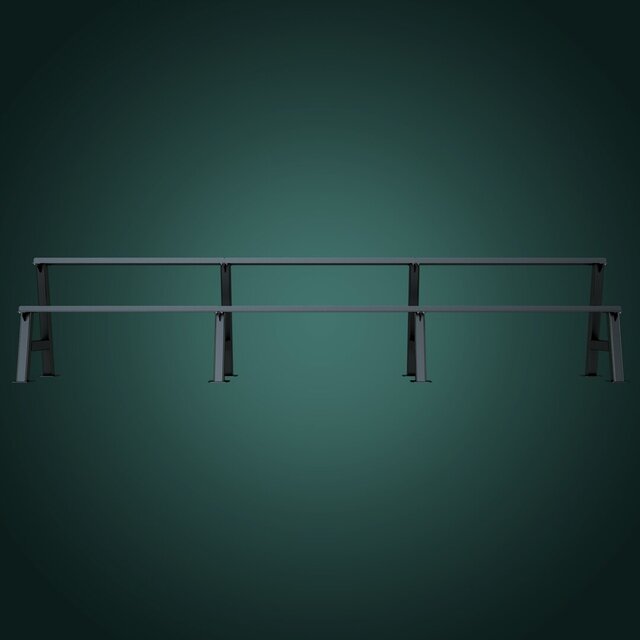

The Hexagonal Dumbbell Rack is a two-tier storage system designed to organize dumbbells from 10 to 50 kg, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches distributed across different planes within a master part file, serving as the foundational geometry for all components and sub-assemblies throughout the model. The structure features dual horizontal levels supported by reinforced A-frame legs with floor mounting plates for maximum stability. The parametric workflow ensures design consistency, facilitates modifications, and maintains precise relationships between all structural elements. This professional-grade rack provides efficient storage and easy access to weights in commercial gyms, personal training studios, or home fitness spaces. The robust construction accommodates progressive weight training needs while optimizing floor space through intelligent vertical organization.
