Full Engineering & Design of a Passenger/Cargo Ropeway System

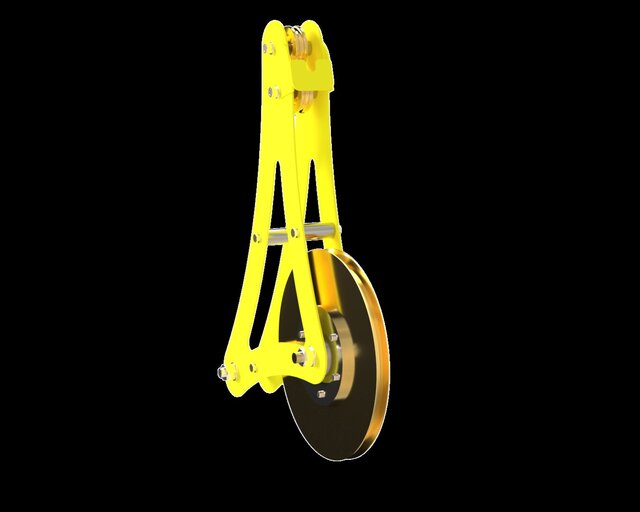

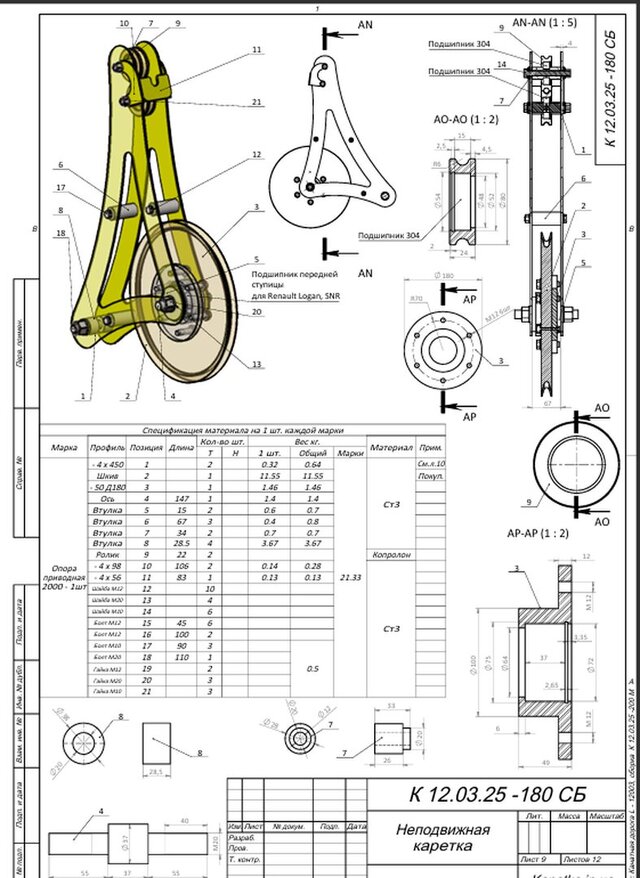

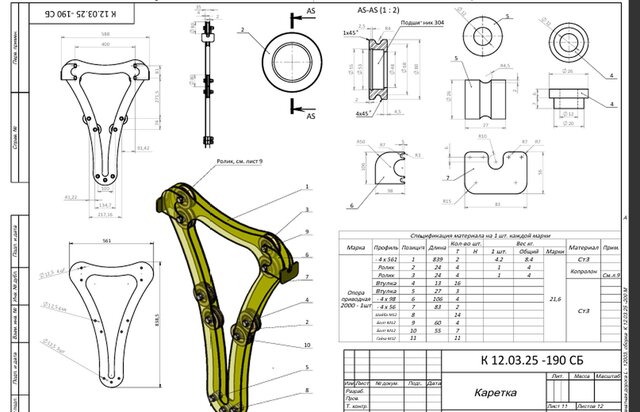

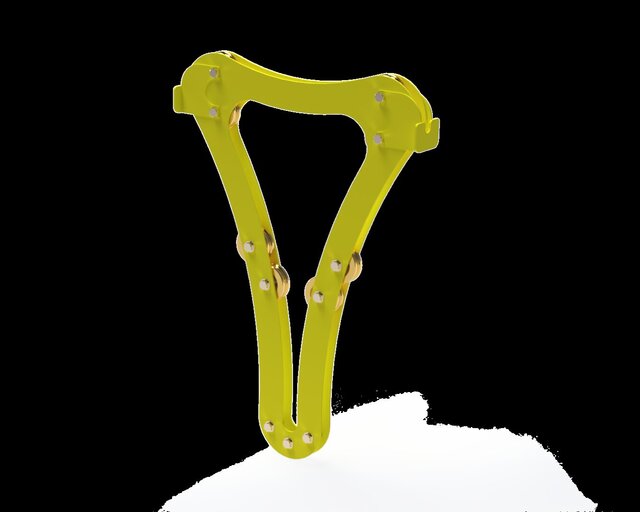

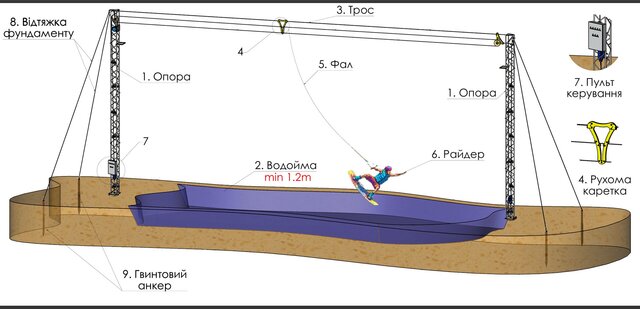

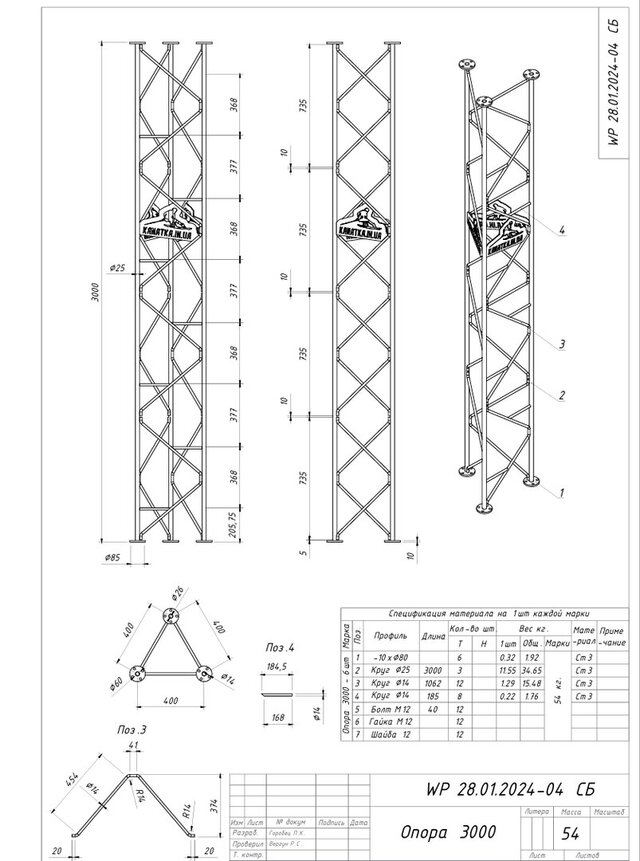

Project: Passenger/Cargo Cableway System – Full Engineering Lifecycle Comprehensive design of a high-load cable transport system (wake park infrastructure) from conceptual layout to precision component engineering. Precision Carriage Engineering: Developed mobile and stationary carriage units featuring high-durability rollers (Caprolon) and integrated bearing assemblies (SNR/Renault standards). Structural Mast Design: Engineered 3000mm triangular lattice towers optimized for wind loads and tension forces, including screw anchor foundation systems. System Integration: Full assembly management in SolidWorks, ensuring perfect synchronization between drive systems, support structures, and moving components. Manufacturing Package: Complete technical documentation (BOM, 2D drawings) with optimized material selection (St3, Caprolon) and safety factor verification.
