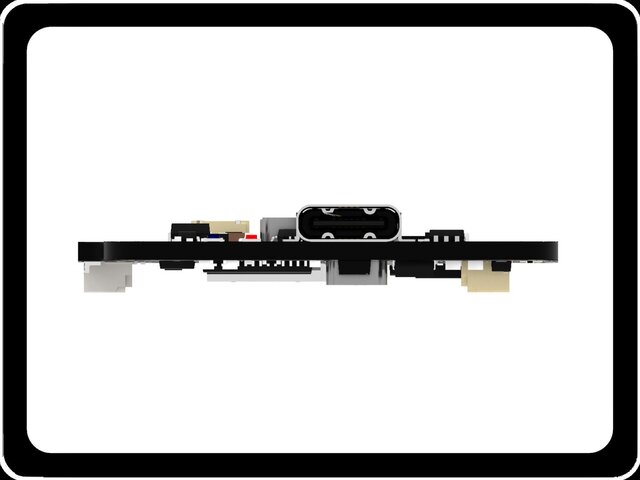

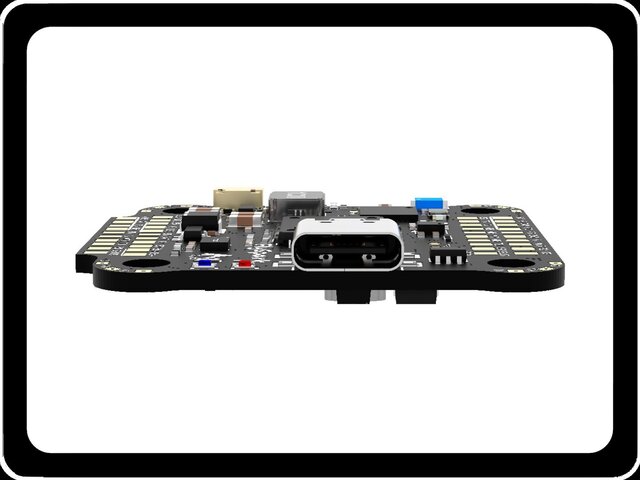

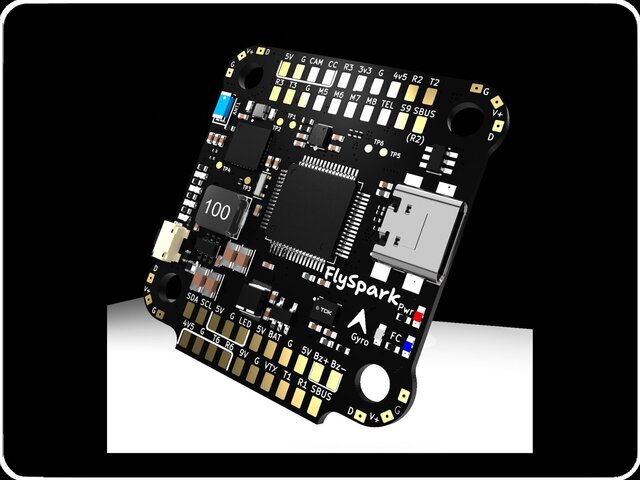

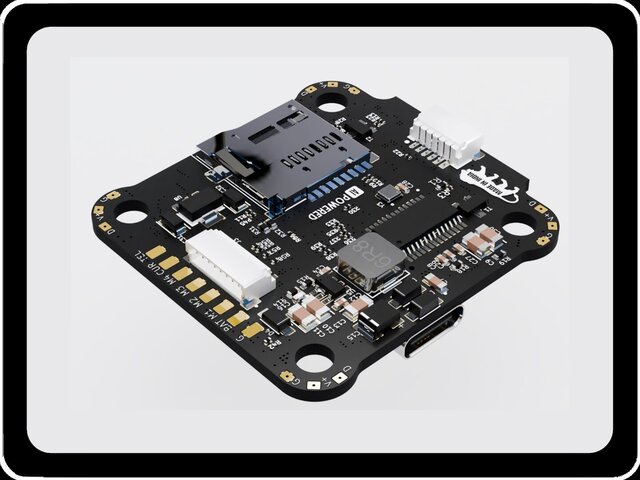

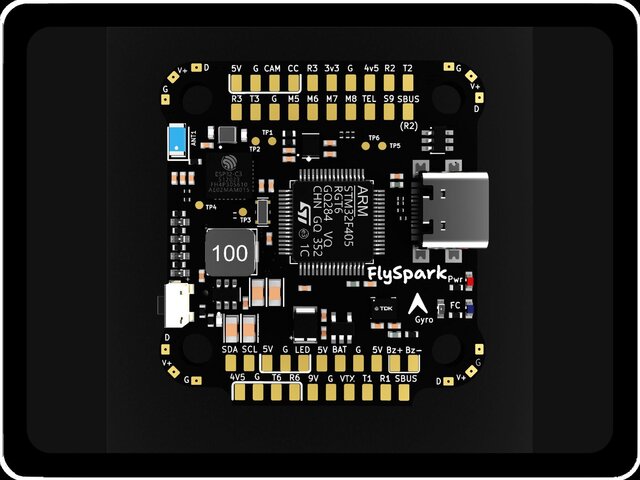

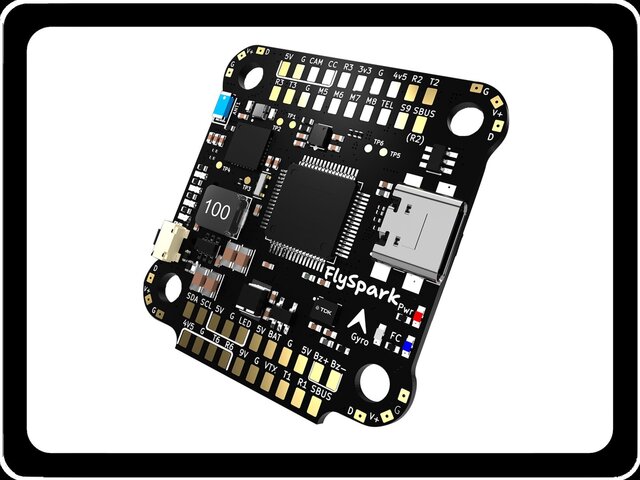

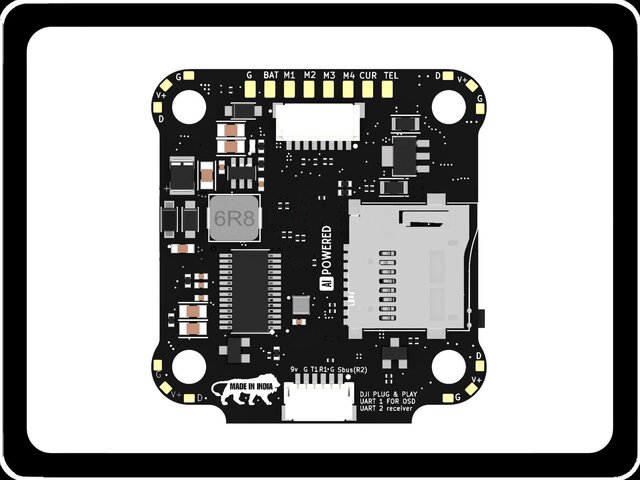

FPV Drone Flight Controller Design
Project Requirement:

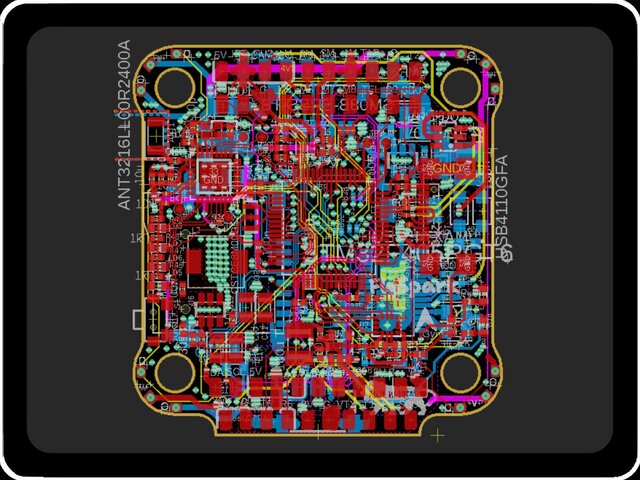

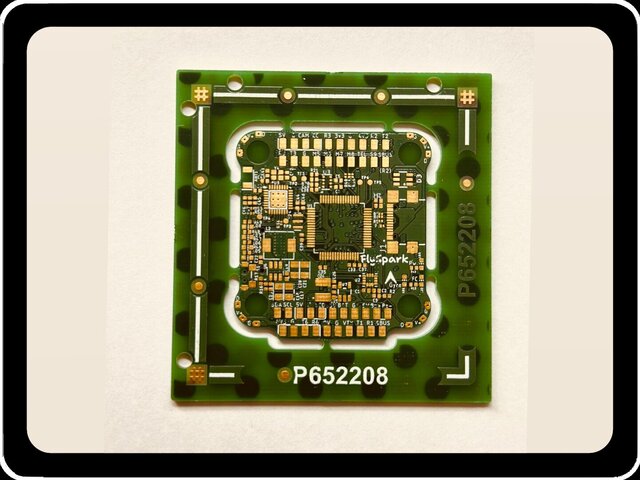

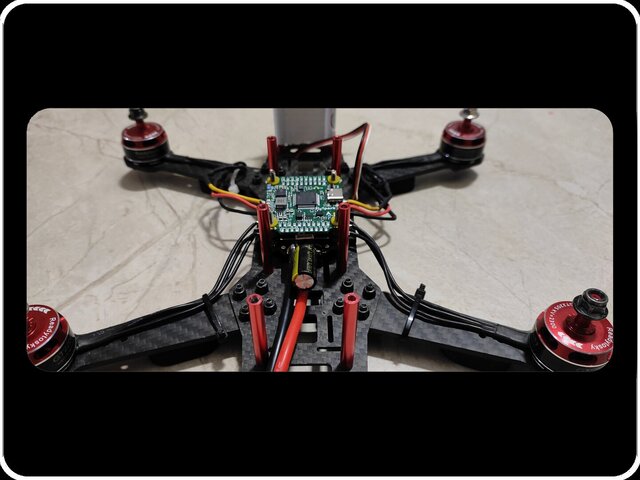

Develop a low-cost, hobby-grade Flight Controller using STM32F405, compatible with Betaflight, INAV, & Ardupilot. The PCB is designed to fit 30x30 FPV frames.
Key Features:
1. Wireless BLE connectivity via ESP32 SoC for easy configuration.
2. Filtered LDO power supply for IMU sensor.
3. Supports 6S batteries.
4. 3A 5V & 9V BEC supply.
5. Onboard battery level LED bar.
6. Built-in barometer.
7. RGB LED strip support.
8. SD card slot.
9. OSD functionality.
This project delivers an advanced yet affordable flight controller suitable for hobbyists.
