FOUR JAW CHUCK ASSY IN SOLIDWORKS

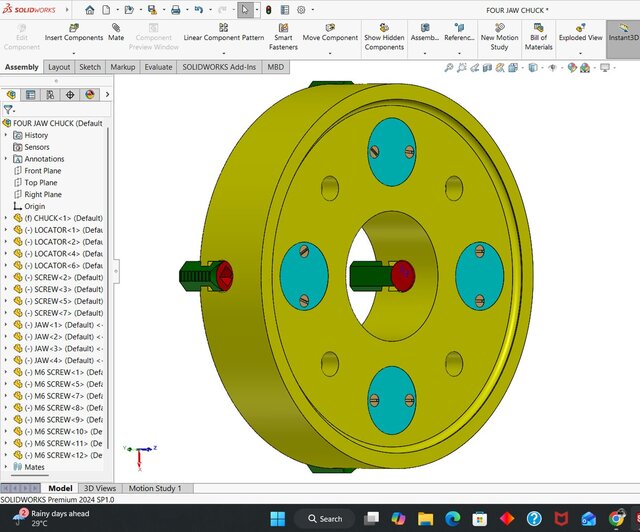

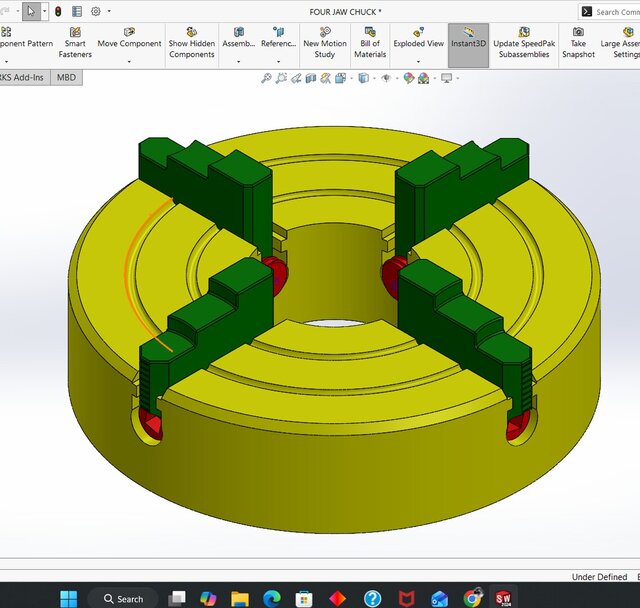

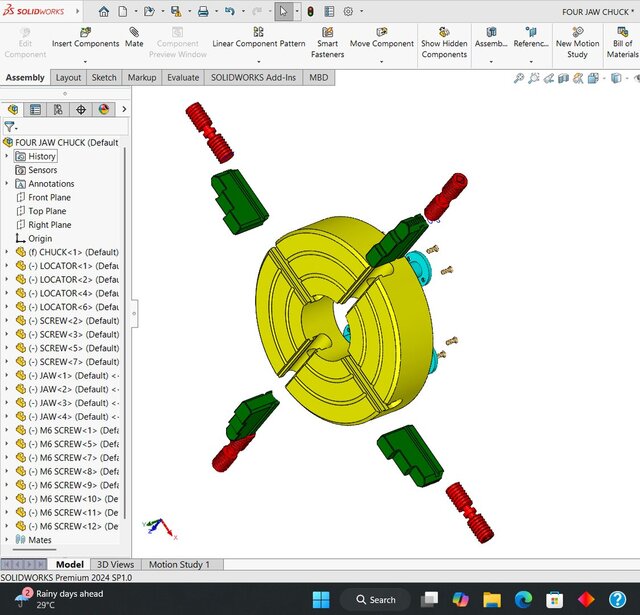

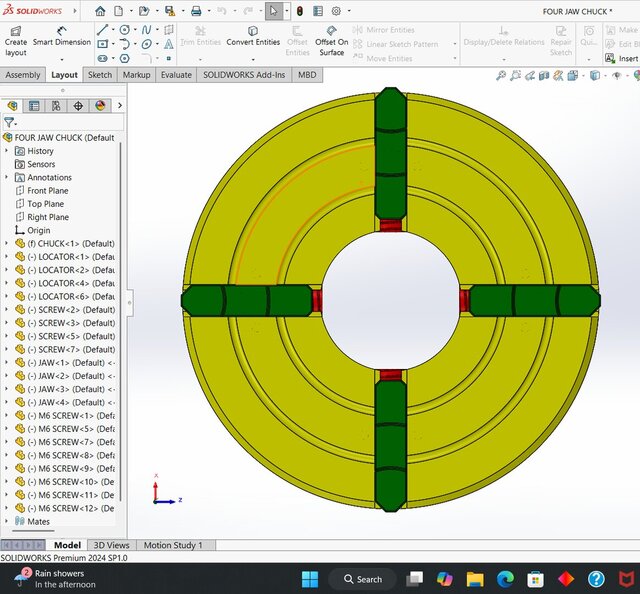

Today I am showing you the Four Jaw chuck prepared by me in SOLIDWORKS Dassault Systèmes The main purpose of a 4-jaw self-centering chuck is to hold square stock. It can also be useful in holding thin wall round tubing that will collapse easily. The round stock that is held in this chuck must be perfectly round and can not be at all elliptical or one of the jaws will not grip. This SOLIDWORKS assembly includes a chuck, locator, screw, jaws, and base Take a look at the assembly made in SOLIDWORKS assembly feature
