Formula Student Front Wheel Hub Assembly Design & FEA Validation

Report

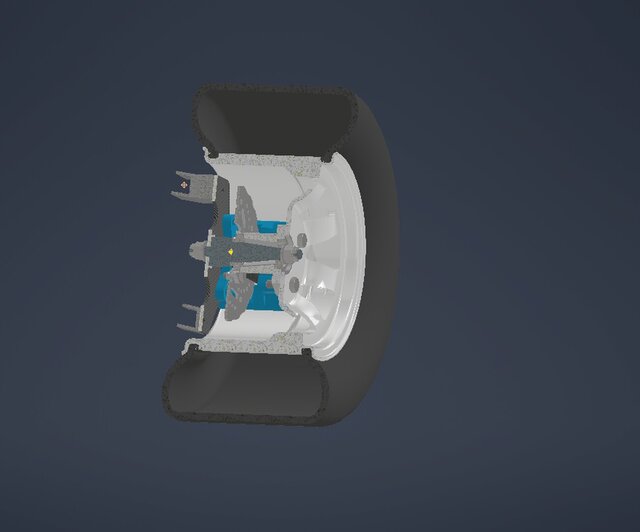

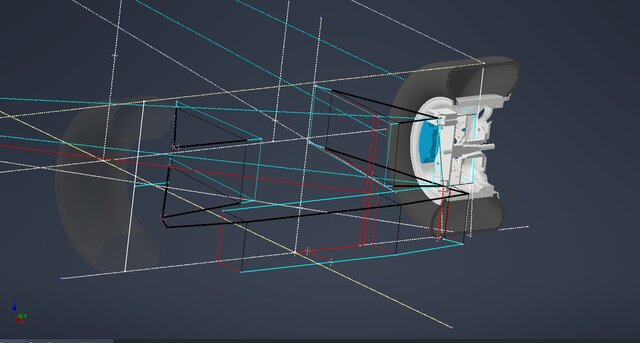

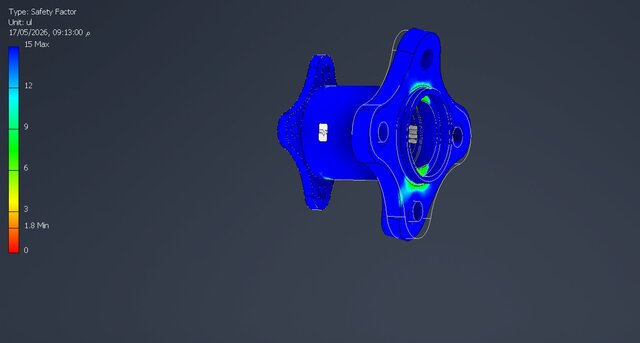

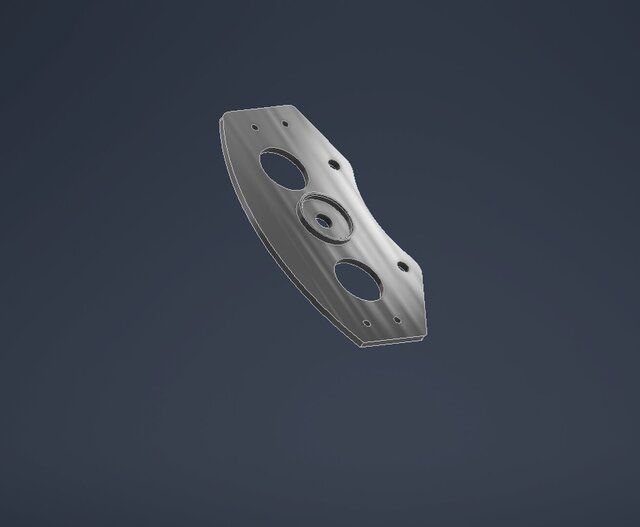

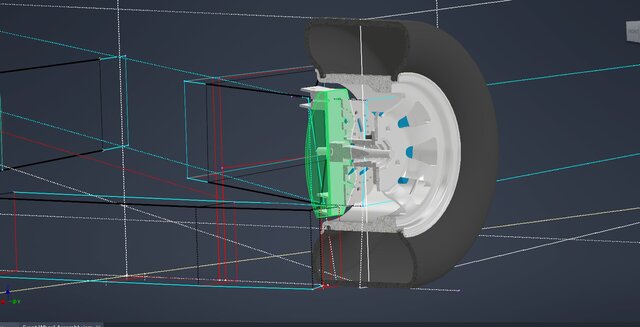

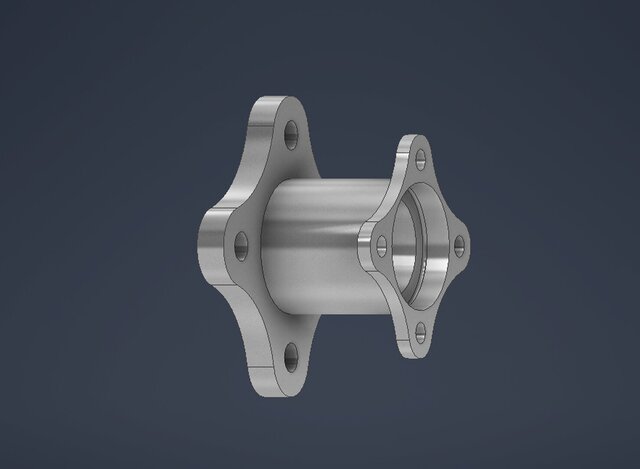

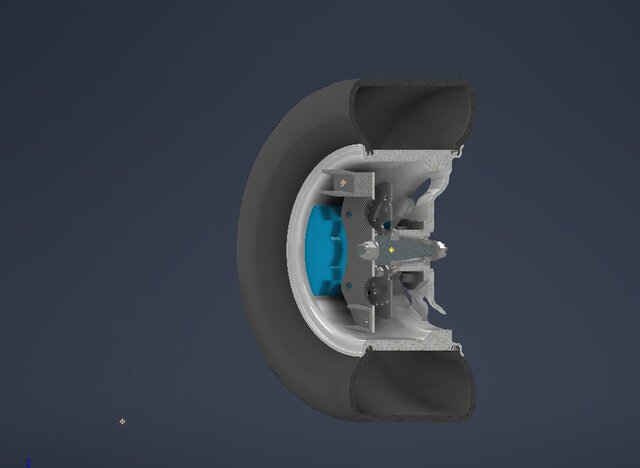

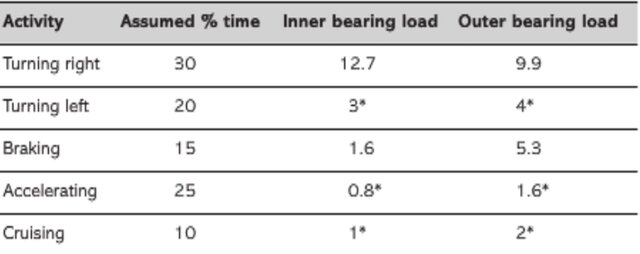

Designed and analyzed a Formula Student front wheel hub assembly including the wheel hub, stub axle, mounting brackets, and wheel assembly. The project involved: • 3D CAD modeling and assembly design • Bearing and mounting considerations • Structural FEA validation under multiple load cases • Cornering, braking, and acceleration load analysis • Stress and deformation evaluation • Design optimization for strength and manufacturability Software Used: Autodesk Inventor Skills Demonstrated: Mechanical Design, CAD Modeling, Assembly Design, FEA, Automotive Engineering, Formula Student Design
