Folding Umbrella Mechanism — 3D CAD Assembly

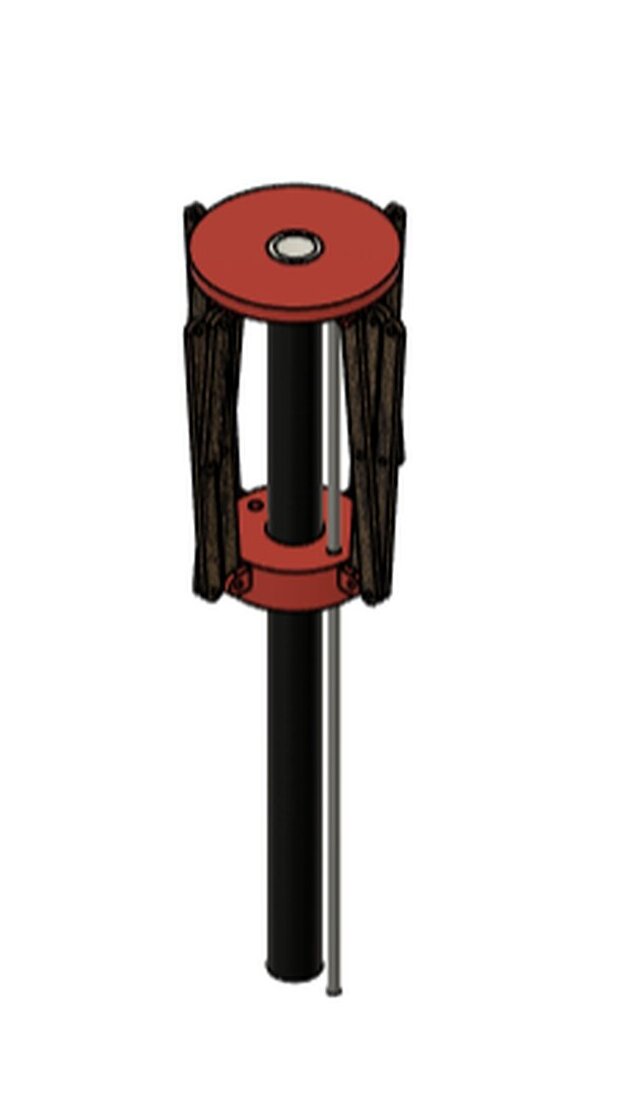

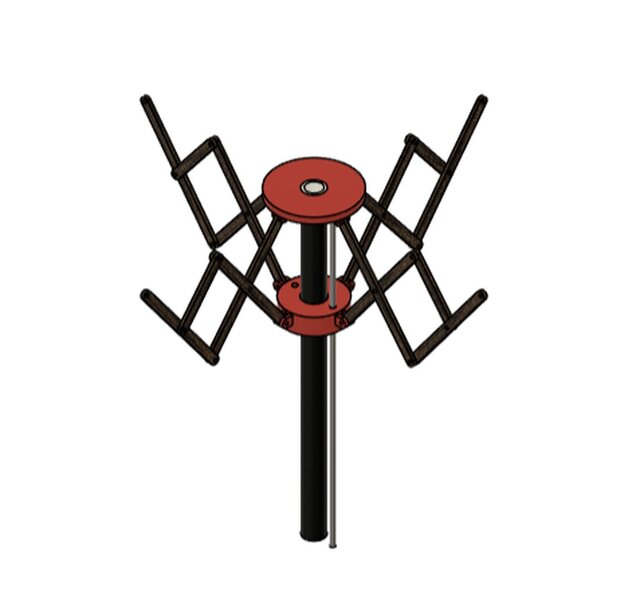

A 3D CAD model of a folding umbrella mechanism designed using Autodesk Fusion 360. The assembly consists of a central shaft, sliding hubs, and interconnected folding arms arranged to support a collapsible structure. The design focuses on component arrangement, linkage geometry, and the relationship between moving parts during folding and deployment. Key features: • Central shaft and sliding hub assembly. • Multiple interconnected folding arms. • Symmetrical mechanical arrangement. • Component positioning and assembly integration. • Mechanical linkage design for a collapsible structure. This project demonstrates 3D CAD assembly modeling, mechanical component design, and the application of geometric relationships to a folding mechanism.
