Flanged ball valve · assembly, exploded view and part drawings

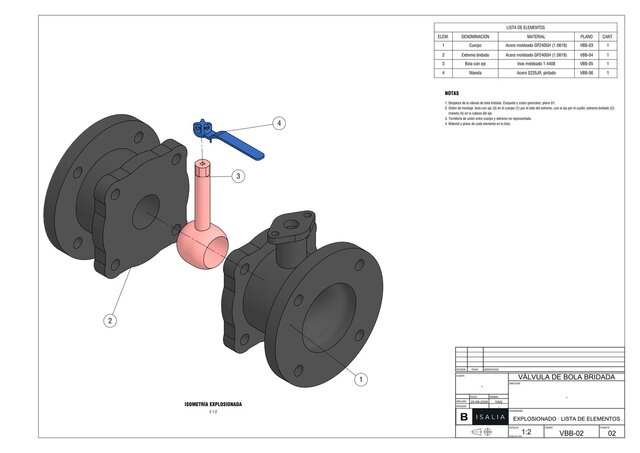

210 long face to face and 200 flanges with four 16 holes on a 160 circle. Assembly dimensioned at 1:2 and drawn in the open position, exploded view with the four parts and the material of each, and a manufacturing drawing per part: body, flanged end, ball with stem and lever.
valve fabrication-drawing exploded-view flange ball-valve
