Five-Piece Door /3D CAD Model and Manufacturing Drawings

Report

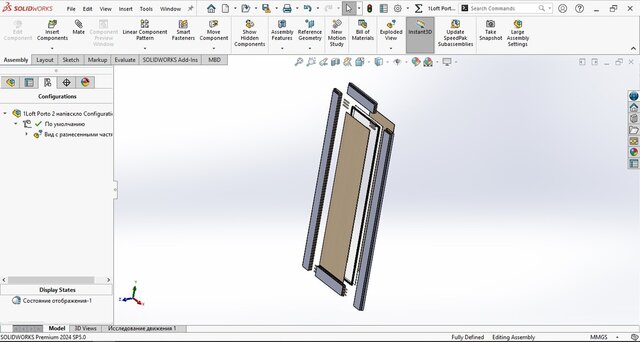

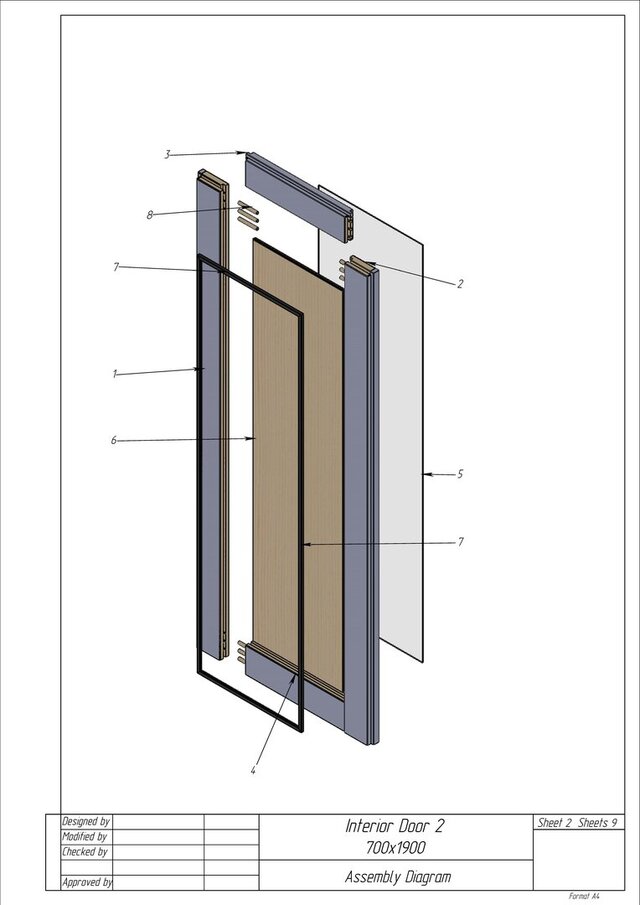

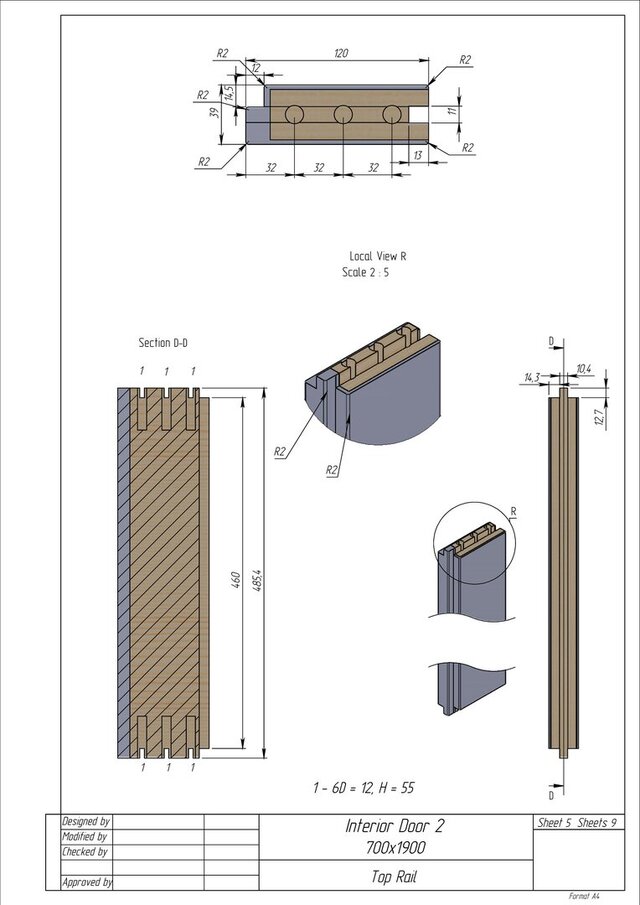

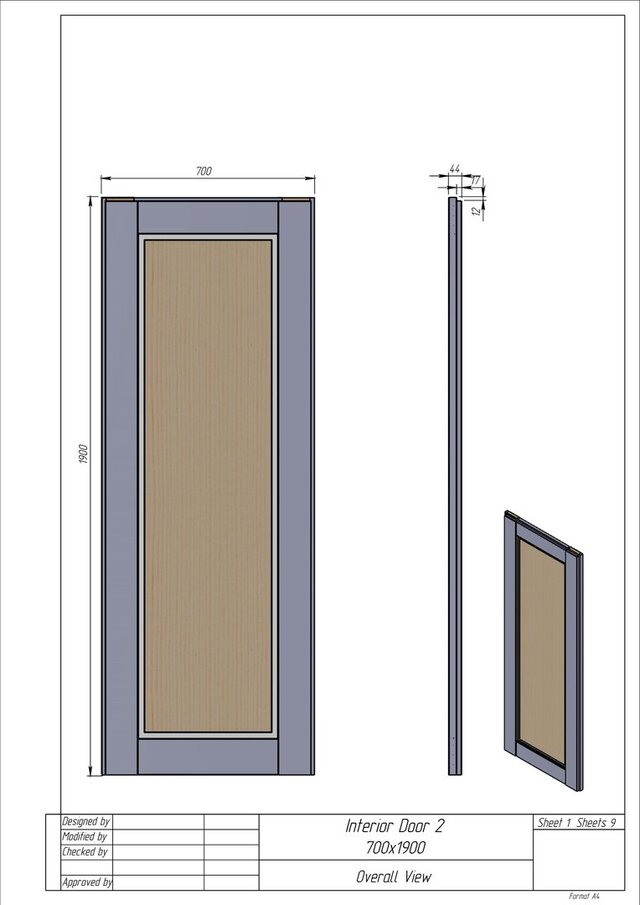

Parametric 3D modeling and detailed manufacturing drawings of a five-piece frame door created in SolidWorks. The project includes individual part modeling, door assembly, multiple configurations, and a complete drawing set for CNC production.
Published
in Furniture Design SolidWorks Design Services 2D to 3D Modeling
construction solidworks manufacturing 3d-modeling cad-drafting furniture-design
Rendering Images 3D PDF Files
