Filter Trolley: Fabrication Pack

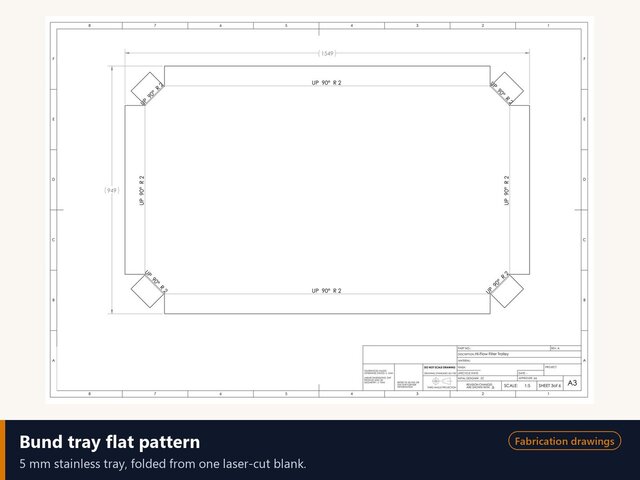

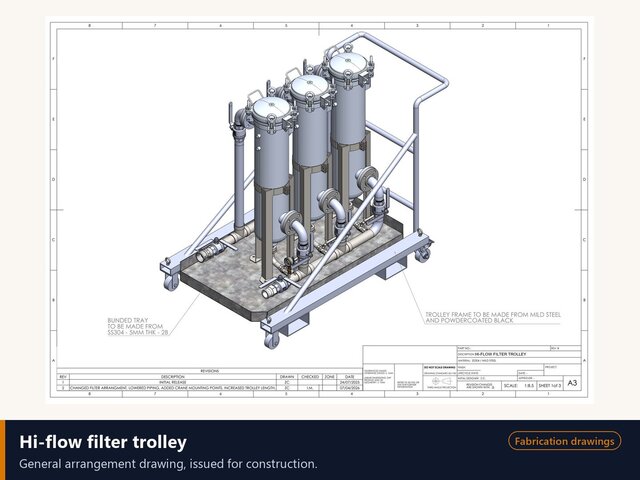

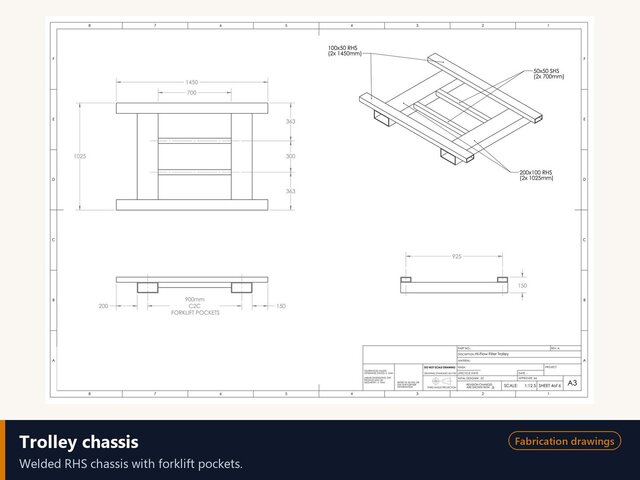

A bunded trolley that carries three high-flow bag filters. The fabricator built it from my drawings alone, with no designer on call. The chassis is welded mild steel with forklift pockets and crane eyes. The 5 mm 304 stainless bund tray folds from one flat pattern, and the trolley runs on 100 mm castors. You get: a six-sheet drawing pack that a fab shop can price and build as is. It has the general arrangement with parts list, part details, the flat pattern and the chassis weldment.
