Filter Box

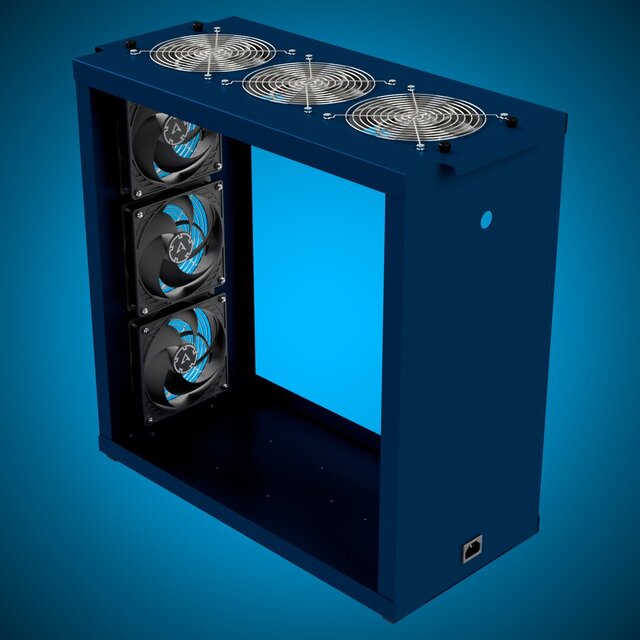

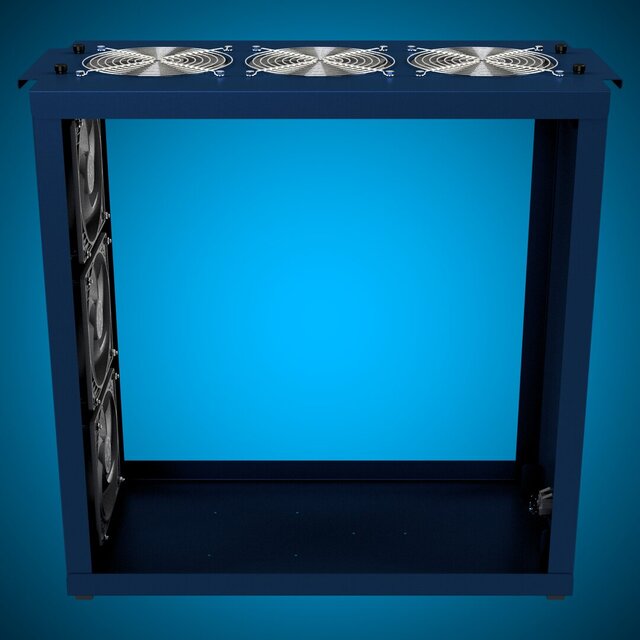

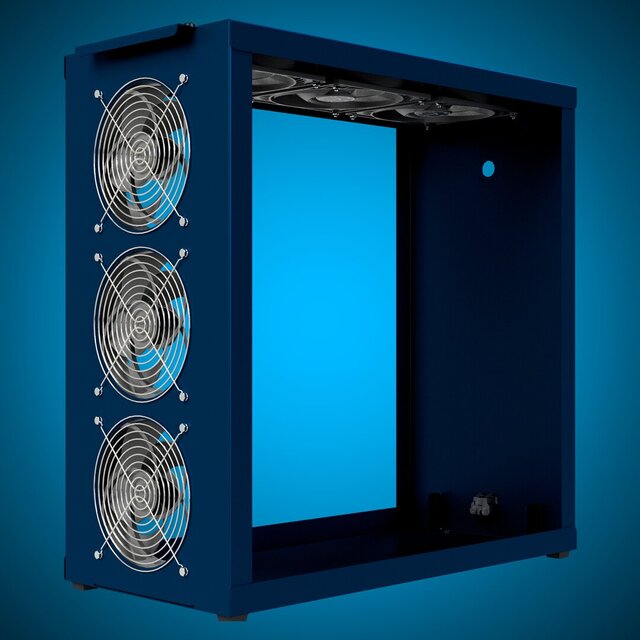

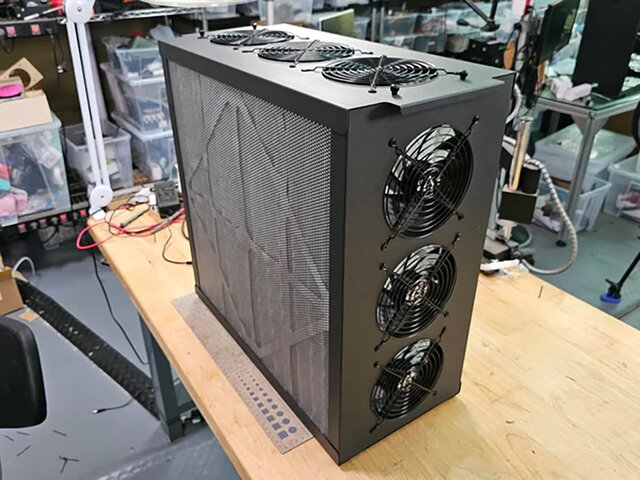

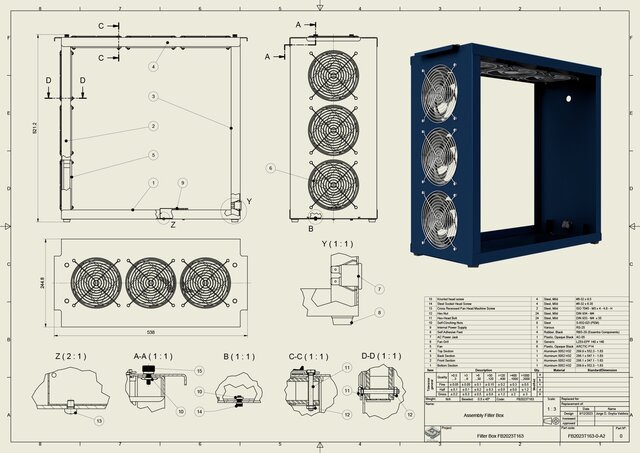

Air Filter Cabinet with PC Fans, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches distributed across different planes within a master part file, serving as the foundational geometry for all components and sub-assemblies throughout the model. The system features a robust metal enclosure with three side-mounted cooling fans with protective grilles and top-mounted ventilation, combining air filtration elements with active air circulation using standard PC fans for easy replacement and wide availability. The parametric workflow ensures design consistency, facilitates modifications, and maintains precise relationships between all structural elements. Ideal for various applications, from industrial environments requiring air purification to protect machinery and worker health, to residential settings where enhanced indoor air quality promotes occupant well-being and comfort.
