FEED CHECK VALVE

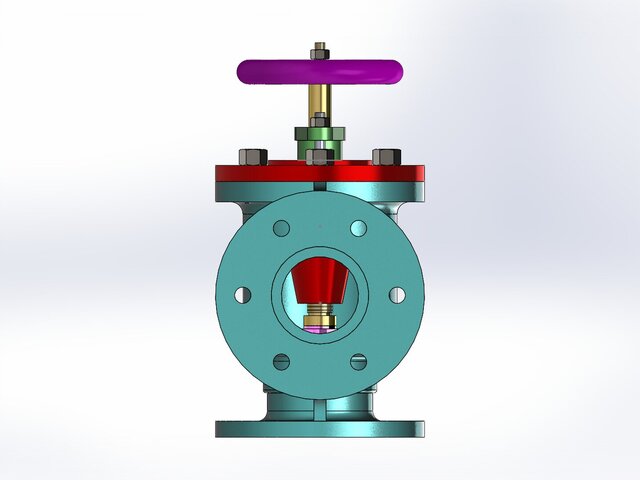

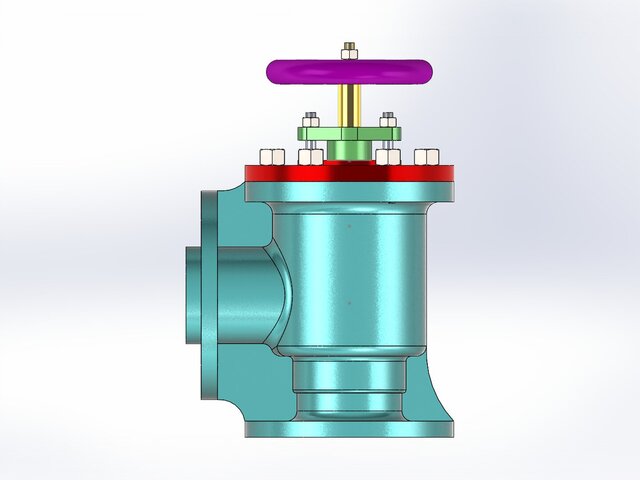

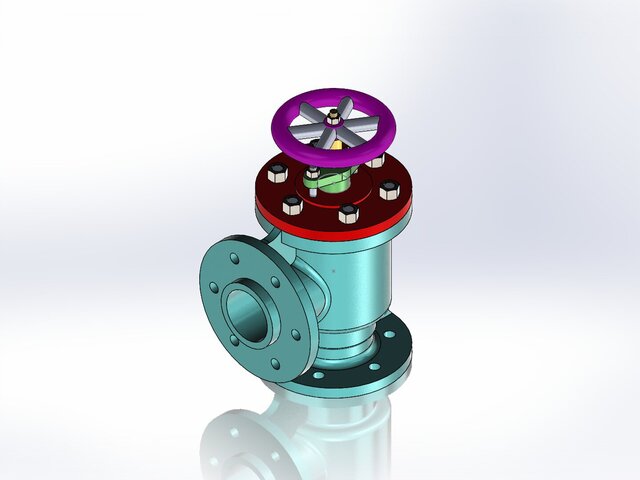

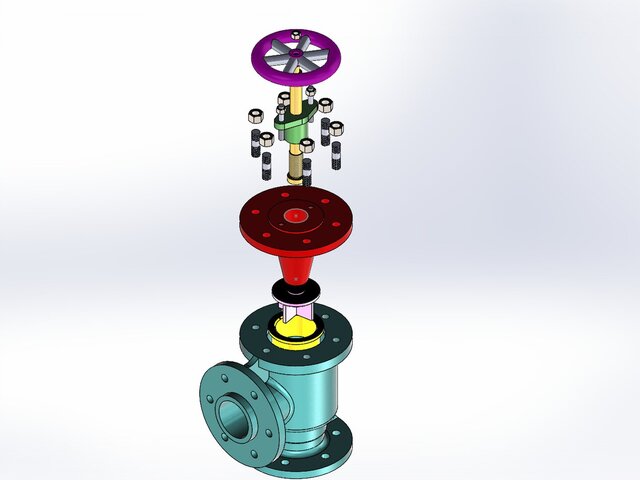

This 3D CAD model represents a flanged industrial valve assembly, featuring a vertically oriented valve body with a bolted top bonnet and handwheel-operated mechanism. The design incorporates multiple flanged connections for integration with industrial piping systems. The main components include: Valve body: Cylindrical pressure-containing housing designed to accommodate the internal flow-control mechanism. Side pipe flange: Provides the primary connection to an external piping system and incorporates multiple bolt holes for secure installation. Top bonnet/flange: Red-colored bolted connection used to secure the upper section of the valve and provide access to internal components during maintenance. Bolted joint: Multiple fasteners are arranged around the bonnet flange to provide uniform clamping force and maintain sealing integrity. Stem and actuator mechanism: The central vertical stem transfers rotational motion from the handwheel to the internal valve mechanism. Handwheel: Large circular actuator used for manual operation of the valve. Bottom flange/base: Provides structural support and an additional connection interface, with mounting holes for installation. Internal flow-control components: The visible upper mechanism represents the stem and associated valve operating components.
