FaultFinder — Intelligent Low-Voltage Grid Monitoring PCB

Report
Designed the complete PCB architecture for FaultFinder, a compact field-deployable device for real-time fault detection and localization on 240 V AC low-voltage distribution networks. Developed the high-speed analog front-end with a non-contact TMR current sensor, dual wireless connectivity, onboard AI signal processing, AC-DC power conversion, battery management, and protection circuitry. Designed entirely in KiCad, including detailed 3D modeling for connector alignment and mechanical integration.
Published
in PCB Design Services Electronic Prototyping and Design Services Electrical Circuit Design Services
pcb-design kicad lora analog-electronics ac-dc-design solar-charging batterypowered

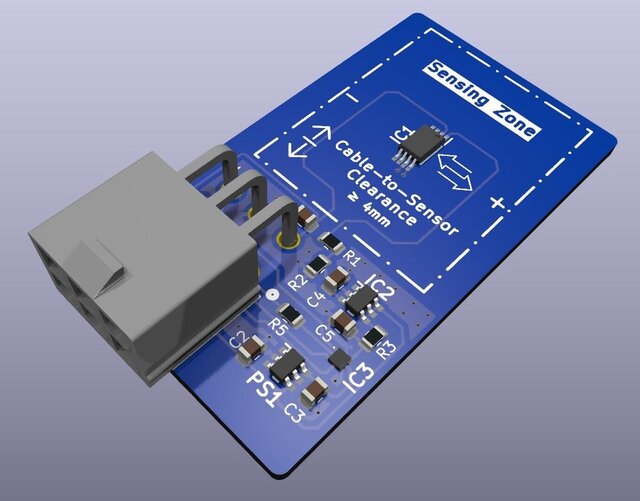

Rendering Images
