Dumbbell Storage Rack

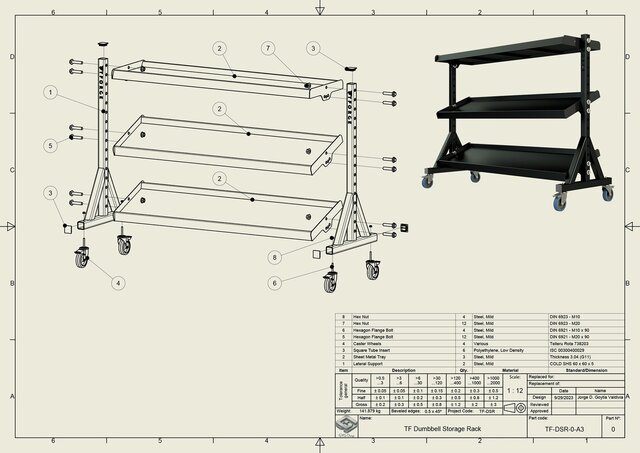

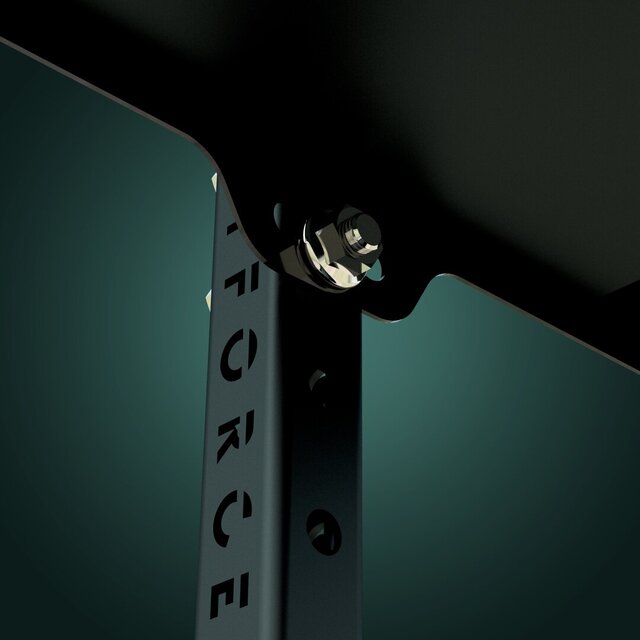

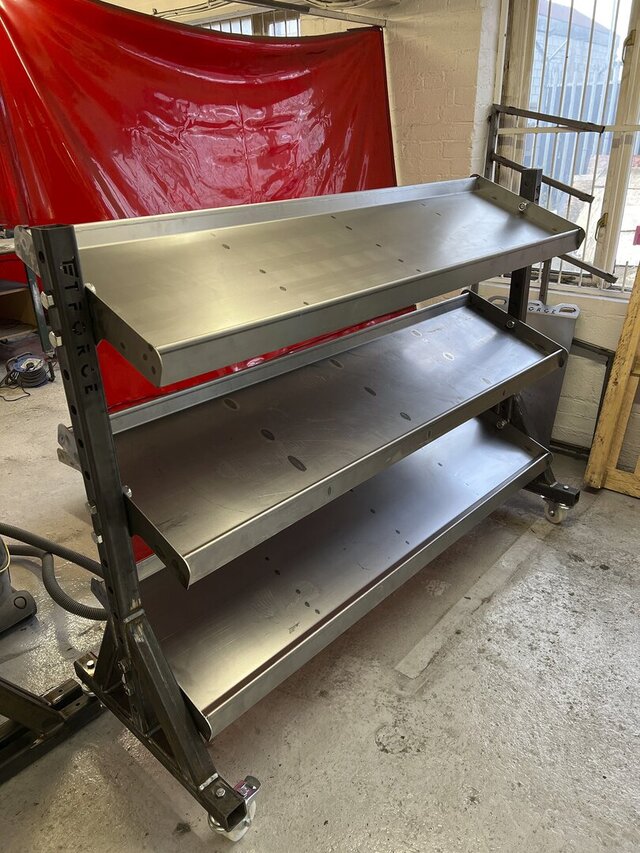

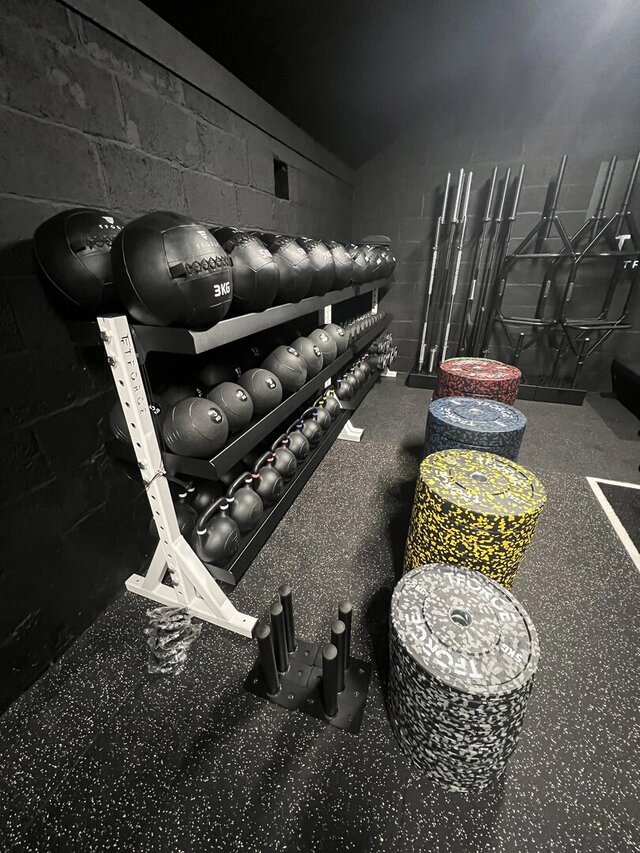

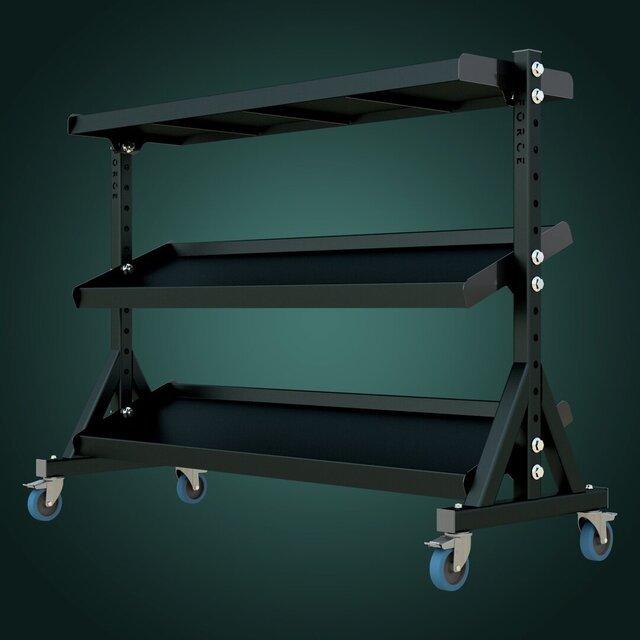

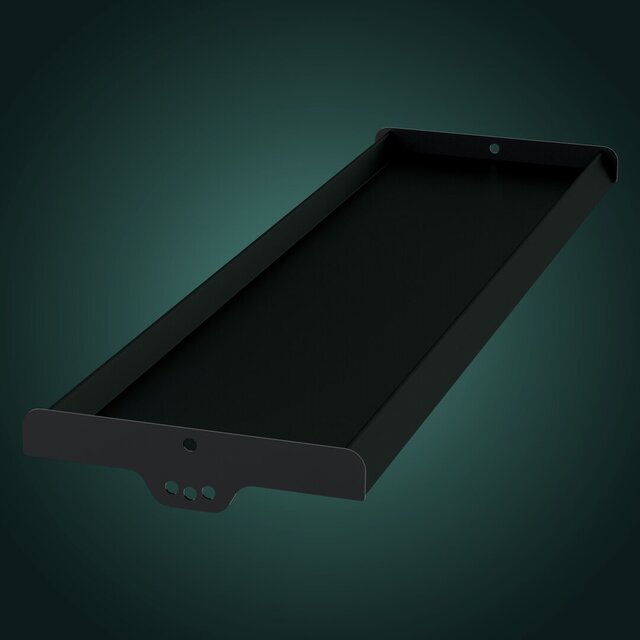

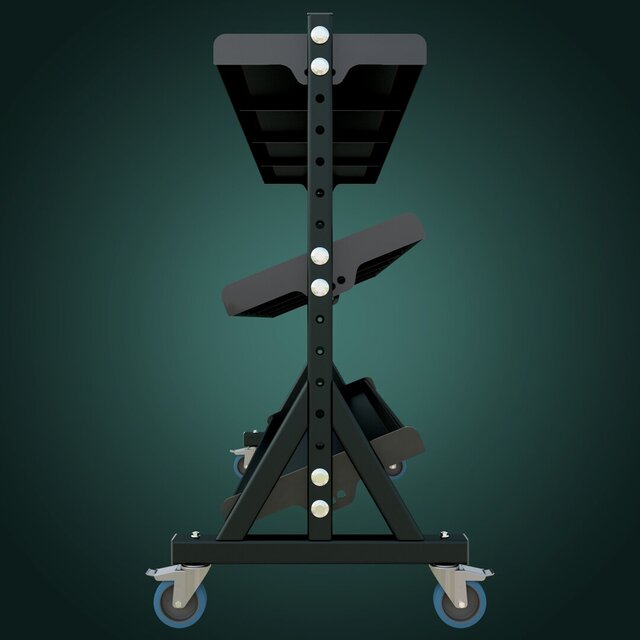

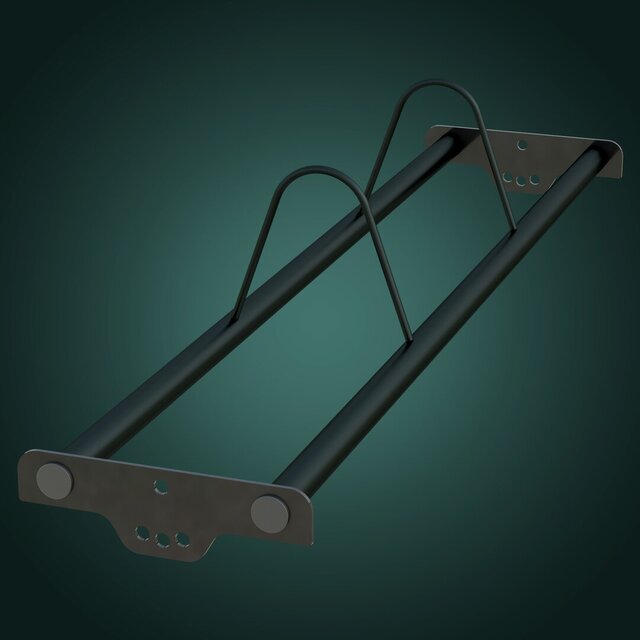

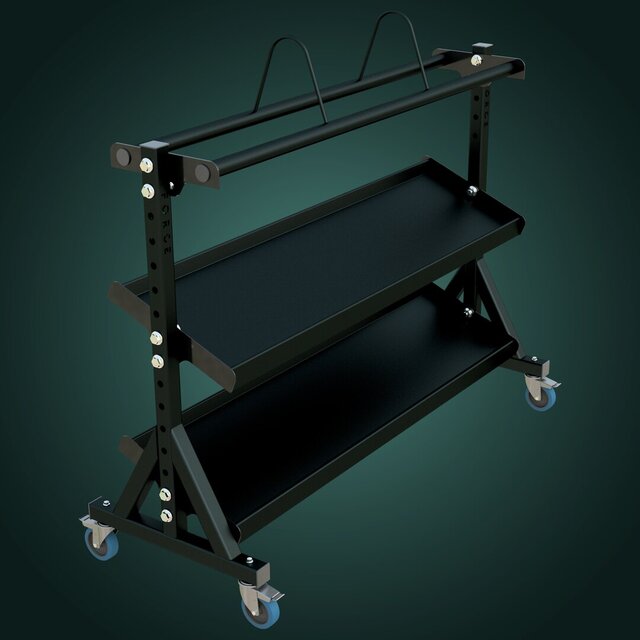

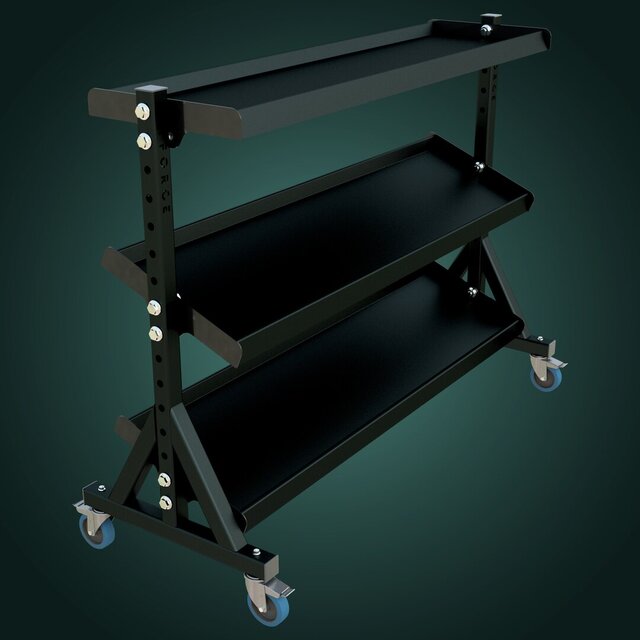

Design and 3D modeling for manufacturing of a Dumbbell Storage Rack for gym applications, developed using Autodesk Inventor. This professional-grade storage solution features a robust multi-tier frame with mobile caster wheels for easy repositioning. The design incorporates versatile mounting systems that allow different types of support brackets to be installed at various angles, providing flexibility for custom configurations and weight distribution requirements. Each shelf level can be adapted with alternative support structures including flat trays, angled holders, or specialized racks depending on specific storage needs. The parametric workflow in Inventor ensures design consistency, facilitates modifications, and maintains precise relationships between all structural elements. Essential for maintaining an organized gym environment, this rack extends dumbbell lifespan by preventing damage from clutter and friction while maximizing floor space through efficient vertical storage. Ideal for commercial fitness facilities, home gyms, and training centers requiring durable, adaptable equipment storage solutions.
