Double glazing curtain wall shopdrawing

Report

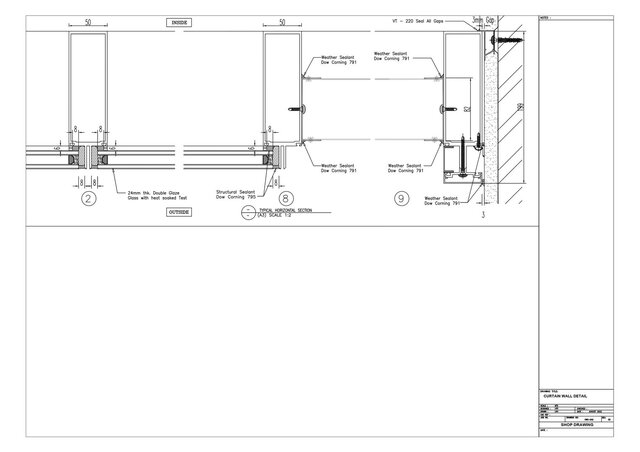

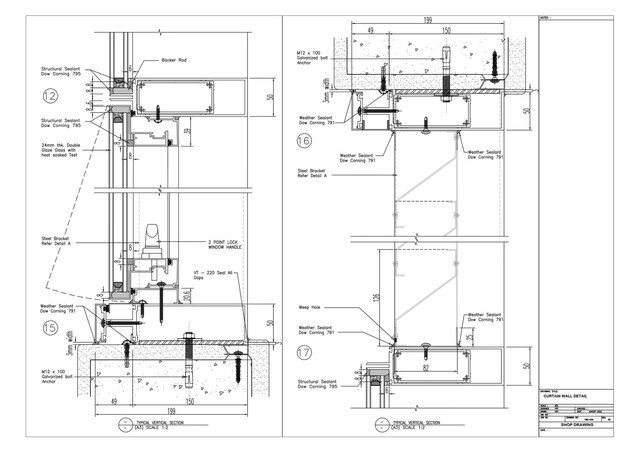

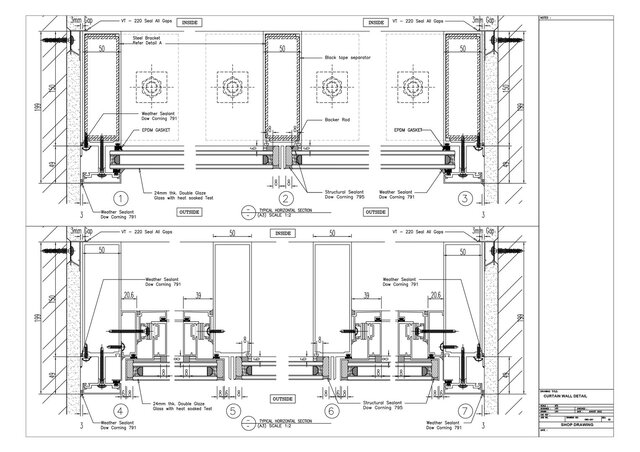

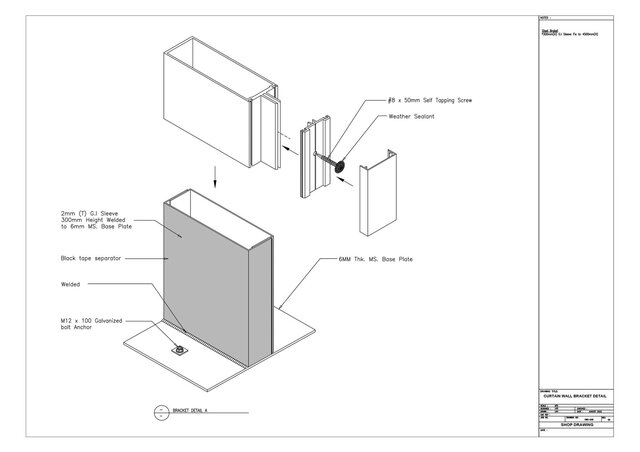

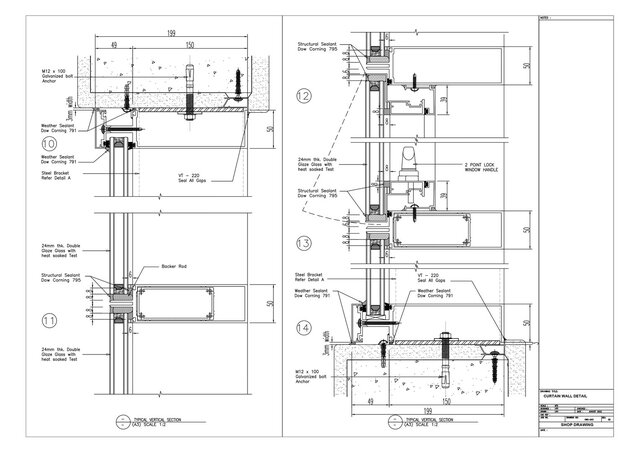

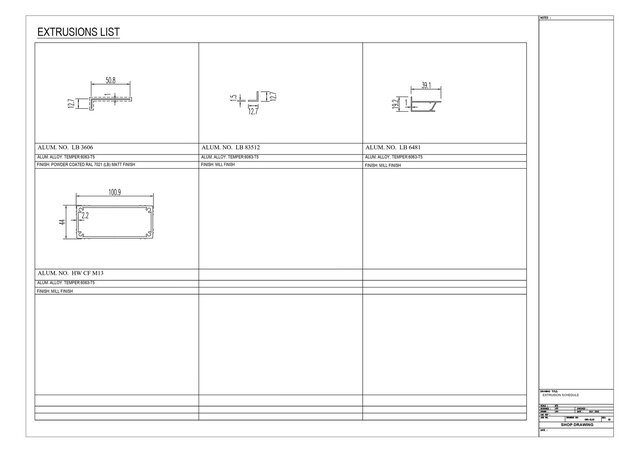

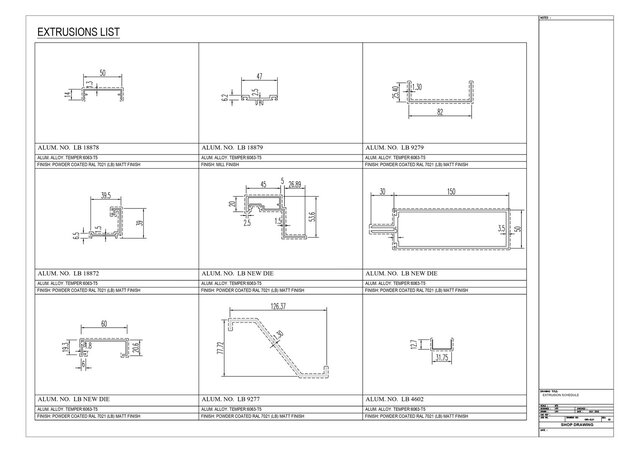

Design and drafting Double glazing curtain wall shopdrawing
Published
in 2D CAD Drafting Services 2D CAD Design Services
autocad drafting window double-glazing curtain-wall shopdrawing stickwall drafting-detail
Rendering Images
