Dispenser Enclosure: Sheet Metal

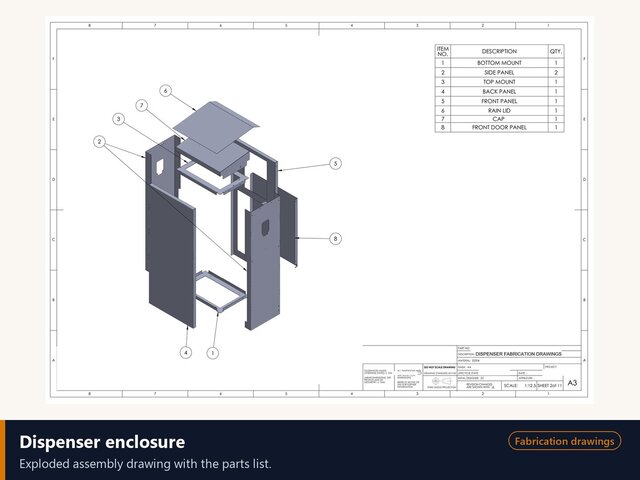

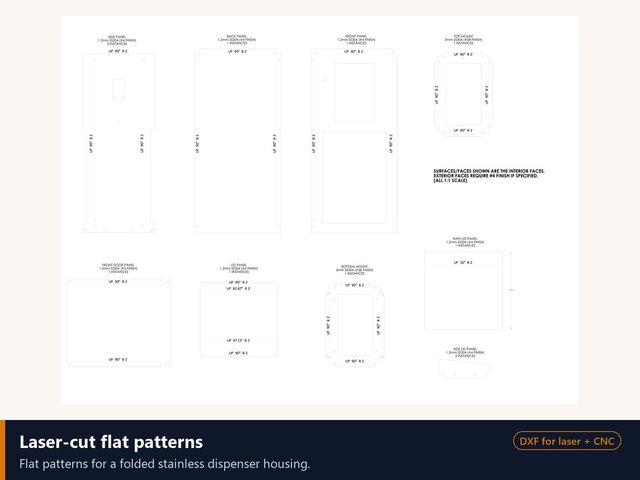

A folded 304 stainless enclosure for a site fuel dispenser. A riveted 3 mm frame carries 1.2 mm skin panels. I drew every panel as a flat pattern for laser cutting and folding. Structural rivets use 4.1 mm holes, and the removable service panels use 9 mm holes for nutserts. You get: a fabrication drawing pack (flat patterns, fold details and assembly) that a laser shop can quote and build from.
