DHX2 reverse engineering

Report

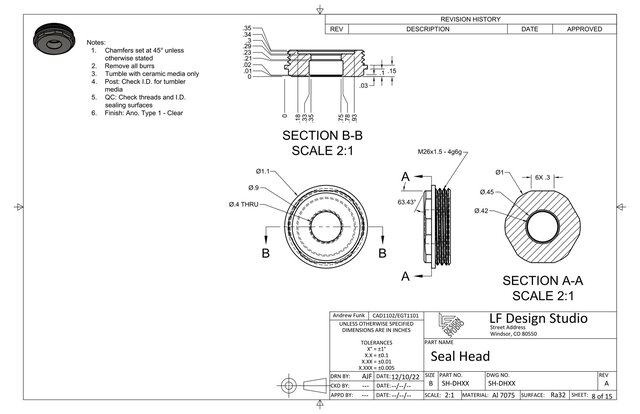

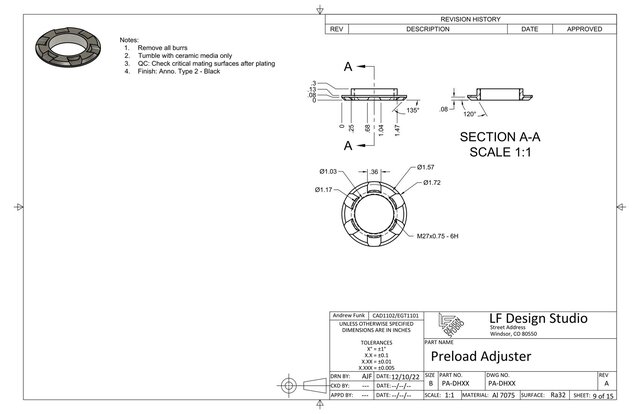

This is a Fusion 360 reverse engineering project I did of a Fox DHX2 mountain bike rear coil shock. I found the blueprints for the majority of it, and then 3D modeled it from there, complete with BOM and working drawings.
Published
in 3D Modeling 2D to 3D Conversion Services
autodesk-fusion-360 design-and-drawing fusion-360-design
Rendering Images 3D PDF Files
