Desk with shelving unit · assembly, exploded view and fabrication drawings

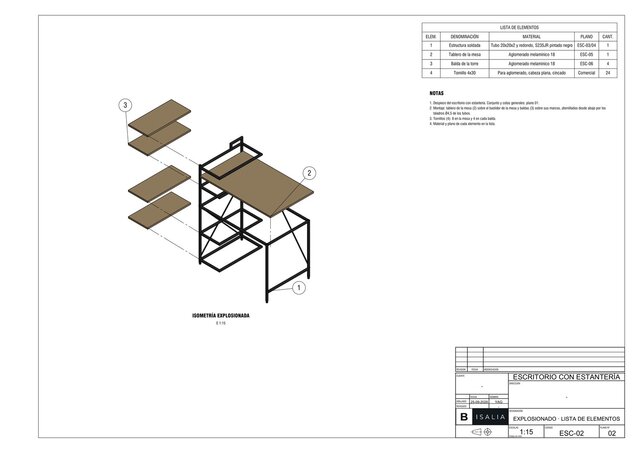

1000 by 600 by 1240 mm, with the desktop at 720. Welded tube structure and wooden boards: dimensioned assembly, exploded view with the item list, and the fabrication of the structure part by part, sixteen marks with their cutting angles and 14.29 metres of tube that come out of three six-metre bars.
furniture desk exploded-view welded-frame cutting-list
