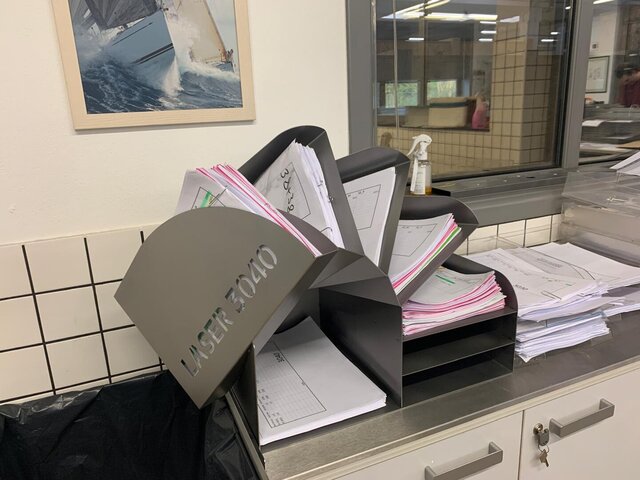

A4 Stainless Steel Shelf – Personal Design & Manual Production

Report

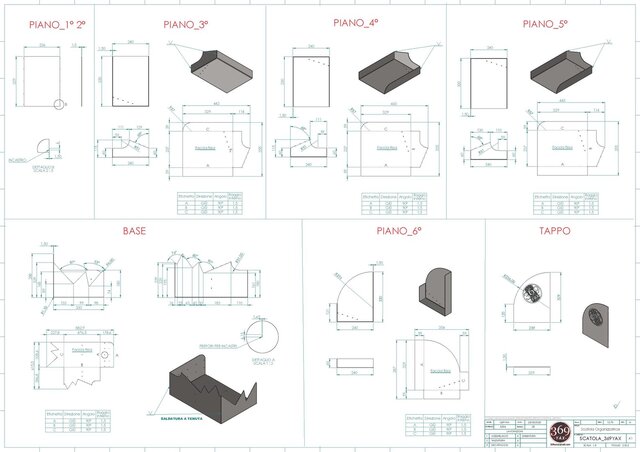

This is a custom-designed A4 stainless steel document shelf. I completed the full cycle: 3D modeling, technical drawings, flat pattern development, laser cutting, welding (TIG), and surface finishing. All steps were done by hand, except for bending. The project shows my ability to turn an idea into a real product with attention to detail and high-quality craftsmanship.
Published
in SolidWorks Design Services Sheet Metal Design 2D to 3D Modeling
solid-edge solid-works bom-and-exploded-view bending dxf auto-cad dwg sheet-laser pdf-dwg laser-curtting 3d-2d
Rendering Images
